DF/DF(P) types of multi-stage pump used for transmission of corrosive liquid with remperature range of -20ºC ~ 105ºC and non-solid particles.We will produce according to the gravity,density,working temperature and the suction pressure of the fluid.

Nomenclature:

DF155-30x5

DF means corrossion resistant multistage pump

155 means the design point of capacity of the pump is155 m3/h or 2580L/Min

30 means the design point of single-stage head is 30 m

5 means the pump stage is 5 which also means it has 5 impellers.

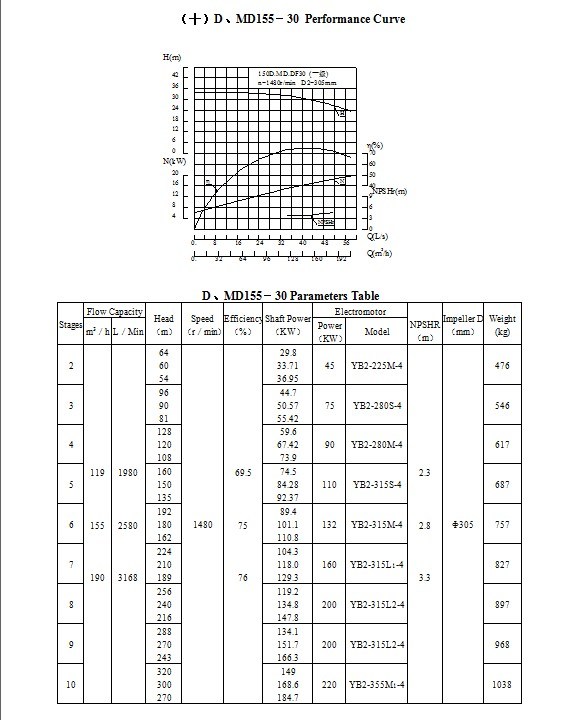

Performance table:



 Production process:

Casting + As-cast + CNC processing + Parts test (Vision inspection + Dimensional measurement + Impeller static equilibrium test) + Casings installation and pressure test + Rotor installation and dynamic balance test + Pump installation + mechanical seal test + Deflection tester for the coupling assembly + Test bed testing + Painting + Packing + Shipment


Our Service:
As a professnional manufacturer of multi-stage centrifugal pumps,we can produce different types of pump according to the applicaiton.We have D,DF,DY,MD,DG series of traditional multi-stage pump; D(P), DF(P), DY(P), MD(P) DG(P)series of self balancing multi-stage pump.
Usually D/D(P) types of multi-stage pump used for transmission of water free of solid particles and temperature below 80ºC, or similar physical and chemical liquid. Suitable for mining, mill and city water supply and drainage.

DF/DF(P) types of multi-stage pump used for transmission of corrosive liquid with remperature range of -20ºC ~ 105ºC and non-solid particles.We will produce according to the gravity,density,working temperature and the suction pressure of the fluid.

DY/DY(P) types of multi-stage pump used for transmission of non-solid oily liquid and petroleum product with temperature range of -20ºC ~ 105ºC and viscosity less than 120cst.

MD/MD(P) types of multi-stage pump used for transmission of neutral liquid from mining well or other similar liquid.The density and size of the particles of the sewage shall be less than 1.5% and 0.5mm respectively.The temperature range of the sewage shall be -20ºC ~ 80ºC.

DG/DG(P) types of multi-stage pump used for low and medium pressure hot water transmission,also named as boiler feed pump.Temperature ranges from -20ºC ~ 150ºC.
All the max. suction pressure shall be 0.6Mpa.

We can offer installation training for our distriction agent.

FAQ
Q1. What is your product range?
We also supply boiler water pump, Multistage centrifugal pump, clean water pump, sewage pump, chemical pump, oil pump, self priming pump, centrifugal submersible pump,  single stage pump, industry pump etc.

Q2. Are you a manufacturer?
Yes, we are a professional manufacturer of horizontal multistage pumps over 10 years.

Q3. What information should I let you know if I want to get a quotation?
Please let us know pump flow capacity, pump head, medium, medium temperature, pump material, quantity, we will recommend relevant product fit for your application.

Q4. Can you supply motor together?
Yes. We have cooperated factory. And most of the domestic customers require full set. But for foreign customers you can buy similar motor to avoid high custom duty if any.

Q5. What about your quality standard?
