GB/T 5657-2013 Technical specifications for centrifugal pumps ( Class Three)
JB/T 1051-2006 Multistage Centrifugal Pump-Types and Basic Parameters
GB/T13006-1991 Technical specifications for mixed and axial flow pumps
GB/T13007-2011 Centrifugal Pump Efficiency
MT/T114-2005 Multistage Pumps for Coal Mines
Application:
The Multistage mining dewatering pump is best applied in applications like these:
• Reverse Osmosis
• Boiler Feed
• Shower
• Spray
• Cogeneration
• Pressure Boosting
• High Pressure Cleaning
• Snow making
• Condensate
• Mine dewatering
Nomenclature:
DG45-80x6
DG means multistage centrifugal boiler feed pump
45 means the design point of capacity of the pump is 45 m3/h
80 means the design point of single-stage head is 80m
6 means the pump stage is 6 which also means it has 6 impellers.
Performance table:
DG45-80 series of centrifugal multistage pump can be 6~12 stages options with same flow capacities range(36 m3/h~62 m3/h) but different heads requirements(from 409m to 1003m)
capacity (m3/h) | Head (m) | Speed (r/min) | Efficiency (%) | Power (kw) | Motor | NPSHr (m) | Impeller Dia. (mm) | weight (kg) | Shaft Power (kw) |
| 36 | 502 | 2950 | 50 | 160 | Y315L1-2 | 3.9 | 260 | 113 | 98.4 |
| 45 | 480 | 55 | 4.0 | 107 | |||||
| 62 | 409 | 56 | 5.5 | 123.3 |
Work Flow Chart:
Casting + As-cast polishing & antirust paiting + CNC processing and antirust oil + Parts test (Vision inspection + Dimensional measurement + Impeller static equilibrium test) + Casing construction installation and pressure test + Rotor installation and dynamic balance test + Pump installation + mechanical seal test + Deflection tester for the coupling assembly + Test bed testing + Painting + Packing + Shipment
OEM Services:
According to the installation condition we can OEM
1.Shaft extention end to the outlet end which the regular design is at the inlet end.
2.Suction nozzle to the different direction:right ,left or radial(same as DG series)
3.Flange according to different standard:DIN,JIS,ANSI & GB/T9113-2010
4.Parts materials options:cast iron,ductile iron,carbon steel,stainless steel etc.
We trust we can serve the abroad customers with very competitive price of our popular products with various applications ideal for high head water transportation.
Our advantages:
1. Well designed pump structures and over 20 years experience.
2. Strictly quality control under ISO9001:2008 and experienced professional workers.
3. A large water pump testing center, with more than 50 sets of dynamic and static balance measuring instruments, hardness testers, surface treatment equipments, automatic argon arc welding machines, large vertical lathes, large grinding machines, intelligent high precision CNC machine tools and other advanced production testing equipments homemade or imported.
4. Plenty of spare parts in stock and large production capacity so we can make sure fast delivery.
5. Professional sales team to provide courteous service at all times.
Package and Shipping:

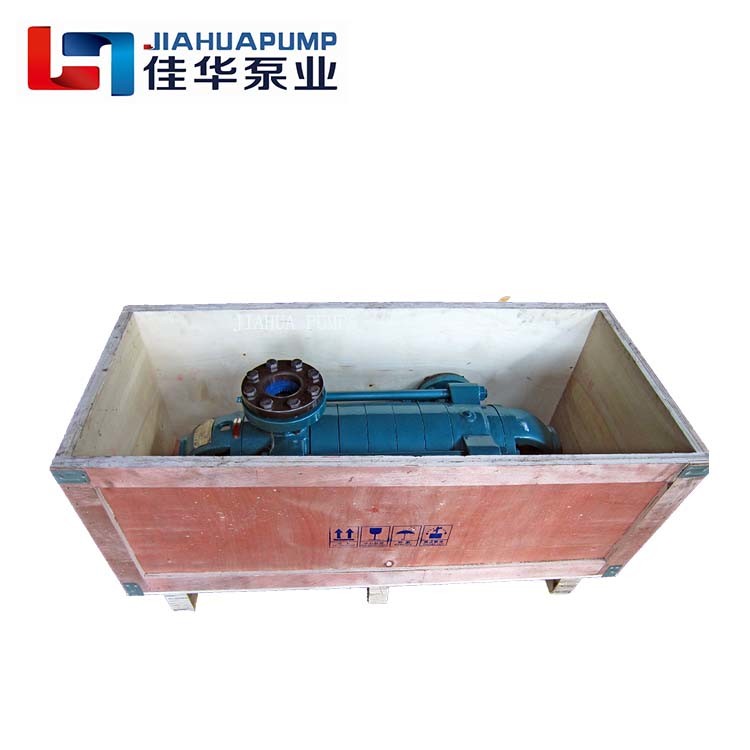

Packing of centrifugal multistage pump: Plywood case or as required.
Shipping: FCL/LCL
By truck,By train,By boat & By air
