High pressure water pump features
1.Diesel water pump uses high quality engine which produced by self, with excellent reliability.
2.Impeller in iron casting, Sealed with silicon carbon, High strength frame with shock pad inside.
3.CEC process technology make the rust resistance ability of frame to be improved significantly.
4.Easy to use, High flow capacity, steady operation, cost-effective, provide a full range of accessories.
Main parameter
| Model | DPH50/E | DPH50LE | DPH80LE | DPH80LE (Iron) | DPH80LE | DPH100/80LE |
| Engine Model | 178F | 186FA | 186FA | 188FB | 192FA | 192FA |
| Output Power (HP) | 6 | 10 | 10 | 12 | 13 | 13 |
| Displacement (cc) | 296 | 416 | 416 | 456 | 499 | 499 |
| Lube oil capacity (L) | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 |
| Discharge port Diameter mm(in) | 50/2" | 50/2" | 80/3" | 80/3" | 80/3" | In 100 Out 80 |
| Discharge head (m) | 70 | 90 | 65 | 80 | 100 | 60 |
| Suction head (m) | 8 | 8 | 7 | 8 | 8 | 8 |
| Discharge capacity (m³hr) | 30 | 35 | 60 | 47 | 42 | 90 |
| Fuel tank capacity (L) | 3.5 | 14 | 14 | 14 | 14 | 14 |
| Product Dimension (mm) | 560*450*560 | 640*470*710 | 640*470*710 | 640*470*710 | 640*470*710 | 640*470*710 |
| Net Weight | 58/68 | 80 | 79 | 89 | 93 | 96 |

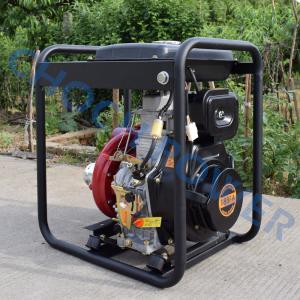

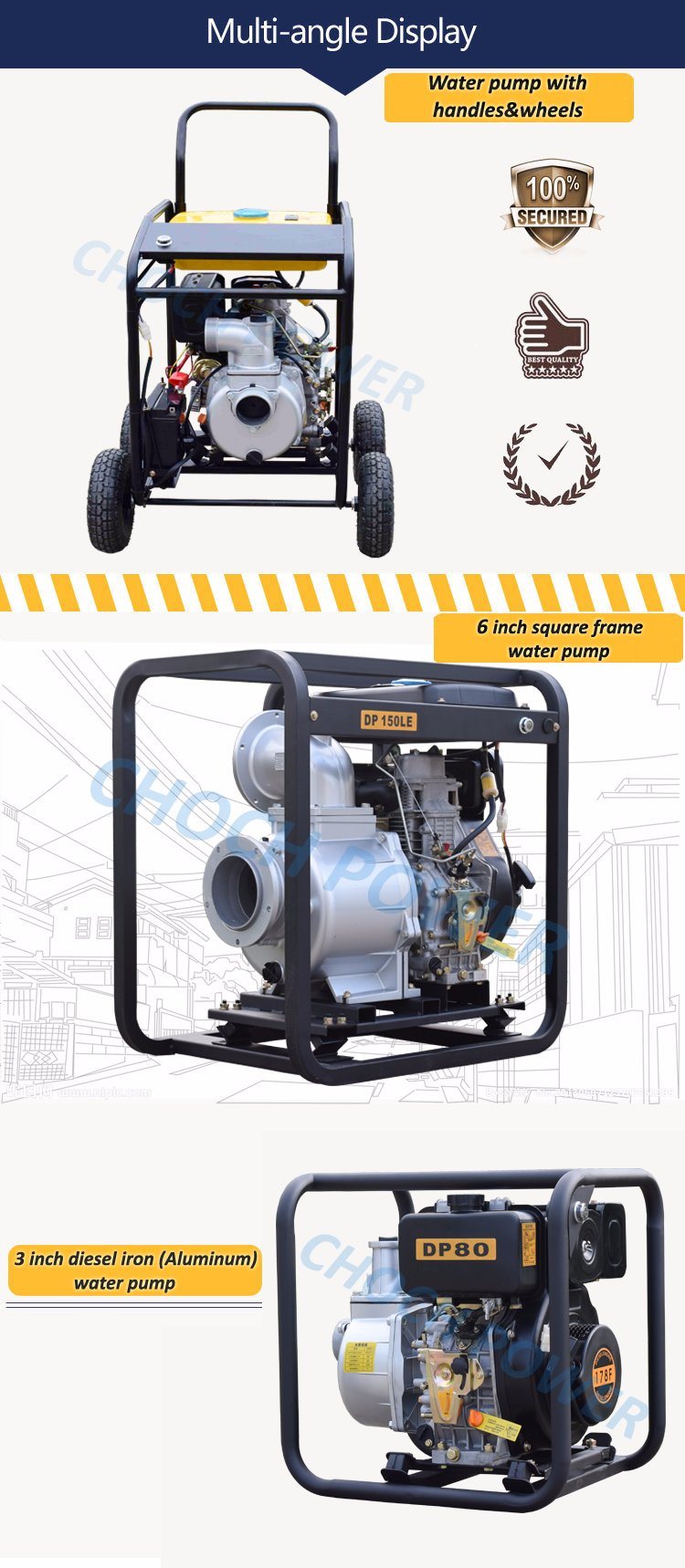

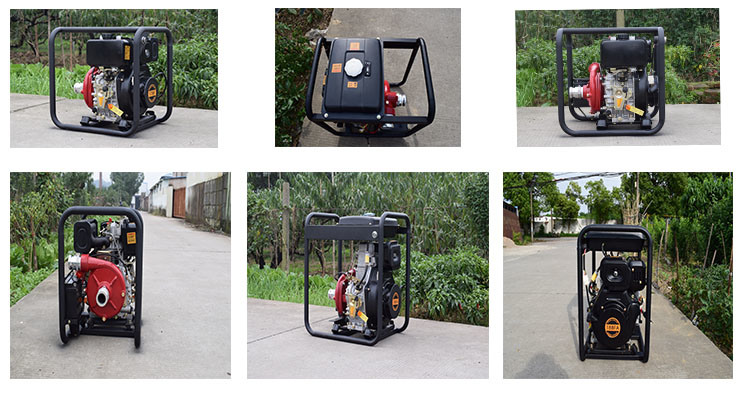

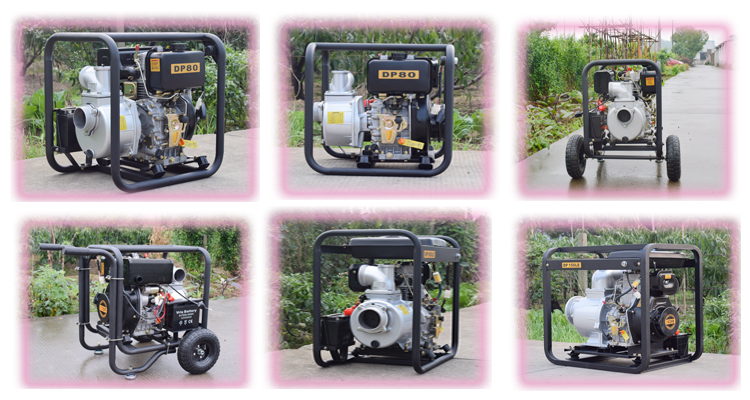

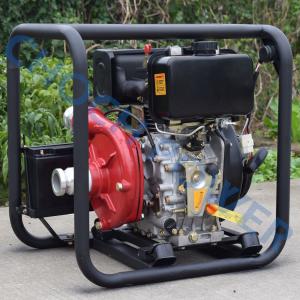

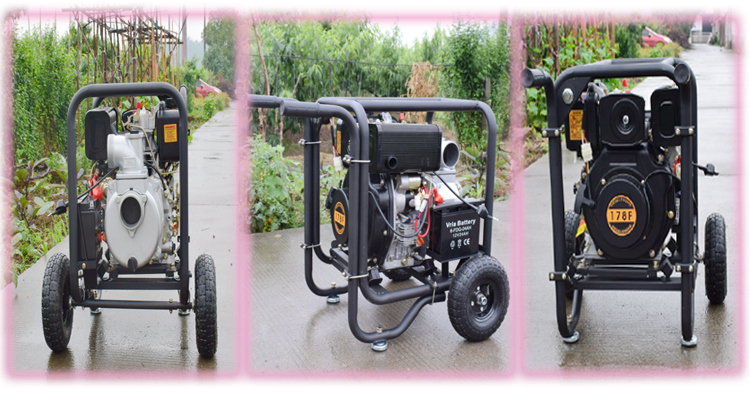

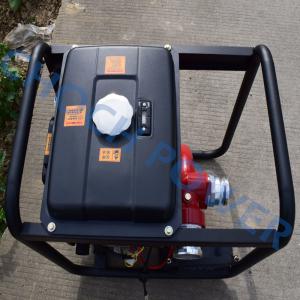

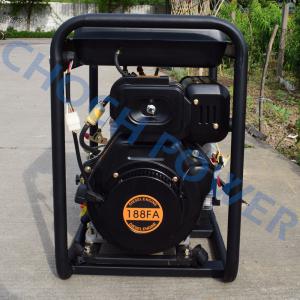

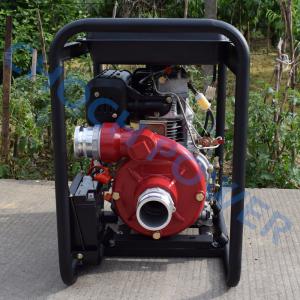

Photos show
High pressure pump Advantage
- Powered by air-cooled, 4-stroke diesel engine
- Large volume water discharge
- Highly effective mechanical seal
- Compact and light weight structure
- One year warranty
- high quality
- Aluminum alloy high pressure casting (Iron is avaliable )
- Full frame protection offers exceptional performance even in the toughest conditions
- Large fuel tank ensures hours of continuous running;
Wide application
F·A·Q
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We will be here 24 hours online that support after sale service.
4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
6.Payment term
30% deposit by T/T, 70% balance before shipment;
7.Shipping issue
Delivery time: 7-10 working days after receiving deposit; (depends on order )
Packing: package the goods neutral packing with professional export cartons, or wooden cases.
Our service
Company introduction
SHANGHAI CHOCH POWER EQUIPMENT CO.,LTD IS IN THE LAND SCRAPE SHORE OF EAST SEE OF CHINA----SALES DIVISION IN SHANGHAI, FACTORY IN WUXI CITY, IT IS A KEY BASE IN PRODUCING KINDS OF GENERATORS IN CHINA PRESENTLY, SPECIALIZED IN THE DEVELOPMENT, MANUFACTURING, IMPORTING AND DISTRIBUTION FOR GENERATING SETS UP TO 500 KVA, DIESEL ENGINES, DIESEL WATER PUMPS
AND HIGH PRESSURE WASHERS BOTH GASOLINE GENERATOR AND DIESEL GENERATOR POWERED.
CHOCH POWER HAS DEVELOPED A LARGE RANGE OF GENERATING SETS AND ENGINES,WATER PUMPS IN ORDER TO COVER ALL NEEDS FOR PROFESSIONAL AND CONSUMERS.
THE SHANGHAI COMPANY WAS FOUNDED IN 2016 , MANAGERIAL PHILOSOPHY OF COMPANY IS THAT "TAKE PERSON WITH ABILITY AS BASEMENT, DEVELOP AND TRY TO BE PRACTICAL, QUALITY FIRST, SERVICE INTENSIVE" AND THE SPIRIT OF ENTERPRISE THAT "HOLD TOGETHER AND INNOVATION, KEEP ON AGGRESSIVENESS, PURSUE SUPERIORITY", IT WILL MAKE THE COMPANY TO EXPLODE CONSTANTLY AND IS HAS PASSED ISO9001: 2000 QUALITY SYSTEM CERTIFICATION, CE.
