General Description
Square Frame for this generator, hot sale !
* Output :5-5.5kw
*Name Model: DG7500LE
*Frequency : 50HZ/60HZ;
*Single phase or three phase is optional;
*Light, compact, portable, easy to operate;
*Economical, low fuel consumption;
*Overload protection for safe running;
*Suitable for camping, lighting&small hand tools;
*Designed with 35mm square frame;
===============================================================================
Main Parameters
| Model | DG6500L/LE | DG7500L/LE | DG6500LE-3 | DG7500LE-3 |
| Engine Type | 186FA | 188FB | 186FA | 188FB |
| Output Power (HP) | 10 | 12 | 10 | 12 |
| Displacement (CC) | 416 | 456 | 416 | 456 |
| Lube oil capacity (L) | 1.65 | 1.65 | 1.65 | 1.65 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 | 50/60 |
| Voltage (V) | 220 | 220 | 220/380 | 220/380 |
| Rated power/Max. Power (KVA) | 4.5-5 | 5-5.5 | 5.6-6.25 | 6.25-6.9 |
| Noise Level (A) | 95 | 95 | 95 | 95 |
| Fuel tank capacity (L) | 14 | 14 | 14 | 14 |
| Continuous operating time (HR) | 6 | 5.5 | 6 | 5.5 |
| Product Dimension (MM) | 720*490*610 | 720*490*610 | 720*490*610 | 720*490*610 |
| N.G.(KG) | 118 | 120 | 118 | 120 |
=========================================================================================

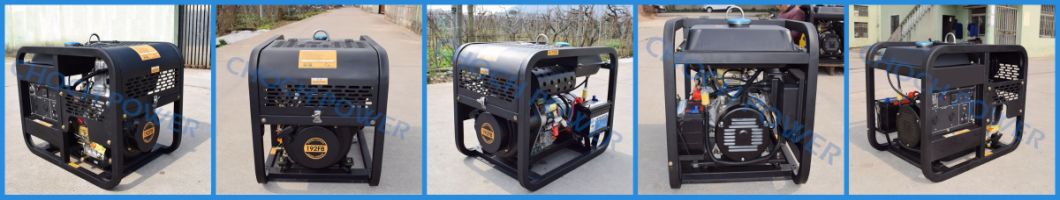

Machine Photos

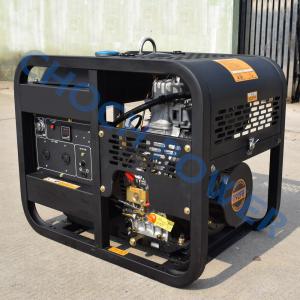

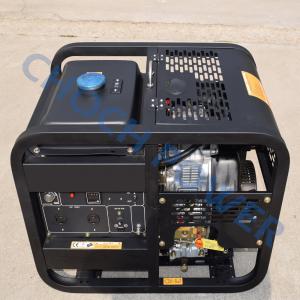

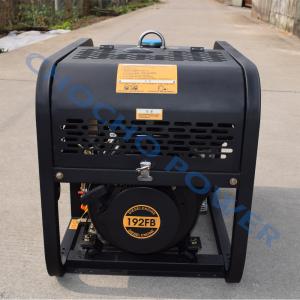

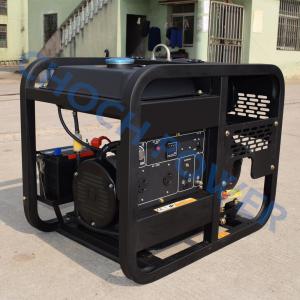

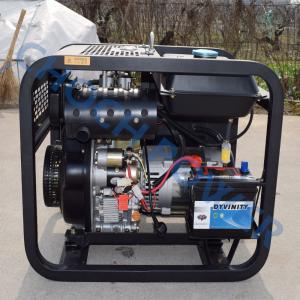

Machine

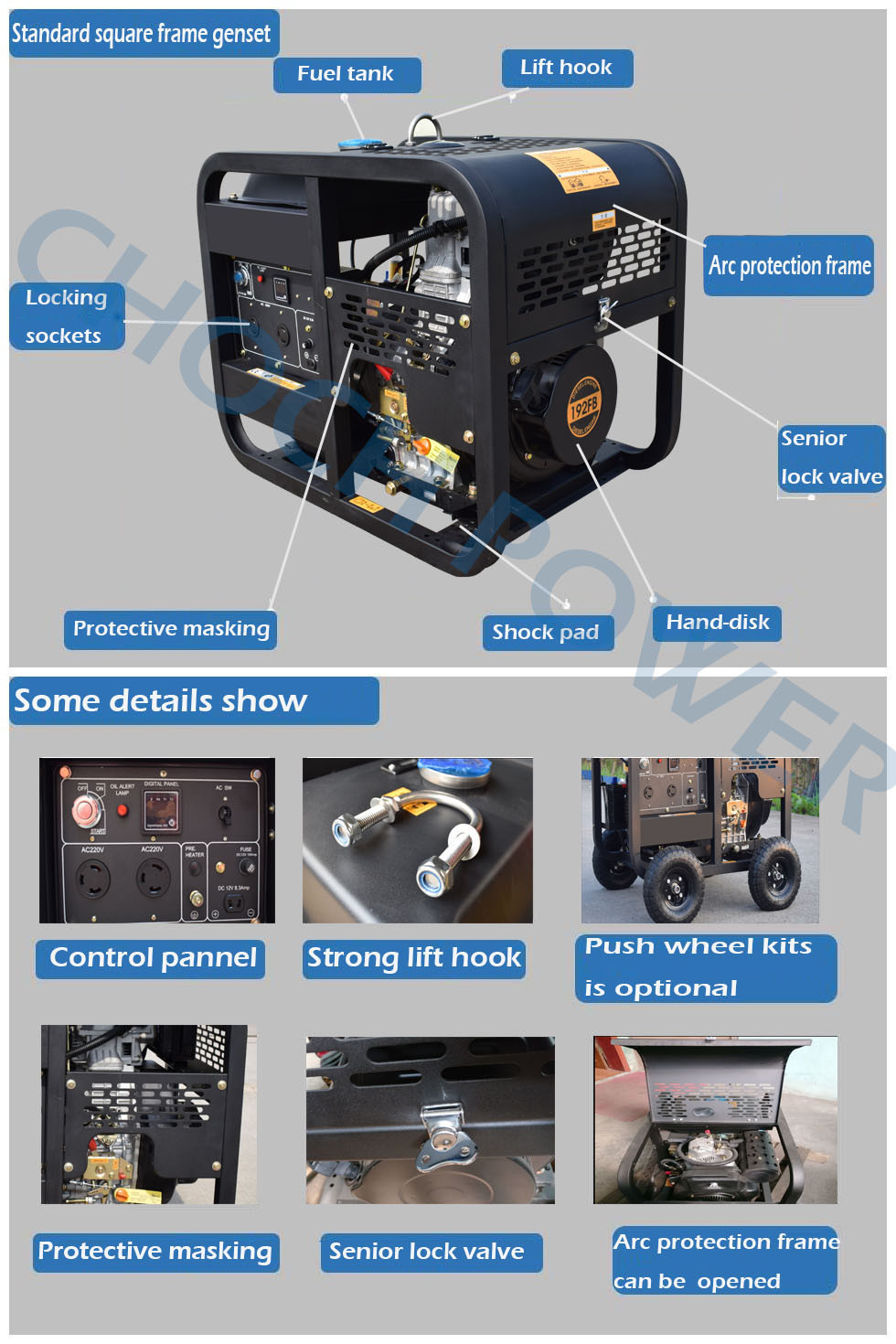

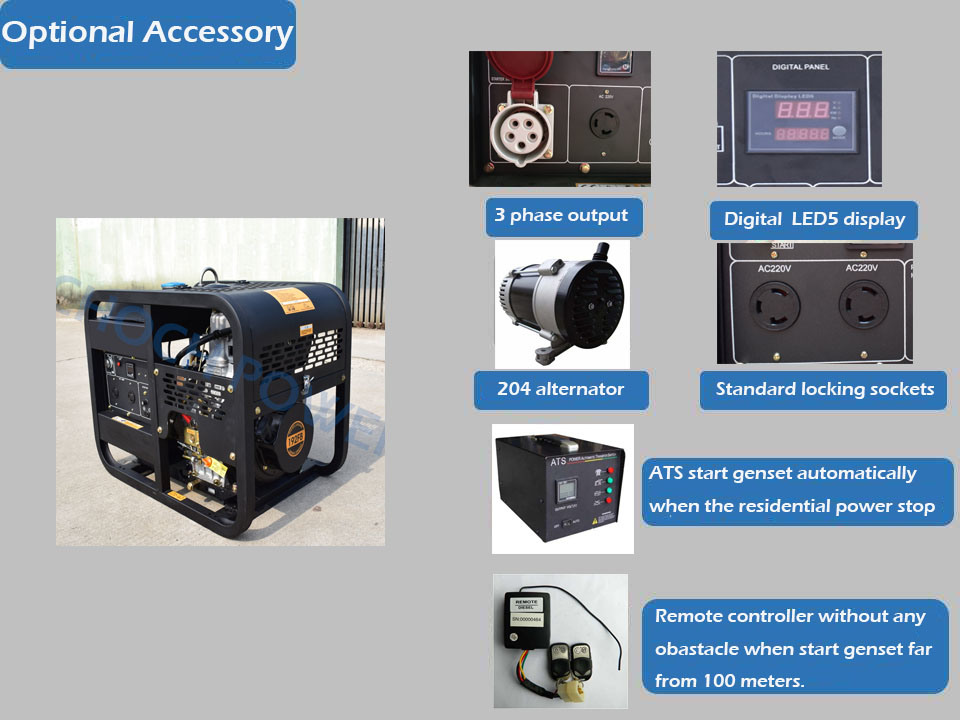

Detail optional parts show
Connecting details show
=========================================================================================
Diesel Generator advantage
1. Noise-reducing enclosure, made of high-efficient noise-proof material.
2. Ideal for home emergency use or as stand by power supply.
3. Large fuel tank, ensuring hours of continuous output.
4. Advanced direct fuel injection system.
5. Large muffler & air-cleaner, reducing exhaust and intake noise.
6. A variety of specially-designed control panels available for different markets.
7. With 35mm square frame, with unique design,large tensile strength and light weight.
===============================================================================
Main Characteristics
35MM Square frame design
With unique design, compared to round frame, it have the advantage of big tensile strength when happened something,also , it is with light weight, easy to operate and carry.
Low Noise Running
High effective combustion system ensures complete combustion, Besides, a large silencer dampens
exhaust noise and engine sounds which are contained by a double-wall structure and absorbed by a liner.
Digital Control Panel
All the control units of the generator sets are on one panel, a monitor of the panel will display the real-time
working data of the generator set such as its output voltage and current etc.
Besides, the running trouble of the generator will also be displayed on the panel.
The motor adopts silicon steel sheet of magnetoconductivity, control the temperature to be risen of the motor effectively, to make sure motor operation normally with long time.
Low Oil Alarm System
Before the oil level drops to the limited level, the generator set will stop automatically. The whole set can
be restarted only if the oil is refilled.
Best motor
The motor adopts silicon steel sheet of magnetoconductivity, control the temperature to be risen of the motor effectively, to make sure motor operation normally with long time.
Optimized of generator design, guarantee distortion rate less 5%, steady-state voltage deviation less 2%,voltage less 0.4% in cold and hot condition.
New Design
Adopt the lastest redesign, with soft&simple control pannel, solid frame structure, and AVR.
Power switch
Power switch protect the common power supply of generator, oil alarm system protect the normal operation of engine.
=========================================================================================

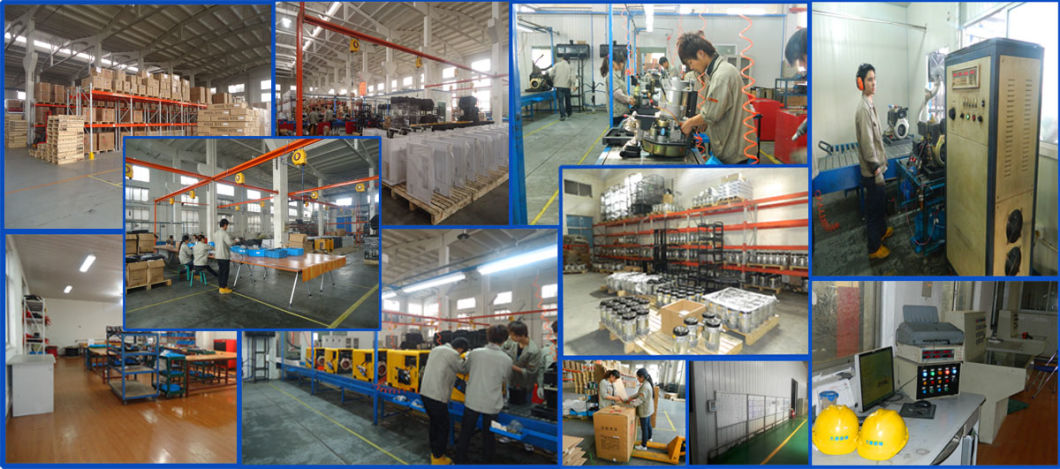

Production Line&Warehouse
=========================================================================================
We Are Here
=========================================================================================
F·A·Q1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We will be here 24 hours online that support after sale service.
4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
6.Payment term
30% deposit by T/T, 70% balance before shipment;
7.Shipping issue
Delivery time: 7-10 working days after receiving deposit; (depends on order )
Packing: package the goods neutral packing with professional export cartons, or wooden cases.
=========================================================================================
