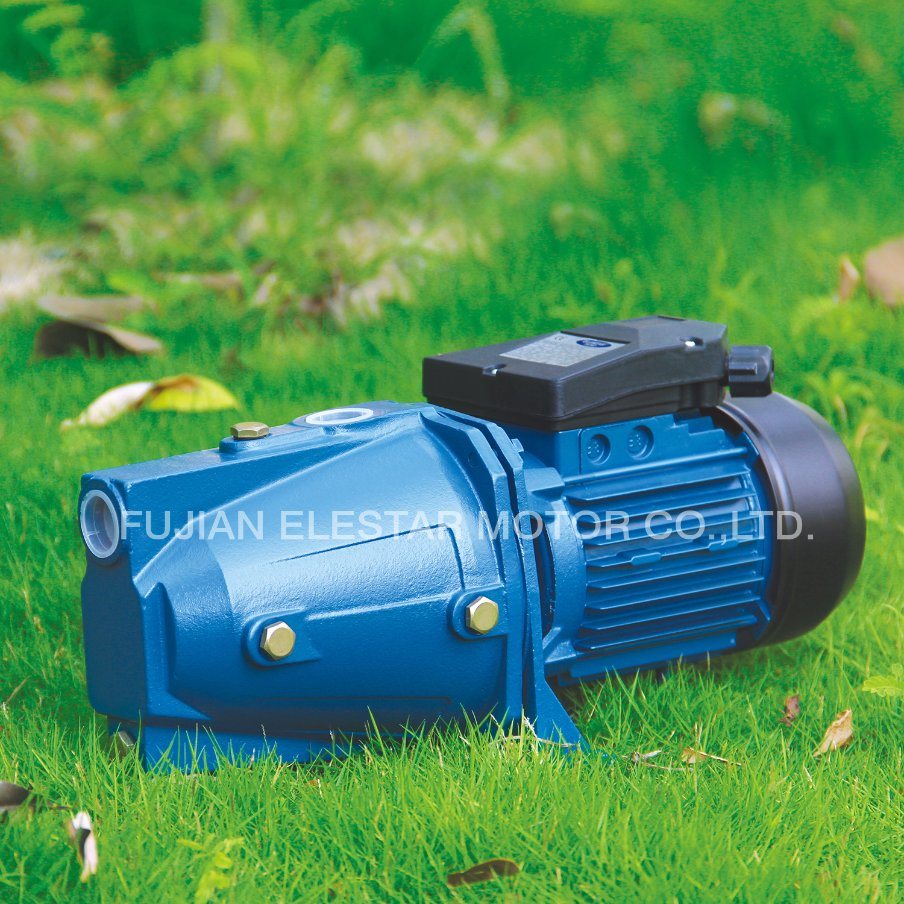

JET-LSeries Self-Priming Pump
JET-L series self-priming pumps are high efficient jet pumps with excellent suction even when there are air bubbles.The pump consists of a single impeller ,centrifugal pump and a jet pipe with a nozzle.The series pumps are particularly suitable for water supplying in domestic installations,small-scale agriculture watering and where self-priming operation is demanded.
PUMP CONSTRUCT
PUMP
Pump body: Cast Iron
Impeller: Brass/P.P.O/Stainless Steel
Mechanical seal: Carbon/Ceramic/Stainless Steel
MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Stianless Steel
Insulation: Class B/ Class F
Portecion: IP44/IP54
Cooling: External Ventilatio
PERFOMANCE
FACTORY PICTURES
JET-L series self-priming pumps are high efficient jet pumps with excellent suction even when there are air bubbles.The pump consists of a single impeller ,centrifugal pump and a jet pipe with a nozzle.The series pumps are particularly suitable for water supplying in domestic installations,small-scale agriculture watering and where self-priming operation is demanded.
PUMP CONSTRUCT
PUMP
Pump body: Cast Iron
Impeller: Brass/P.P.O/Stainless Steel
Mechanical seal: Carbon/Ceramic/Stainless Steel
MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Stianless Steel
Insulation: Class B/ Class F
Portecion: IP44/IP54
Cooling: External Ventilatio

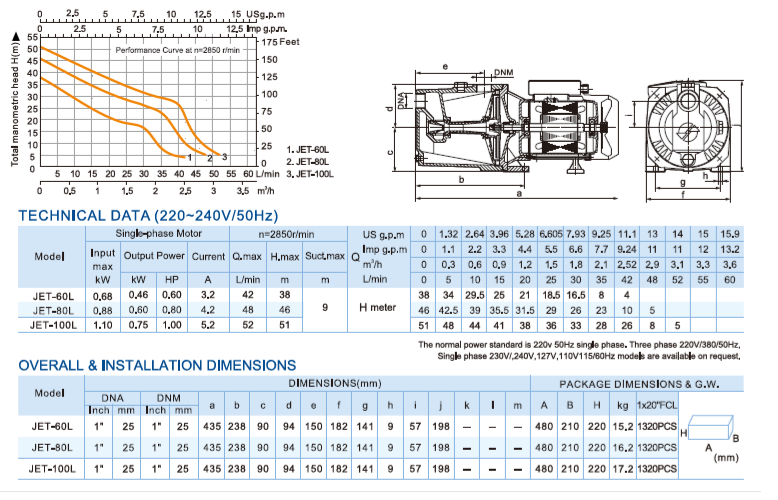

PERFOMANCE
| Model | Power | Max.Flow | Max.Head | Max.suct | In/out let | Packing Size | |
| kw | hp | l/min | m | m | inch | mm | |
| JET-60L | 0.46 | 0.60 | 42 | 38 | 9 | 1*1'' | 475*210*220 |
| JET-80L | 0.60 | 0.80 | 48 | 46 | |||
| JET-100L | 0.75 | 1.00 | 52 | 51 |
TECHNICAL DATA(220-240V/50HZ)
According to ISO9001:2008 quality management system, Elestar is provided with advanced inspection equipments and perfect product quality management system.
According to ISO9001:2008 quality management system, Elestar is provided with advanced inspection equipments and perfect product quality management system.
FACTORY PICTURES
Delivery Goods
FAQ Details
A: 100PCS
1.Q: What is your MOQ of this item?
A: 100PCS
1.Q: What is your MOQ of this item?
2.Q: What is the delivery time?
A: 30-45 days after receiving orginal L/C or deposit by TT.
3.Q: Is it all right to make customer's own brand name?
A: Yes we supply OEM service. Please send us a authorization doc.
4.Q: Where is your Loading Port?
A: Fuzhou, Fujian, China Port.
5.Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
6.Q: What is your company's available production capacity?
A: 50000~60000 pieces of pump per month.
A: 30-45 days after receiving orginal L/C or deposit by TT.
3.Q: Is it all right to make customer's own brand name?
A: Yes we supply OEM service. Please send us a authorization doc.
4.Q: Where is your Loading Port?
A: Fuzhou, Fujian, China Port.
5.Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
6.Q: What is your company's available production capacity?
A: 50000~60000 pieces of pump per month.
