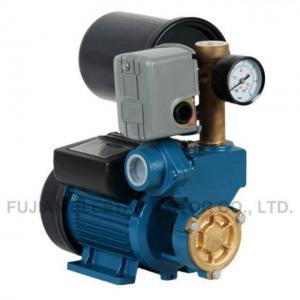

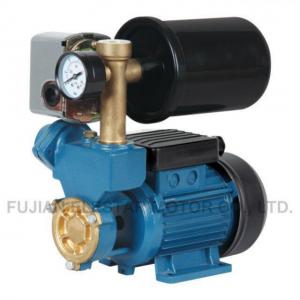

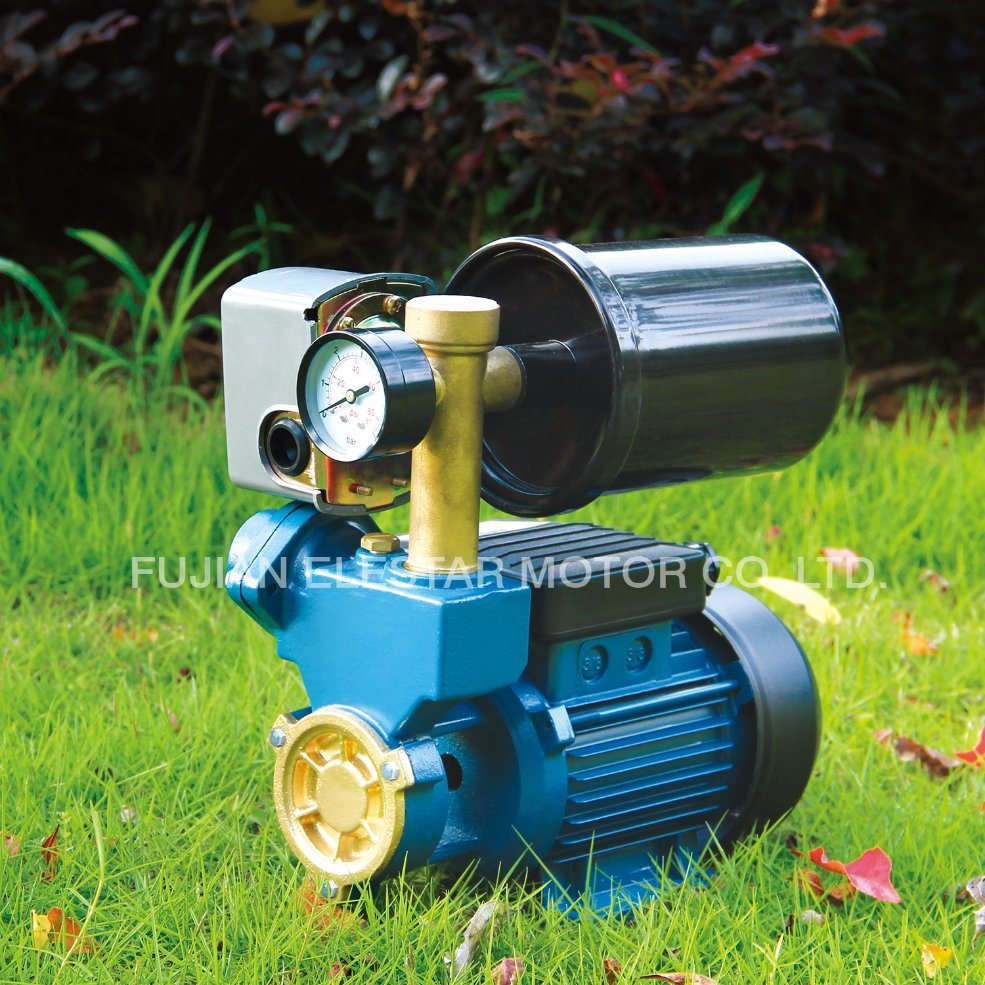

WZ series self-suction water pumps are new designed high efficiency house-hold electric pumps.with the motor and the pum mounted together.They are sealed with wear-resistant mechanical sealing,and carry the merits of easy to operate,light weight,high efficiency and relative low consumption of power .
Wz series pumps have self-sucking function,which makes it better used in places that pumping clean water ,and request intermission kind of working.but without refilling the water from each restarting of the pumps.
PUMP CONSTRUCT
PUMP
Pump body: Cast Iron
Impeller: Brass/P.P.O
Mechanical seal: Carbon/Ceramic/Stainless Steel
MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing: Steel-plate
Shaft: Stianless Steel
Insulation: Class B/ Class F
Portecion: IP44/IP54
Cooling: External Ventilatio

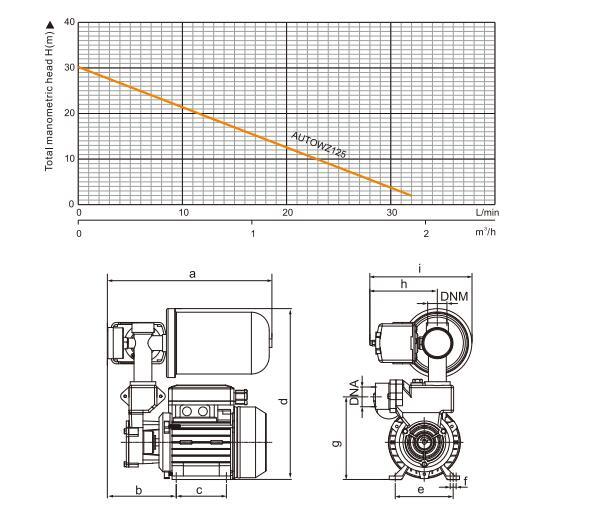

TECHNICAL DATA
According to ISO9001:2008 quality management system, Elestar is provided with advanced inspection equipments and perfect product quality management system.
| MODEL | INPUT MAX | OUTPUT POWER | CURRENT | Q.MAX | H.MAX | SUCT.MAX | DNA/DNM |
| AUWZ-125 | 0.55 KW | 0.5HP/0.37KW | 1.8A | 32L/MIN | 30M | 9M | 1" /25mm |

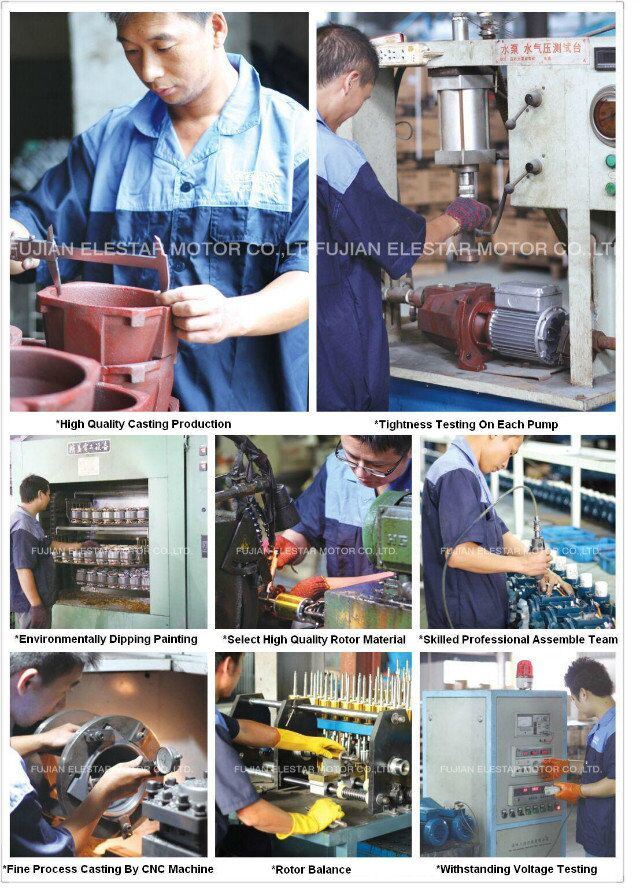

FACTORY PICTURES

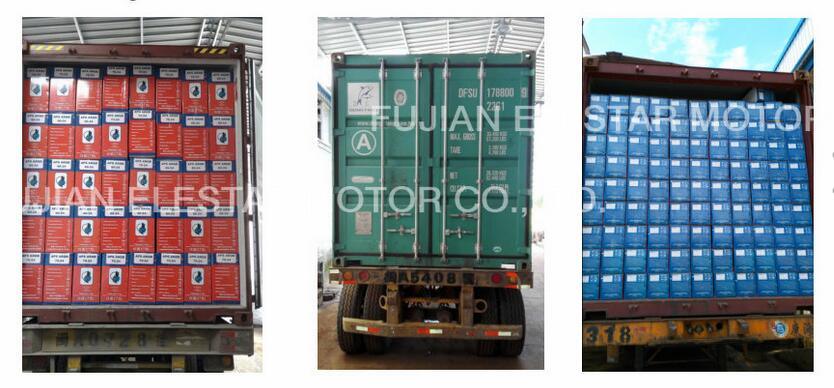

Delivery Goods
FAQ Details
1.Q: What is your MOQ of this item?
A: 100PCS
2.Q: What is the delivery time?
A: 30-45 days after receiving orginal L/C or deposit by TT.
3.Q: Is it all right to make customer's own brand name?
A: Yes we supply OEM service. Please send us a authorization doc.
4.Q: Where is your Loading Port?
A: Fuzhou, Fujian, China Port.
5.Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
6.Q: What is your company's available production capacity?
A: 50000~60000 pieces of pump per month.
Certificate

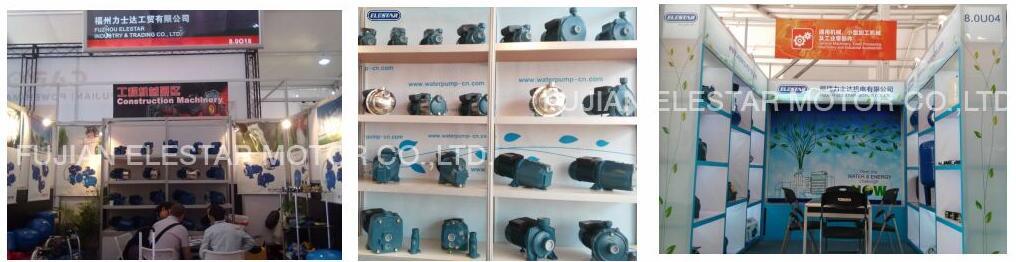

China Import And Export Fair (Canton Fair) Info
Our Contact Way
David Zhang
Fujian Elestar Motor Co.,Ltd.
Add: Fuan City,Fujian Province,China.
Http://www.waterpump-cn.com
Mob: 0086-18650386683
China
