2xz Spiral Slice Rotary Vane Vacuum Pump

CHINA AOLI MACHINERY GROUP2XZ vacuum pump is of double-stage direct coupling structure, whose operation performance consists of high-pressure stage and low-pressure stage. Its suction port connects vacuum equipment and helps to intake or drain the ga

Technical Feature

  • Get Latest Price
  • 1 Piece
  • 10000PCS/Year
  • Wooden Case
  • L/C, T/T
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Trademark
AOLI
Origin
China
Specification
SGS, ISO9001

DETAIL DESCRIPTION

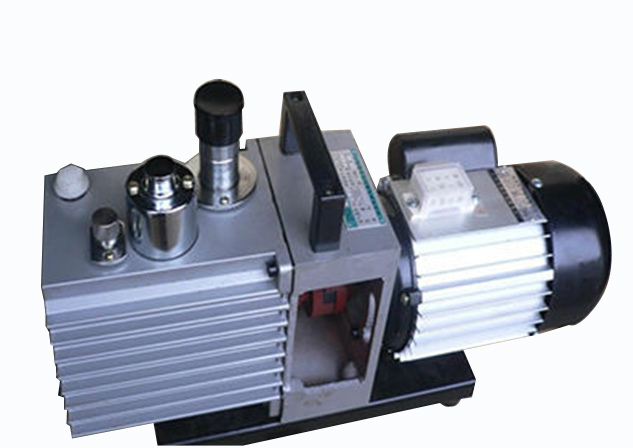

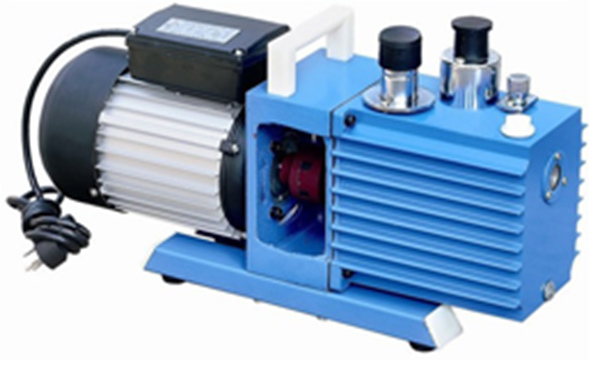

2xz Spiral Slice Rotary Vane Vacuum Pump
CHINA AOLI MACHINERY GROUP
2XZ vacuum pump is of double-stage direct coupling structure, whose operation performance consists of high-pressure stage and low-pressure stage. Its suction port connects vacuum equipment and helps to intake or drain the gas in the container during operation. When the equipment is in vacuum, the drain valve of high-pressure stage will close, then, the gas suctioned by high-pressure stage will be transferred to the second stage, later, the gas will be suctioned and drained through the second stage, so that the equipment can obtain certain vacuum. The technical parameter of the pump is 6*102.
2XZ vacuum pump is coupled with motor, which is high-speed and small and compact and convenient for flexible operation. Our company also manufactures special metal blade, which is to be used as the fore pump of diffusion pump, the accessory of accurate instruments or to be used in labs, pharmaceutical industry, food packing and electronic industry.

2XZ Direct Drive rotary Vane Vacuum Pumps Series
Application & Features
1. Small dimensions, low noise.
2. The big oil tank prevents the oil temperature from going up and delays the changing revolution of vacuum oil.
2xz Spiral Slice Rotary Vane Vacuum Pump
2xz Spiral Slice Rotary Vane Vacuum Pump

The data above is a part of our products,we can choose the perfect pump for you according to your requirements.



Please feel free to contact us if you have any question.



Contact Details:



David Song



Sales Manager



Tel: +86-21-39170017(direct), Fax: +86-21-39170010



Mob: +86-(0)13816987562



 Mode                                   2XZ- 0.5     2XZ-1         2XZ-2         2XZ-4         2XZ-8         2XZ-15
suction speed(L/S) 0.5 1 2 4 8 15
lowest pressure≤(Pa) 6.0×10 -2 6.0×10 -2 6.0×10 -2 6.0×10 -2 6.0×10 -2 6.0×10 -2
rotary speed(rpm) 1440 1440 1440 1440 1410 1420
motor powe(kw) 0.18 0.25 0.37 0.55 1.1 2.2
Size of suction port(mm) 16 16 25 25 40 40
