New good quality fluorine plastic centrifugal chemical pump

perfect pump for you according to your requirements.

Technical Feature

  • China
  • Aoli
  • 65FSB-32
  • Jet Pump
  • Single-stage Pump
  • Water
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~100

PRIMARY PARAMETERS

Place of Origin
China
Brand Name
Aoli
Model Number
65FSB-32
Theory
Jet Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Electric
Pressure
Low Pressure
Application
chemical fluid processing

DETAIL DESCRIPTION

CHINA AOLI MACHINERY GROUP

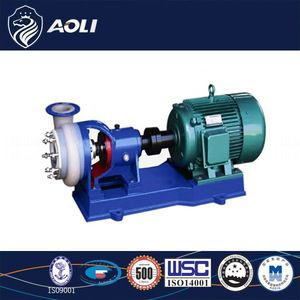

New good quality fluorine plastic centrifugal chemical pump

Features:

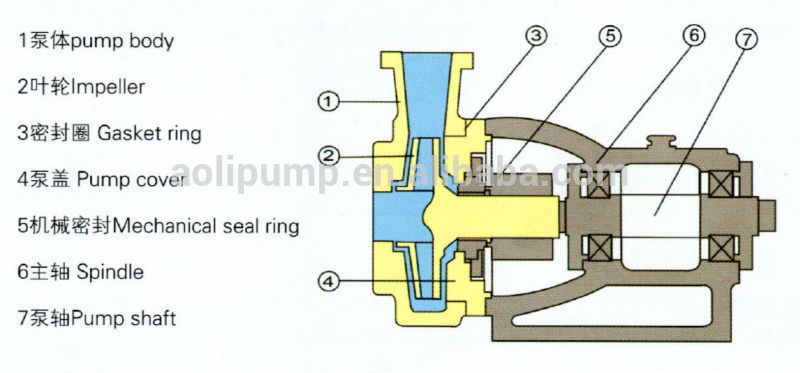

FSB Chemical pump
1) Pump body: embedded with one steel flange ring at the connection on left and right,
made of molded plastic alloy
2) Impeller: metal shaft molded by fine machined quality steel coated with plastic
alloy, the wetted parts are plastic alloy
3) Mechanical seal: use WB2 and ST waterless adjustable end face seal technology,
the material is silicon carbide, aluminum oxide ceramics, packing PTFE and graphite

Application:
It is widely used in handling acidic and alkaline liquor, oxidizer and other corrosive
medium of various concentration in the fields of chemical, petroleum, pharmaceutical,
smelting, dyestuff, electroplating, and foodstuff.



The data above is a part of our products,we can choose the perfect pump for you according to your requirements.



Please feel free to contact us if you have any questions.



Contact Details:



David Song



Sales Manager



Tel: +86-21-39170017(direct), Fax: +86-21-39170010



Mob: +86-(0)13816987562



Skype:songdaizhi
