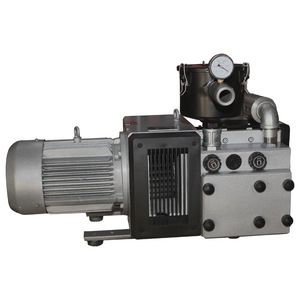

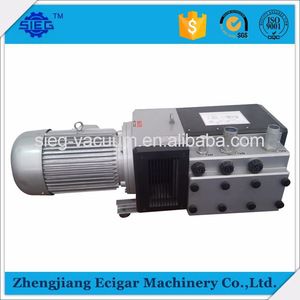

ZYBW...F dry running vacuum / pressure combined pump

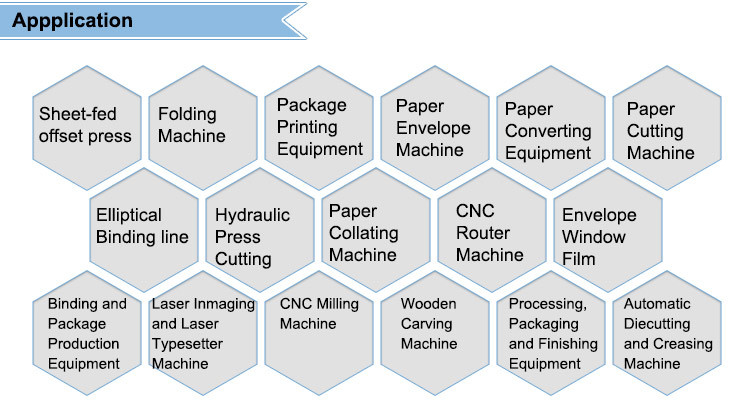

ZYBW...F type pump manufactured by means of the technology and standard introduced form Germany,has the function of using vacuum to suck air and exhausting the compressed air simultaneously. It also has the features of easy maintenance, clean and oil-less exhaust etc.. This pump is widely used in the industry of printing, packing, cigarette making, dust catching, porcelain, ship's dirt draining and heat treatment etc..
Specification:
ZYBW...F type pump manufactured by means of the technology and standard introduced form Germany,has the function of using vacuum to suck air and exhausting the compressed air simultaneously. It also has the features of easy maintenance, clean and oil-less exhaust etc.. This pump is widely used in the industry of printing, packing, cigarette making, dust catching, porcelain, ship's dirt draining and heat treatment etc..
Specification:
| Item/Type | Unit | ZYBW60F | ZYBW80F | ZYBW100F | ZYBW140F |
| Capacity | m3/h | 60 | 80 | 100 | 140 |
| Rated Vacuum | kPa | -60 | -60 | -60 | -60 |
| Supplement Vacuum | kPa | -20 | -30 | -30 | -30 |
| Rated Pressure | kPa | 60 | 60 | 60 | 60 |
| Motor Rating | kW | 3 | 4 | 5.5 | 7.5 |
| Motor Speed | r/min | 1420 | 1420 | 1420 | 1420 |
| Noise level | dB(A) | 76 | 77 | 79 | 82 |
| Dia.of connecting pipe | mm | 27/20/27 | 33/27/33 | 34 | 24.1/38.9/44.8 |
| Net Weight | kg | 85 | 95 | 120 | 145 |
| Gross Weight | kg | 120 | 125 | 175 | 180 |
| Pump Size | mm | 788x405x350 | 808x405x350 | 965x405x350 | 1031x405x350 |
| Package Size | mm | 930x560x540 | 940x560x540 | 1250x550x570 | 1300x550x570 |
