Vacuum and pressure combined air pumps specially used for paper feeder of printing and packaging machie, such as Heidelberg, Manroland, KBA, Komori,Mistubishi,etc.
Character:
1, Capacity: 60m3/h,80m3/h,100m3/h,140m3/h
2, Supply -60kPa vacuum and 60kPa pressure at same time

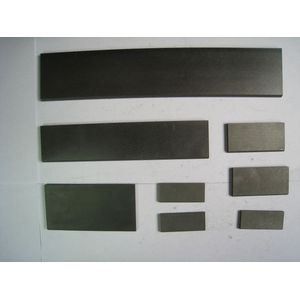

3, Use carbon graphite vane to supply pure air
4, Low temperature rising
5, Low noise
6, Convenient maintenance
Maintenance guarantee period: 12 months after shipping
Packaging: wooden case
Delivery: normally 2 weeks after receiving payment
| Item/Type | ZYBW60F | ZYBW80F | ZYBW100F | ZYBW140F | |
| Unit | |||||
| Capacity | m3/h | 60 | 80 | 100 | 140 |
| Rated Vacuum | kPa | -60 | -60 | -60 | -60 |
| Supplement Vacuum | kPa | -20 | -30 | -30 | -30 |
| Rated Pressure | kPa | 60 | 60 | 60 | 60 |
| Motor Rating | kW | 3 | 4 | 5.5 | 7.5 |
| Motor Speed | r/min | 1420 | 1420 | 1420 | 1420 |
| Noise level | dB(A) | 76 | 77 | 79 | 82 |
| Dia.of connecting pipe | mm | 27/20/27 | 33/27/33 | 34 | 24.1/38.9/44.8 |
| Net Weight | kg | 85 | 95 | 120 | 145 |
| Gross Weight | kg | 120 | 125 | 175 | 180 |
| Pump Size | mm | 788x405x350 | 808x405x350 | 965x405x350 | 1031x405x350 |
| Package Size | mm | 930x560x540 | 940x560x540 | 1250x550x570 | 1300x550x570 |
