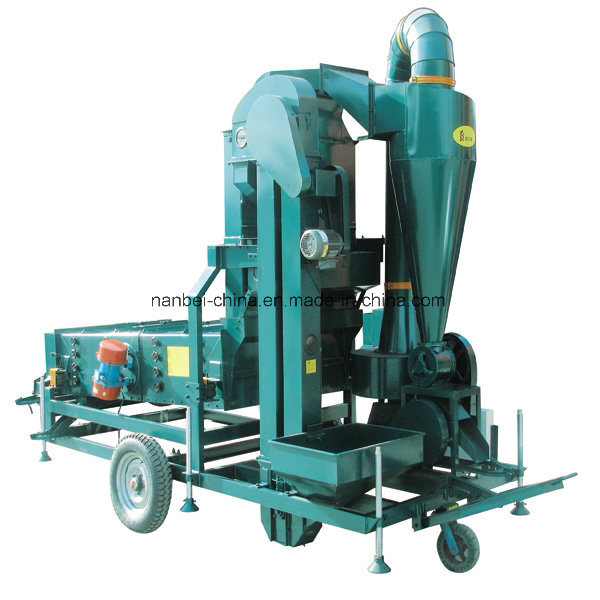

High efficiency air cleanning grain seed cleaner

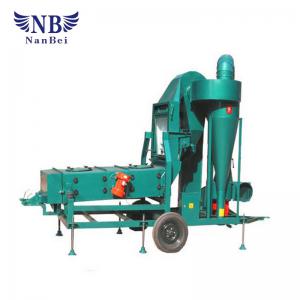

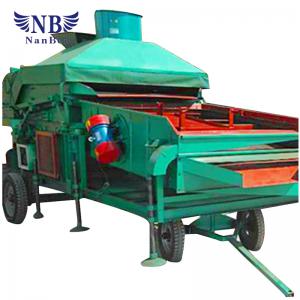

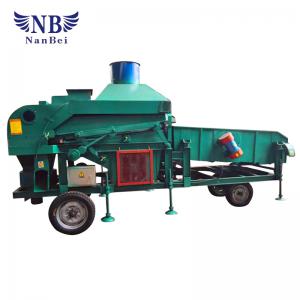

5XZC-2A/ 3A/ 3B Air screen cleaner
The 5XZC-3B Air-screener is the smallest version of the 5XZC Series cleaner and suitable for all kinds of seeds. This small Air-screen Cleaner is used for small seed production lots and breeding plots. A wide range of sieves makes the machine suitable for almost any crop.
The machines sift based on aerodynamics and the surface speed difference of seed and impurities, adjusting the seed of the air current. As impurities are light, they are sucked into the ejection chamber, while seed is heavy and is transferred into a vibrating screen. The vibrating screen has Two layers sieves with three outlet which eject large impurities, small impurities and seed respectively, The vibration screen used for separating seeds according different sizes.
Features
1.The machine works with 2 or 3 layers sieve, with rubber balls.
2.The rubber ball sifting structure complies with international standards, Sanli's patented rubber ball is highly elastic, endures and long lasting.
3.The sieves are tightly fit in the machine by a clamp-locking system for quick changing of the sieves and thorough cleaning of the machine.
4.The volume of air is variable and adjusted from minimum to maximum by a controlling handle, assuring very accurate cleaning and sorting of seeds. The blower has a very stable and reproducible output.
5.Transparent inspection windows for easy inspection and clean out.
6.The machine has a very low noise level.
7.Very easy and thorough cleaning of the machine and no contamination risk.
8.No wooden frames on the sieves where seeds can hide.
Technical parameters
Package & Shipping
Package : Wooden case or Naked in container
Shipping : shipping by sea
Contact US
5XZC-2A/ 3A/ 3B Air screen cleaner
The 5XZC-3B Air-screener is the smallest version of the 5XZC Series cleaner and suitable for all kinds of seeds. This small Air-screen Cleaner is used for small seed production lots and breeding plots. A wide range of sieves makes the machine suitable for almost any crop.
The machines sift based on aerodynamics and the surface speed difference of seed and impurities, adjusting the seed of the air current. As impurities are light, they are sucked into the ejection chamber, while seed is heavy and is transferred into a vibrating screen. The vibrating screen has Two layers sieves with three outlet which eject large impurities, small impurities and seed respectively, The vibration screen used for separating seeds according different sizes.
Features
1.The machine works with 2 or 3 layers sieve, with rubber balls.
2.The rubber ball sifting structure complies with international standards, Sanli's patented rubber ball is highly elastic, endures and long lasting.
3.The sieves are tightly fit in the machine by a clamp-locking system for quick changing of the sieves and thorough cleaning of the machine.
4.The volume of air is variable and adjusted from minimum to maximum by a controlling handle, assuring very accurate cleaning and sorting of seeds. The blower has a very stable and reproducible output.
5.Transparent inspection windows for easy inspection and clean out.
6.The machine has a very low noise level.
7.Very easy and thorough cleaning of the machine and no contamination risk.
8.No wooden frames on the sieves where seeds can hide.
Technical parameters
| Model | 5XZC-2A | 5XZC-3A | 5XZC-3B |
| Productivity | 2000Kg/h | 3000 Kg/h | 3000 Kg/h |
| Size (L×W×H) | 3400×1800×2660mm | 3400×1800×2660mm | 3400×1800×2660mm |
| Sieve Layers | 2 | 2 | 3 |
| Weight | 900 Kg | 1000 Kg | 1030 Kg |
| Power supply | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Total power | 4.25 kW | 4.25 kW | 4.25 kW |
| Selection rate | ≥98% | ≥98% | ≥98% |
| Clarity | ≥97% | ≥97% | ≥97% |
| Broken rate | ≤0.2% | ≤0.2% | ≤0.2% |
| Impurities rate | ≤3% | ≤3% | ≤3% |
Package & Shipping
Package : Wooden case or Naked in container
Shipping : shipping by sea
Contact US
