Product Description
This Animal Poultry Feed Plant can be used to make feed pellets for all ages chicken, cattle feed , pig feed and other animal livestock feed. And it is a good choice for the farm owner and those who plans to step into the poultry feed making industry.Main Features
1) Simple structure in linear type ,easy in installation and operation.
2) Adopting advanced world famous brand Siemens motor for the main machines, such as the hammer mill, mixer and pellet mill.
3) The dimension of this Chicken Feed Pellet Making Line is about 9*5*12m(Length*width*height).
4) Running this Chicken Feed Pellet Making Line needs about 3to 4 persons. And their responsibilities are as follows:
1 or 2 persons working at the feeding section;
1 person takes care of the pellet machine and watches the control panel
1 person works at the packing section;
5) This Cattle Poultry Feed Plant can make different kind of animal feed pellets, not only the chicken feed, but also the cattle feed, sheep feed and other kind of pellet feed or powder feed.
Why choose 3-4T/H Feed Pellet Processing Plant?
1. they don't have enough experience in making poultry feed, but they have know enough knowlege about how to raise chickens, which is more convincing when they sell the pellets.2. The capacity is not big, which can fulfill their requirement for their own farm use, reducing the cost; and the capacity is not too small, take 10 hours working per day, the output for one day is about 30 to 40 tons, which means at least in the 10 years, the capacity of this Cattle Poultry Feed Plant can meet the requirement of the market;
3. The total invest for this Cattle Poultry Feed Plant is not big, which also reduces the risk.
The final feed pellet range produced by this 3-4T/H Feed Pellet Processing Plant
| Ages | Type | Pellet size | Production method |
| 0-10 days | broiler, layer | about 1mm | After pelleting, the pellets will be crumbled by the crumbling machine |
| 10-20 days | broiler, layer | about 1.5mm to 2mm | This size can be directly made by pellet machine, or it can be crumbled by the crumbling machine |
| 20-30 days | broiler, layer | 2.5mm for broiler and layer | Directly made by pellet machine |
| 30-40 days | broiler, layer | 3mm or 3.5mm for broiler and layer; Powder for layer | Directly made by pellet machine |
| Other Animal Livestock Poultry ,Such as Cattle ,Sheep, Pig ,Rabbit ,Duck , |

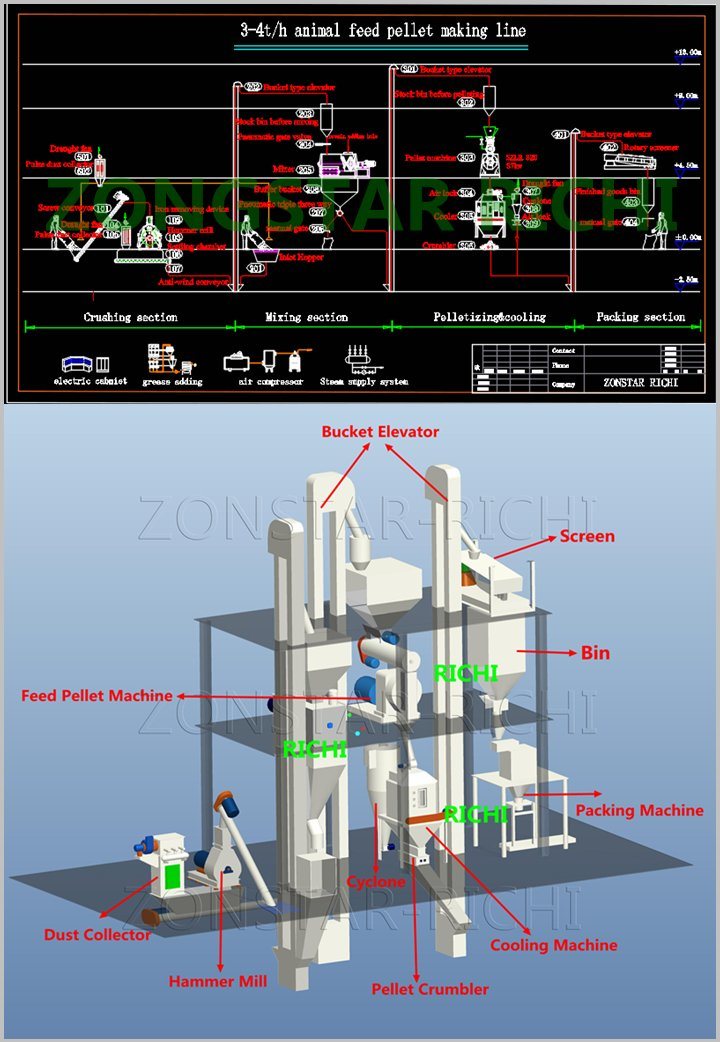

All the Equipment In this 3-4t/h Animal Feed Pellet Production Line
Crushing section from 101-107
Capacity: 3-4 T/H, Siemens motor and SKF bearings.
Specially designed small capacity hammer mill. Used in the small capacity poultry feed production line, the capacity is with 3mm screen, which means the final powder size is 3mm.pelle
♦ It can be fixed on the mixer;
♦ Connected with one screw convery, to crush the grains, like maize, corn, wheat, barley etc.

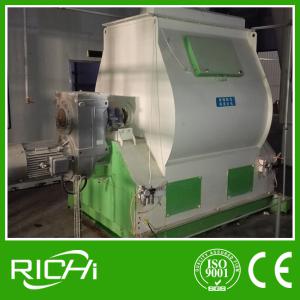

Mixing section from 201-208
Capaity: 500kg/h, Siemens motor and SKF bearings.
High uniform, patent the blade design enhanced material flow,shear, and high mixing uniformity.
Pellet & Cooling section 301-309
Capacity: 3-5 T/H, Siemens motor and SKF bearings. Gear Transmission. It can make pellet size from 1.5mm-8.0mm.
High efficiency reach 98%-99%, Long lifetime; high stability, high reliability

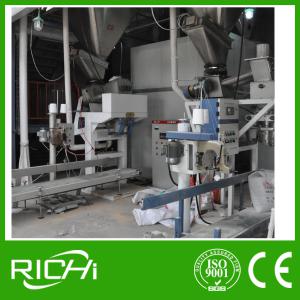

Screening& packing section 401-404 and Electronic cabinet system
This machine is used to selected the qualified pellets. It has three outlets. The qualified pellets will flow to the packing, smaller pellets will be sent to remake pellets, bigger pellets will be sent for rebreaking.
Welcome to Visit Our Factory
23 Years!!!
♦ We, Henan Richi Machinery Co., Ltd. was established in 1995, Has served Europe, North America, Africa, Middle East, Asia for ten years. Our products have been sold to many countries all over the world.
♦ The head office was located in Zhengzhou, Henan Province.
♦ As a professional poultry animal feed machine and small animal feed pellet manufacturing line machines project solution supplier, Henan Richi can always meet different customers' requirement.
♦ We understand how important the quality is, and we also understand the importance of timely shipping.
♦ We know how to survive and develop, because we always focus on the long-term development.
