Main Features of Pellet Mill Machine
1.With two rollers inside, better for poultry feed making;
2.Manufacturing according to internationally advanced technology standard;
3.The quality matching with the European standard;
4.Gear driving system, with good transmission rate, stable and reliable performance and low noise;
5.The key components are imported to ensure longer service life and lower cost for maintenance;
6.Raw material contacting parts are made by stainless steel;
7.Widely used for pelleting the high-grade livestock and poultry feed.
| Poultry feed pellet mill models | ||||||
| Model | Main Power | Feeder Power | Conditioner Power | Dia.of Ring Die | Pellet Size | Capacity |
| SZLH250 | 22KW | 0.55KW | 1.5KW | 250mm | φ1.0-12.0mm | 1-2T/H |
| SZLH320 | 37KW | 1.5KW | 2.2KW | 320mm | φ1.0-12.0mm | 3-5T/H |
| SZLH350 | 55KW | 1.5KW | 3.0KW | 350mm | φ1.0-12.0mm | 5-7T/H |
| SZLH420 | 110KW | 2.2KW | 7.5KW | 420mm | φ1.0-12.0mm | 8-12T/H |
| SZLH508 | 132/160KW | 2.2KW | 11KW | 520mm | φ1.0-12.0mm | 12-120T/H |

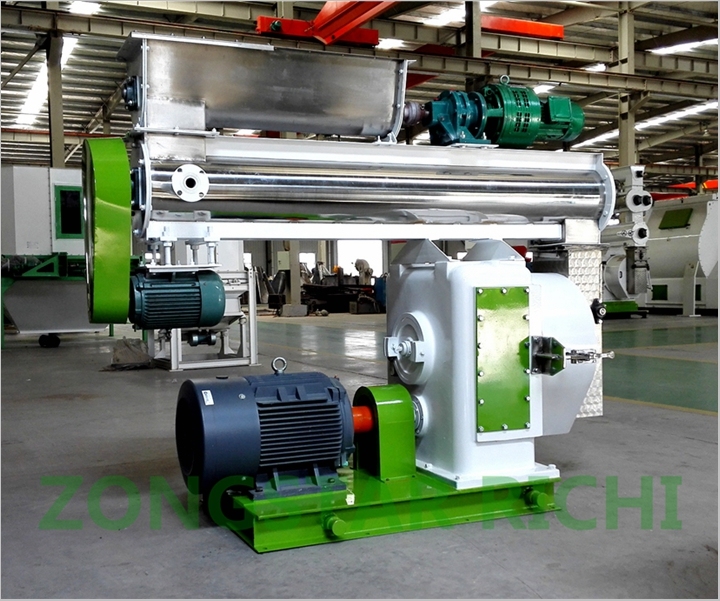

SZLH-320 Feed Pellet Making Machine ,The Capacity is 3-5T/H

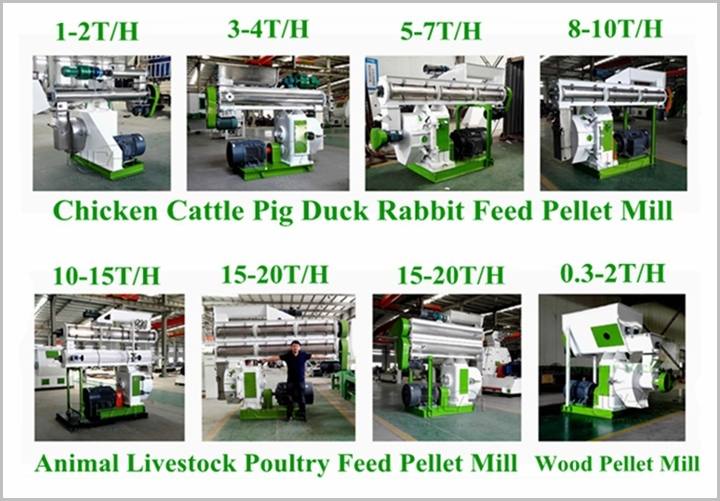

Other Types of Feed Pellet Machine

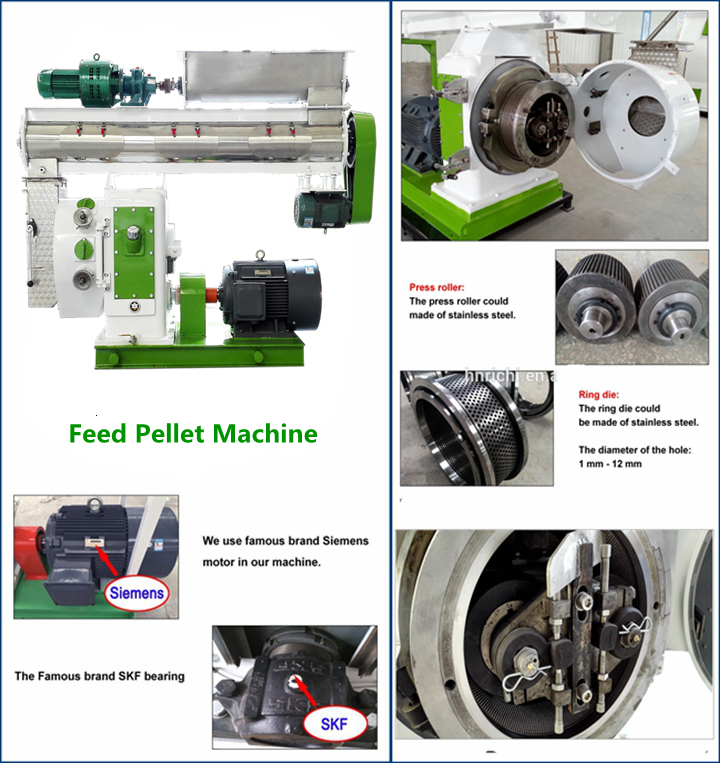

Advantages of Animal Feed Pellet Making Machine
- Gear directly-connecting driving is adopted for high efficiency;
- Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
- LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
- Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
- Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
- The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
- Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
- The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
Product Description
This Poultry Feed Pellet Machine can be used to make feed pellets for all ages chicken cattle pig and other poultry. And it is a good choice for the farm owner and those who plans to step into the poultry feed making industry. The feed pellet can be used to your farm to use, can also be used for marketing. Also can used for our turn-key feed project.
The 3-5T/H Feed Pellet Machine Used For Feed Pellet Production Line
About Our Factory
23Years!!!
♦ We, Henan Zonstar Richi Machinery Co., Ltd. was established in 1995, Has served Europe,
North America, Africa,Middle East, Asia for ten years. Our products have been sold to many countries all over the world. Such as Algeria, Malaysia, Qatar, Zimbabwe, cape Verde, Ecuador, Tanzania, Serbia, Chile, Peru, uzbekistan, Ukraine, etc
♦ The head office was located in Zhengzhou, Henan Province.
♦ As a professional poultry animal feed pellet mill machinery and complete feed plant project solution supplier,
Henan Richi can always meet different customers' requirement.
♦ Choose RICHI, Choose Rich, Choose Success!!!
♦ Choose Our Feed Machinery, is Choose Your Need!!!
