| Product Description |
Product Application

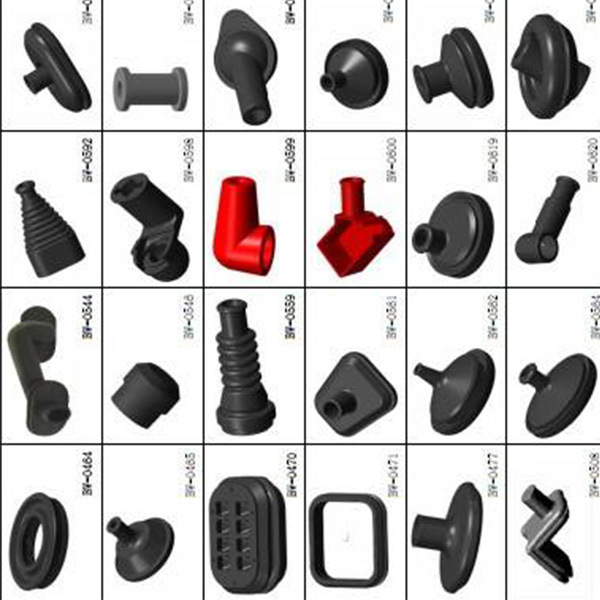

Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
| UNIT | UNIT | JY-250ST | JY-350ST | JY-500ST | JY-850ST | JY-1000ST | |
| INJECTION UNIT | Screw Diameter | mm | 30 | 35 | 42 | 48 | 48 |
| Injection Pressure | kg/cm2 | 886 | 820 | 960 | 790 | 1125 | |
| Max.Shot Weight | g | 74 | |||||
| 106 | 176 | 227 | 260 | ||||
| Injection Rate | mm | 115 | 115 | 140 | 140 | 200 | |
| CLAMPING UNIT | Clamping Force | Tons | 34 | 45 | 55 | 85 | 120 |
| Distance Between Tie Bere | mm | 375x205 | 410x250 | 470x280 | 525x325 | 635x425 | |
| Opening Stroke | mm | 180 | 200 | 200 | 255 | 300 | |
| Max.Open daylight | mm | 338/238 | 420/270 | 470/270 | 685/485 | 780/580 | |
| Ejetor Force | Tons | 1.3 | 1.76 | 1.76 | 2.1 | 4.8 | |
| Ejetor Stoke | mm | 35 | 35 | 35 | 45 | 45 | |
| OTHER | Power | KW | 6.3 | 9 | 12 | 16 | 20 |
| Machine Weight | Tons | 1.5 | 2.4 | 3.0 | 5 | 6.8 | |
| Machine Dimensions(LxWxH) | m | 1.55x0.93x2.45m | 1.7x1.2x3.0m | 1.85x1.2x3.0m | 2.0x1.3x3.2m | 2.0x1.4x4.1m | |
| Shipping Weight | Tons | 1.8 | 2.7 | 3.4 | 5.4 | 7.2 | |
| Shipping Measurment(LxWxH) | m | 1.76x1.15x2.3 | 1.92x1.3x2.3 | 2.1x1.4x2.3 | 2.2x1.4x2.5 | 2.2x1.6x2.8 |
Main Features
1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3) Fixed bottom mold and loose top mold type is suitable for plastic injection molding of inserts and it is also equipped with an ejector for finished products.
4)Low-pressure closed die assembly can protect the safety of die.

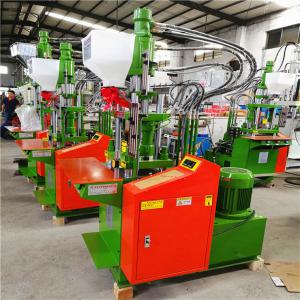

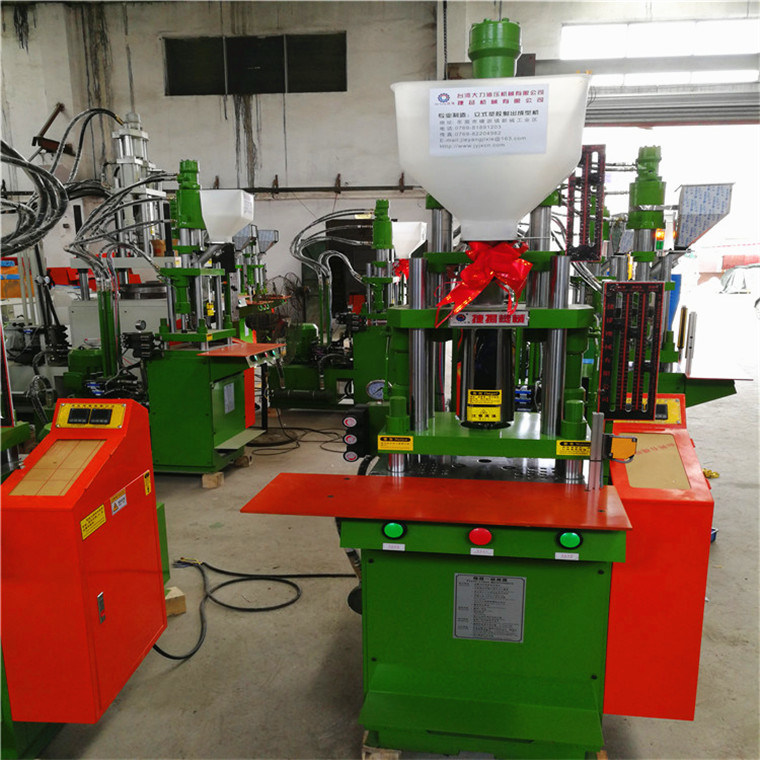

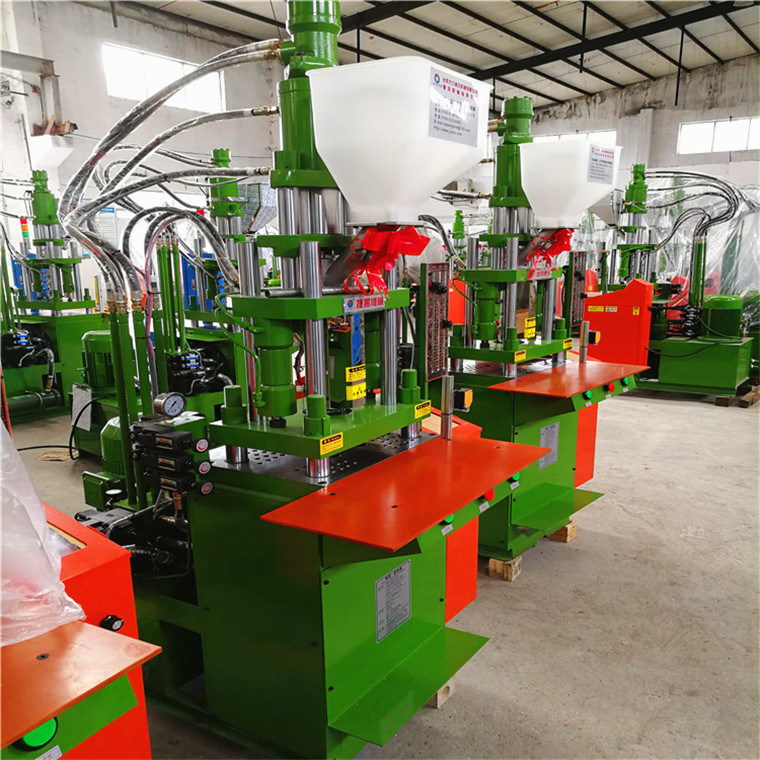

| Detailed Images |
| Packing & Delivery |
Package
1.The standard package is wooden box without fumigation.
2. We can also pack it according to customers special request.
Delivery Time
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
| Certifications |
| Our Company |
Dongguan JieYang Machinery Co., Ltd established on 2010, located in Xincheng Industrial Zone of Hengli Town. Our factory is about 2,000 square meters. We have more than 20years manufacturing experiences of vertical plastic injection molding machines with precision machining equipment & professional team. We do our best to provide the solution with competitive cost to our customers and it is recognized by all our customers.
We warmly welcome you to visit our factory, we are waiting for you at JieYang!
| Our Service |
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
