Product Description
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time,
it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools,
automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
Specification
Machine Drawings
Machine Details
Main Features
1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed,
backing pressure and screw speed is suitable for various plastic to confectioned.
3) Fixed bottom mold and loose top mold type is suitable for plastic injection molding of inserts
and it is also equipped with an ejector for finished products.
4)Low-pressure closed die assembly can protect the safety of die.
Machine can produce
Company Profile
Dongguan JieYang Machinery Co., Ltd established on 2010, located in Xincheng Industrial Zone of Hengli Town.
Our factory is about 2,000 square meters. We have more than 20years manufacturing experiences of
vertical plastic injection molding machines with precision machining equipment & professional team.
We do our best to provide the solution with competitive cost to our customers and it is recognized by all our customers.
We warmly welcome you to visit our factory, we are waiting for you at JieYang!
Pre-Sales Service:
Packing & Shipping
FAQ
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time,
it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools,
automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
Specification
| Model | Unit | JY-160S2 | JY-200ST | ||
| Screw Barrel Diameter | mm | 26 | 28 | 28 | 30 |
| Injection Pressure | kg/cm2 | 1183 | 1019 | 1019 | 896 |
| Max. Shot Weight | gram | 50 | 58 | 58 | 67 |
| Max. Shot Weight | cm3/sec | 34.6 | 40 | 67 | 76.7 |
| Screw Barrel Route | mm | 105 | 105 | ||
| Screw Barrel Rotary Speed | rpm | 0-215 | 0-200 | ||
| Nozzle Contact Force | tons | 4.45 | 4.45 | ||
| Nozzle Retraction Nozzle | mm | 130 | 130 | ||
| Number of Temperature Control | pcs | 2 | 2 | ||
| Clamping Force | tons | 15 | 25 | ||
| Platen Size | mm | 450*280 | 480*310 | ||
| Distance Between Tie Bere | mm | 265 | 310x170 | ||
| Min. Mold Height | mm | 100/25 | 100/30 | ||
| Opening Stroke | mm | 190 | 180 | ||
| Max. Opening Mold Distance | mm | 290/215 | 280/210 | ||
| Ejetor Force | tons | 1.3 | 1.3 | ||
| Ejetor Stoke | mm | 35 | 35 | ||
| Max. Hydraulic Pressure | kg/cm2 | 140 | 140 | ||
| Pump Output | L/min | 17.5 | 29.5 | ||
| Oil Resservoir Capacity | Liter | 80 | 100 | ||
| Cooling Water Consumption | L/hr | 400-600 | 400-600 | ||
| Pump Motor Power | kw/hp | 2.2/3HP | 3.75/5HP | ||
| Barrel Heating Power | kw | 1.8 | 1.8 | ||
| Total Power | kw | 4.2 | 5.5 | ||
| Machine Weight | tons | 0.6 | 0.68 | ||
| Machine Dimension(LxWxH) | meter | 1.35*0.92*2.06 | 1.4*0.90*2.37 | ||
| Shipping Weight | tons | 0.8 | 0.88 | ||
| Shipping Measurements(LxWxH) | meter | 1.3*1.0*2.23 | 1.49*1.08*2.25 |
Machine Drawings

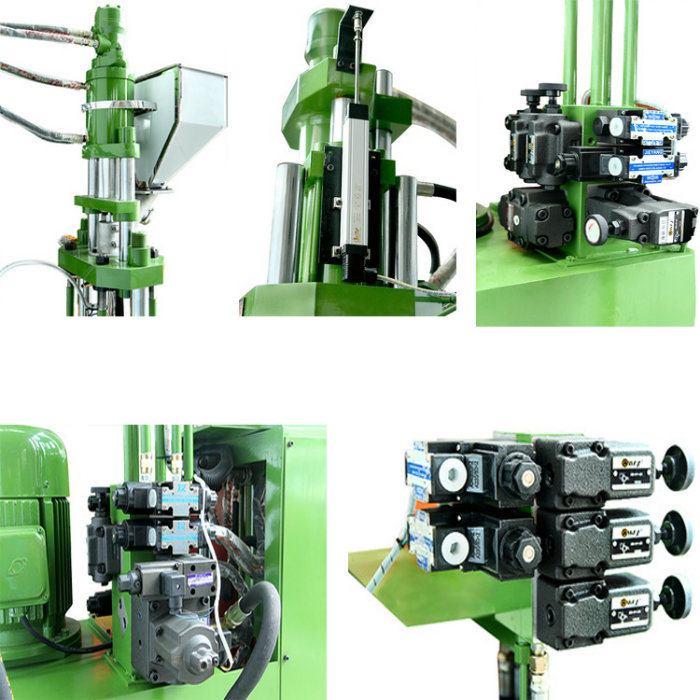

Machine Details
Main Features
1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed,
backing pressure and screw speed is suitable for various plastic to confectioned.
3) Fixed bottom mold and loose top mold type is suitable for plastic injection molding of inserts
and it is also equipped with an ejector for finished products.
4)Low-pressure closed die assembly can protect the safety of die.

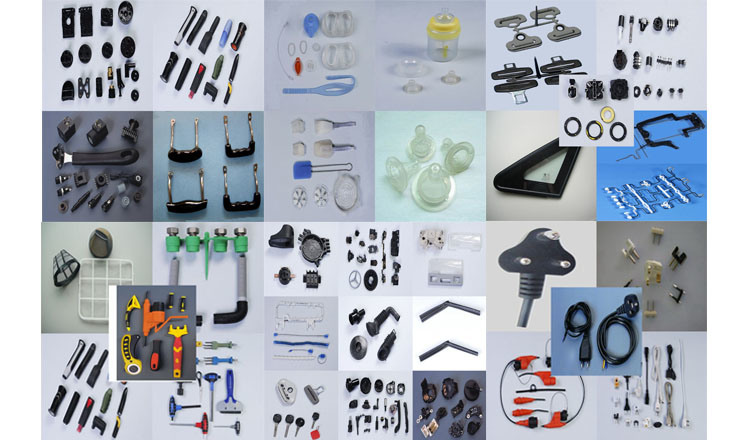

Machine can produce
Company Profile
Dongguan JieYang Machinery Co., Ltd established on 2010, located in Xincheng Industrial Zone of Hengli Town.
Our factory is about 2,000 square meters. We have more than 20years manufacturing experiences of
vertical plastic injection molding machines with precision machining equipment & professional team.
We do our best to provide the solution with competitive cost to our customers and it is recognized by all our customers.
We warmly welcome you to visit our factory, we are waiting for you at JieYang!
Pre-Sales Service:
If you are not sure which machine is your best choice within budget, please provide the samples picture, size,
material and production capacity to us. We will offer you the best solutions and machines.
Technical consulting:
Any question about the machine selection, operation, production and so on,
please feel free to contact us and we will provide you reasonable budget and suggestion.
After-sale Service:
Training how to instal the machine, training how to use the machine. Engineers available to service machinery overseas.

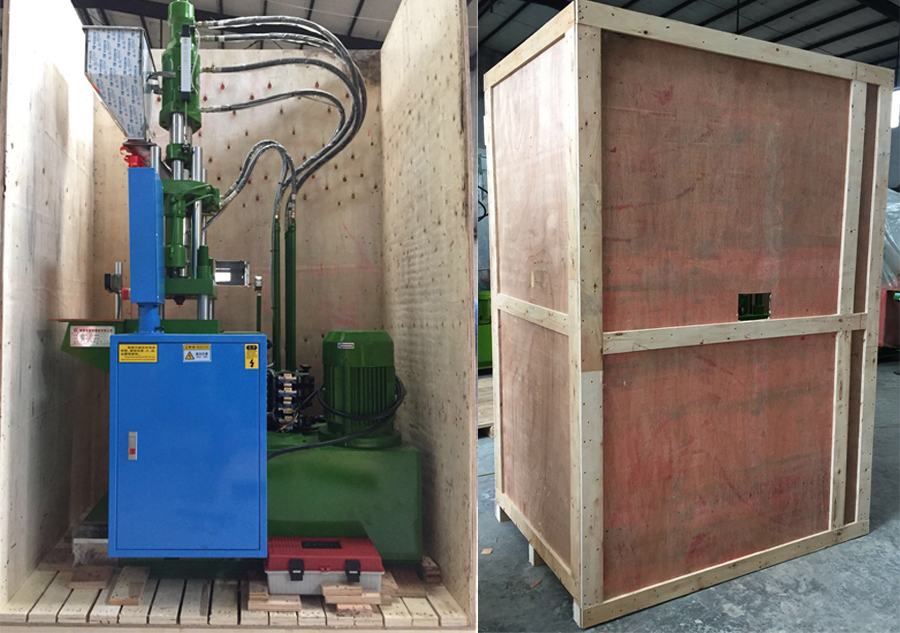

Packing & Shipping
FAQ
| 1. Q: Are you manufacturer or trading company? A: We are a manufactures for vertical injection molding machine and all machines are made by ourselves. |
| 2. Q: What's your guarantee or the warranty of the quality if we buy your machine A: We offer you high quality machines with high quality after-sale service. Also we have one year warranty of the spare parts, free of charge. |
| 3.Q:Can you find the mold for us? A:We could find the mould factory to make mould for you.And then we could test the machine and mould for you. |
| 4. Q:Can I be an agent in my market ? A: Welcome. We need talk details about the agent agreement . |
