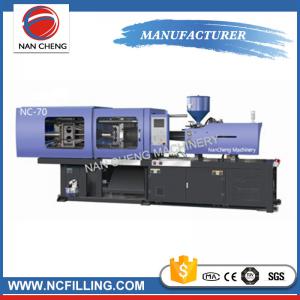

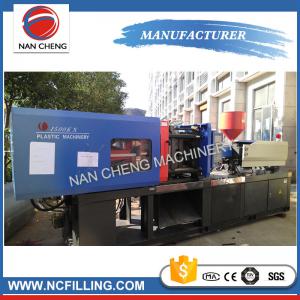

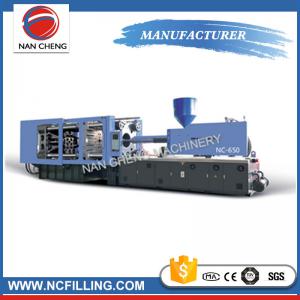

This model of machine is mature, stable and widely accepted by the market, and aimed at the process and technical requirement of in mold labeling, the struction is designed better in order to satisfy the requirement to the host machine, which has the advantages of high speed, high precision and high stability.

Characters:

1. Innovative design of plasticizing system achieves low-temperature injection; it makes the machine energy-saving, environmental, and manufactures products with high tenacity and toughness.
2. Advanced hydraulic system achieves low pressure injection; it makes the machine gain better mechanical protection, have longer mould service life, and manufactures products with low stress and deformation.
3. Optimized control system achieves fast response speed; it makes the machine obtain higher shot rate in a short time and reaches the best within 0.3 seconds.

Features:

    1) Multi-stage pressure speed injection adjustment;
    2) Double-cylinder balance injection system;
    3) back-pressure adjustment & control;
    4) high speed mold-clamping device;
    5) low pressure mold protection;
    6) multiple Ejector style;
    7)mechanical, electrical and hydraulic(according to the product specifications)safety device;
    8)centralized lubrication;
    9)proportional pressure & flow control;
    10) all computer control system;
    11) data locking function/mould memory system;
    12) large screen of LCD;
    13) linear displacement transducer controlling injection, clamping & ejection;
    14) electronic & hydraulic control components & elements of the world famous brands;
    15) points vertical double toggle mechanism.

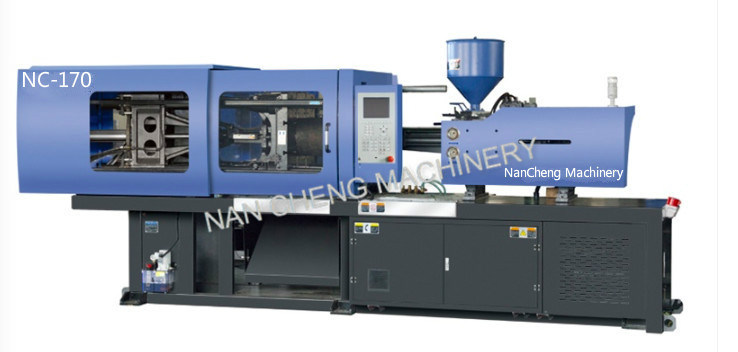

Injection unit	NC-170
A	B	C
Screw diameter	Mm	42	45	50
Theoretical shot volume	Cm3	311	357	441
Injection weight	g	283	325	402
Injection rate	g/s	138	160	196
Injection pressure	Mpa	203	177	143
Screw rotation speed	Rpm	0~180
Clamping Unit
Clamping force	KN	1700
Moving mould-plate stroke	Mm	435
Space between die bar(W×H)	Mm	470×470
Max. Mould height	Mm	520
Min. mould height	Mm	180
Ejector stroke	Mm	140
Ejector force	KN	50
Others
Max. pump pressure	Mpa	16
Pump motor Power	KW	18.5
Heating power	KW	12.4
Machine dimension (L×W×H)	M	5.04×1.43×2.12
Oil tank cubage	L	300
Machine weight	T	5
