Bacteria in Waste Water Treatment

Nancheng Machinery Co., Ltd. locates in Zhangjiagang city which is close to Shanghai and Wuxi. Our company covers 20,000 square meters. Supported by strong designing & developing facilities and professional technical team, we are of fully capability in research and development, manufacture and after-sale service. We never stop introducing the most advanced packing technology, developing and better our products, focusing on the reliability of overall performance; these ensure us unique competitive advantages.
       The main business of our company concentrates on Water Treatment Equipment and packaging products for various commercial fluids, including drinking water, carbonated beverages, juice, tea and alcohols. We are popular with both domestic customers and overseas clients for the reliability and high quality of our products.

How the Water Treatment and Bottling Plant Works

1.A semi permeable membrane in a reverse osmosis system only allows certain things to pass through.
2.This membrane passes water easily but also prevents many other contaminants from passing by trapping them.
3.Water is normally on both sides of the membrane, the water on each side has a different concentration of dissolved minerals.
4.The water in the less concentrated solution tries to dilute the more concentrated solution.
5.Water will pass through the membrane from the lower concentration side to the greater concentration side.
6.The osmotic pressure (see diagram) created by the difference in water levels, will counter the diffusion process forming an equilibrium between the two sides.



Water Treatment and Bottling Plant Technical route and flow diagram instructions

The technical route is as following:

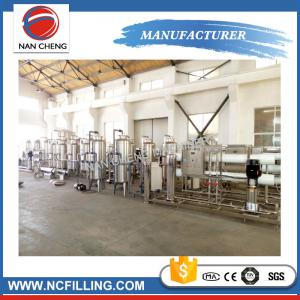

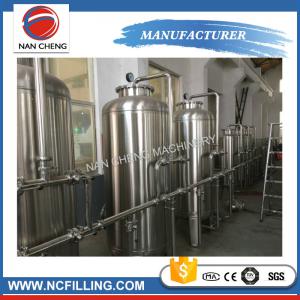

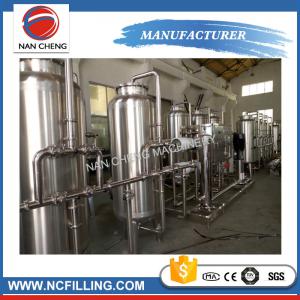

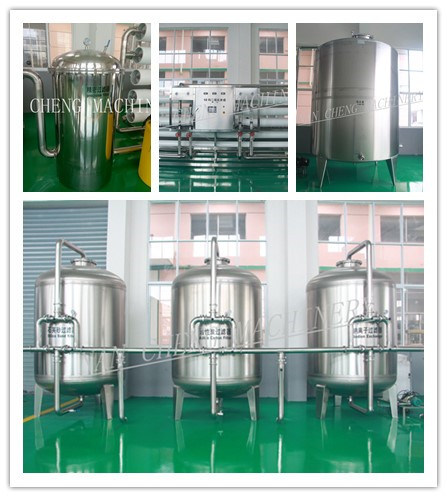

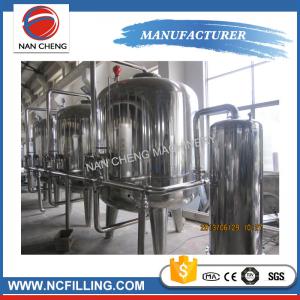

Raw tank-->Booster pump -->Quartz sand filter-->activated carbon filter--->Anti-scalant dosing-->Sediment filter-->High pressure pump-->Reverse osmosis desalination device-->Permeate tank

Materials of Construction

Skid Frame: SS304
Membrane Elements:Hydraulics CAP3-8040
Membrane Housings: SS304
Low pressure piping: SS304
High pressure piping: SS304
Pump and Motor
Pump: 304SS vertical multi-stage centrifugal
Motor: TEFC, 380/460 VAC, 3-phase, 50/60 Hz.
Standard Features
8" x 40" High rejection membrane elements
5-micron sediment pre-filter housing
Automatic inlet solenoid valve
PLC control
Product water conductivity monitor
Operating pressure gauges
Product and concentrate flow meters
Concentrate and recycle flow control valves
Low inlet pressure switch with shutdown alarm
Auto/Manual wash
Capacity:500-50000Liter per Hour
SS304 construction
USA Brand Hydraulics membrane
SS304 membrane housing
SS304 piping and fitting
Multi-stage SS304 high-pressure centrifugal pump
Schneider,Siemens electronic parts
Nominal Recovery:65-75%
Nominal Salt Rejection:99.60%
Auto/Manual backwash
Low inlet pressure switch with shutdown alarm
Option:Ozone generator,UV,Storge tank etc
.


Optional Equipment Available

Atmospheric storage tanks with level control and repressurization pump
Pressurized storage vessels
UV
Ozone generator
Membrane clean-in-place (CIP) systems
Pretreatment chemical injection systems

ModelProduction of water (Ton/h )Motor power (kw)MembraneEntrance Diameter (mm)Size(L*W*H) ( cm)Weight(Kg)
RO-0.50.51.1404032170*70*170200
RO-111.5404032155*90*180200
RO-223404038480*70*200300
RO-334804048470*100*230400
RO-445804048470*100*230450
RO-557804060500*120*230600
RO-101011804060900*200*200800
RO-1515168040721000*187*3001000
RO-2020308040601000*180*4001550
