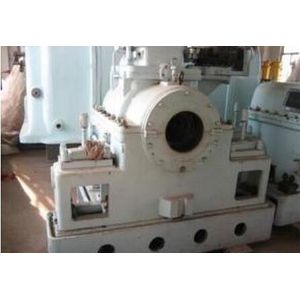

Combined circle steam turbine 15 to 60mW:
Model L15-3.43
Power(mW): 14.35
Speed(r): 3000
Rated air inflow(T&P): T 440P 3.43
Rated exhaust pressure(P): 10.7
Feeding water temperature: 50.2
Weight(t): 44
Center height(m): 750
Model L18-3.43-4
Power(mW): 18
Speed(r): 3000
Rated air inflow(T&P): T 440P 3.43
Rated exhaust pressure(P): 5.02
Feeding water temperature135.1
Weight(t): 72
Center height(m): 900
Model: L25-3.43-3
Power(mW) 25
Speed(r): 3000
Rated air inflow(T&P): T 435P 3.43
Rated exhaust pressure(P): 10.6
Feeding water temperature: 104.3
Weight(t): 73
Center height(m): 900
Model: L36-6.7
Power(mW): 36.1
Speed(r): 3, 000
Rated air inflow(T&P): T 465 P 6.7
Rated exhaust pressure(P): 10.5
Feeding water temperature 47.3
Weight(t): 85
Center height(m): 900
Model: LZ60-5.6-0.56
Power(mW): 60
Speed(r): 3, 000
Rated air inflow(T&P): T 527 P 5.6
Rated exhaust pressure(P): 8.08
Feeding water temperature: 73.1
Weight(t): 100
Center height(m): 800
Combined cycle steam turbine:
15~60MW COMBINED CYCLE STEAM TURBINE
Model L15-3.43
Power(mW): 14.35
Speed(r): 3000
Rated air inflow(T&P): T 440P 3.43
Rated exhaust pressure(P): 10.7
Feeding water temperature: 50.2
Weight(t): 44
Center height(m): 750
Model L18-3.43-4
Power(mW): 18
Speed(r): 3000
Rated air inflow(T&P): T 440P 3.43
Rated exhaust pressure(P): 5.02
Feeding water temperature135.1
Weight(t): 72
Center height(m): 900
Model: L25-3.43-3
Power(mW) 25
Speed(r): 3000
Rated air inflow(T&P): T 435P 3.43
Rated exhaust pressure(P): 10.6
Feeding water temperature: 104.3
Weight(t): 73
Center height(m): 900
Model: L36-6.7
Power(mW): 36.1
Speed(r): 3, 000
Rated air inflow(T&P): T 465 P 6.7
Rated exhaust pressure(P): 10.5
Feeding water temperature 47.3
Weight(t): 85
Center height(m): 900
Model: LZ60-5.6-0.56
Power(mW): 60
Speed(r): 3, 000
Rated air inflow(T&P): T 527 P 5.6
Rated exhaust pressure(P): 8.08
Feeding water temperature: 73.1
Weight(t): 100
Center height(m): 800
Combined cycle steam turbine:
15~60MW COMBINED CYCLE STEAM TURBINE
