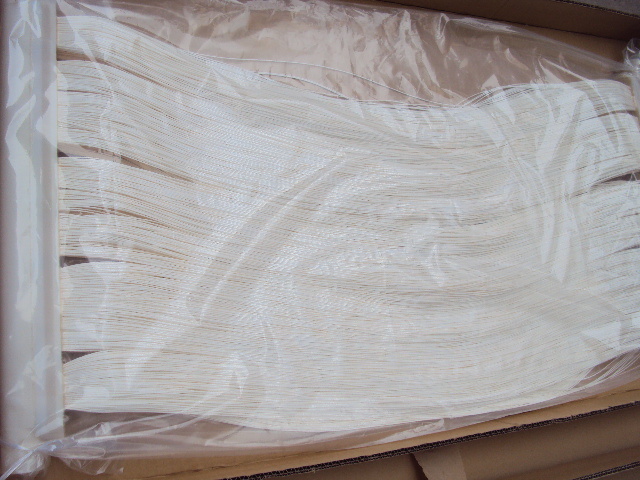

High anti-pollution Aqucell UF Mbr Membrane/ Waste Water Treatment
AQUCELL MBR For Waste Water Treatment (Column Type AQU-ZMBR-15)
AQUCELL MBR For Waste Water Treatment (Column Type AQU-ZMBR-15)
| Specifications | |
| Model | AQU - ZMBR- 15 |
| Hollow Fiber Material | PVDF |
| Filtration Mode | Suction |
| Pore Size | 0.1 μ m |
| Surface Area (m ² ) | 15 m ² |
| Potting Material | Epoxy Resin, Polyurethane |
| Outlet size (mm) | Φ 32 |
| Performance | |
| Design Flowrate | ≥ 3.6 m ³ /day |
| Operation Temperature | 5 ~ 50 °C |
| Operating Pressure (MPa) | -0.01 ~ -0.04 |
| Max. TMP | 0.035 MPa |
| Max Backwash Pressure (MPa) | 0.2 Mpa |
| Backwash Flux | Surface Area × 2 L/m ² + Pipeline Capacity |
| pH | 2 ~ 11 |
| NaClO Resistance | 2000 ppm |
| Max. Allowable Concentration of Free Chlorine For Chemical Clean | 5000 ppm |
| Air : Water | 15 : 1 |
| MLSS | 5000 ~ 15000mg/L |
| Recovery Rate | ≥ 92% |
| In-situ Chemical Cleaning Period | 3 ~ 10 days |
| Ex-situ Cleaning Period | 6 ~ 12 moths |
| Permeate Water Quality | |
| * Permeate Turbidity | < 0.2 NTU |
| * Permeate SS | < 0.5 mg/L |
| * Permeate E.Coli | None |
| * Permeate SDI | < 3 |
| * : take secondary (effluent) discharge standard waste water as raw water for testing |
