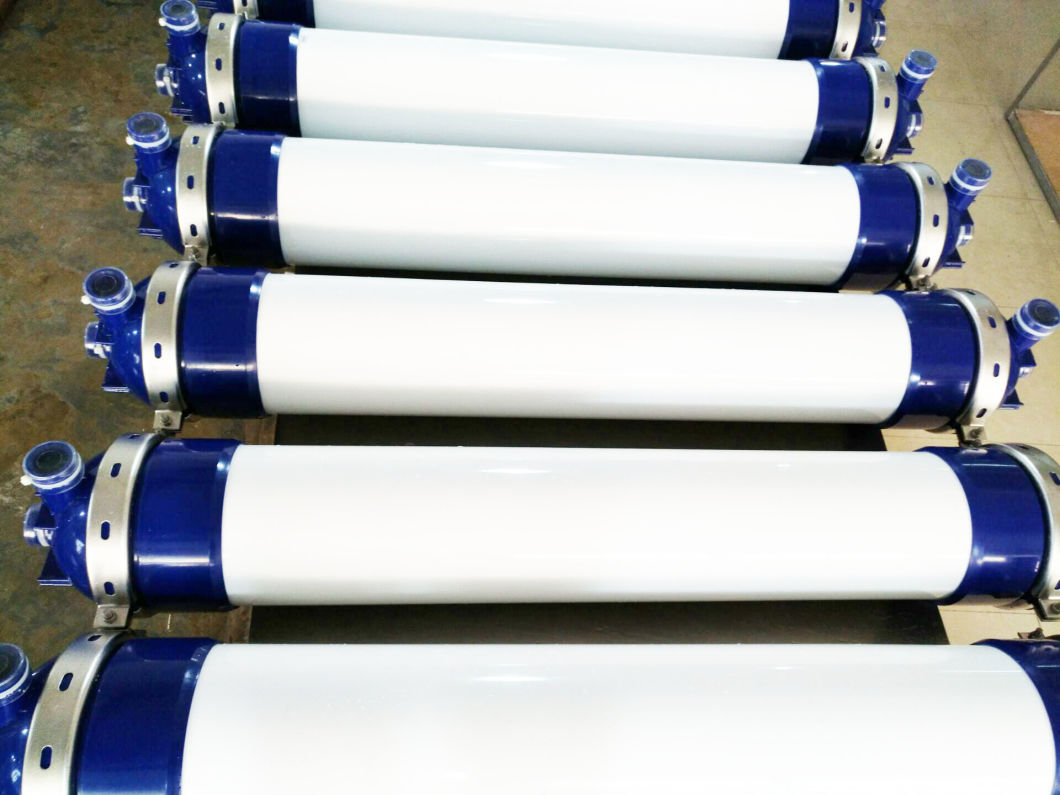

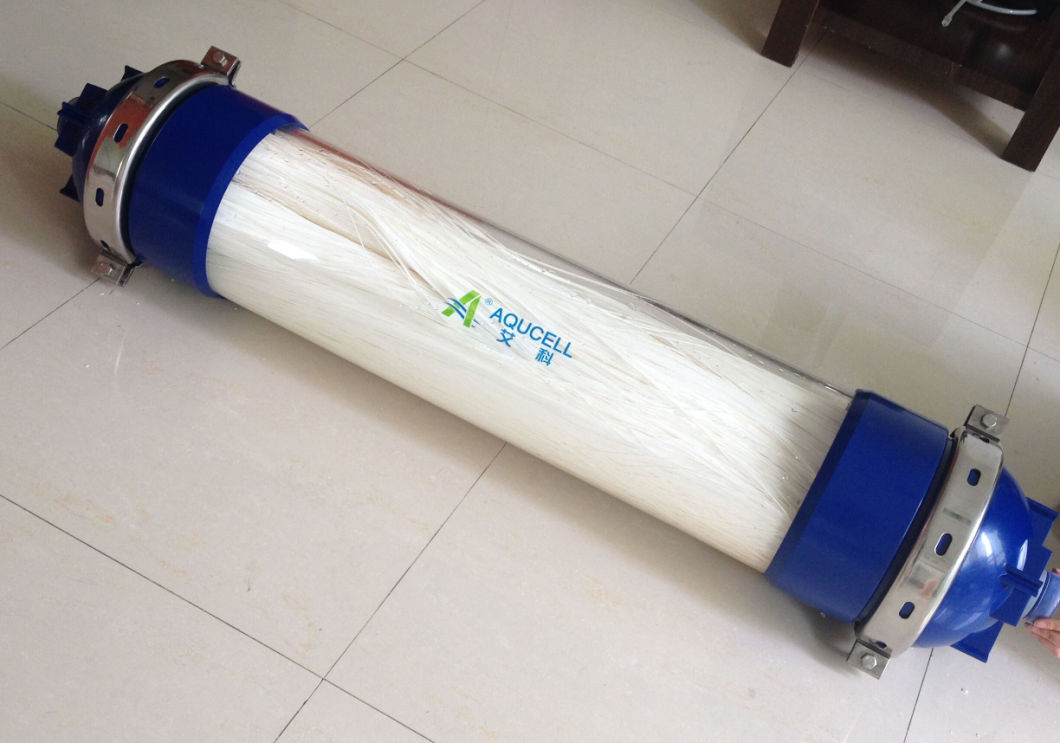

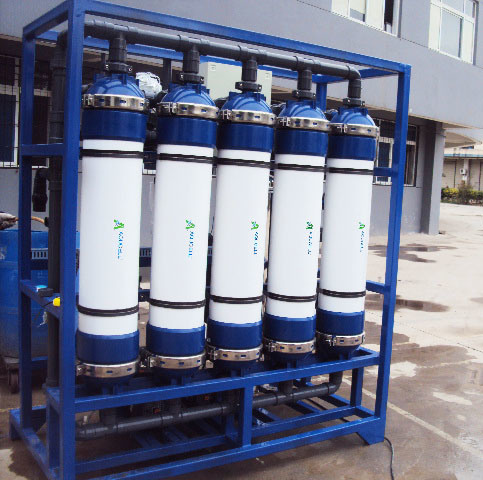

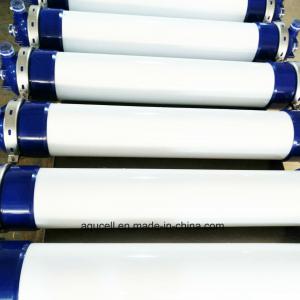

Hollow Fiber UF Membrane AQU-250 water treatment equipment
Main features:
1. Wall thickness thickening of end cover and reinforced rib explosion-proof design make the pressure bearingg capacity over 1.6Mpa.
2. Central tube structure can make the water be distributed uniformly and the effects of back wash become better.
3. There are two outlets above and below that can back wash both by the two ones.
4. Especially design for quickly, conveniently fixing and good sealing property joint.
5. Stainless steel hoop make sure membrane not metamorphose and slack.
6. There are two kind of material of tube body to choose that can fill more demand of our clients.
7. End seal material: Epoxy resin with high hardness, excellent strength, superior toughness and good hygienism grade.
Technical Parameters:
Feed Water Quality Requirement of Modified PVC UF Membrane Module
Instruction:
Make filtrate for 30mins→Top Backwash for 30s→Bottom Backwash for 30s→Forward Flush for30s ... Keep the cycle going.
For the specific process , please adjust as per case.
Main features:
1. Wall thickness thickening of end cover and reinforced rib explosion-proof design make the pressure bearingg capacity over 1.6Mpa.
2. Central tube structure can make the water be distributed uniformly and the effects of back wash become better.
3. There are two outlets above and below that can back wash both by the two ones.
4. Especially design for quickly, conveniently fixing and good sealing property joint.
5. Stainless steel hoop make sure membrane not metamorphose and slack.
6. There are two kind of material of tube body to choose that can fill more demand of our clients.
7. End seal material: Epoxy resin with high hardness, excellent strength, superior toughness and good hygienism grade.
Technical Parameters:
| Model No. | Connection Size | MWCO (Dalton) | Precision (μm) | Flux (L/·h) | Membrane Area (m2) | Operation pressure (MPa) | Engineering (T/H) |
| AQU-250A | DN50 | 100K | 0.01 | 40~100 | 32.7 | <0.2 | 10-150 |
| AQU-250B | DN50 | 100K | 0.01 | 40~100 | 43.1 | <0.2 | 30-200 |
| AQU-250C | DN50 | 100K | 0.01 | 40~100 | 54.3 | <0.2 | Above 100 |
Feed Water Quality Requirement of Modified PVC UF Membrane Module
| Parameters | Units | Design Reference | Limit |
| TSS | mg/L | <30 | 50 |
| Turbidity | NTU | <10 | 15 |
| Particle of Feed Water | µm | <50 | 100 |
| Oil & Grease | mg/L | 0 | <5 |
| PH Range, Continuous Operation | 6-9 | 2-12 | |
| PH Range, Short-Term Cleaning | 2-12 | 2-12 | |
| Operating Temperature | ºC | 25 | Lowest Temp. : 5ºC, Highest Temp : 45ºC |
| Operating Pressure | MPa | 0.06~0.2 | 0.3 |
| TMP. | MPa | <0.1 | 0.2 |
| Chlorine Tolerance, Continuous Operation | mg/L | 50 | 100 |
| Chlorine Tolerance, Short-Term Cleaning | mg/L | 100 | 200 |
Instruction:
Make filtrate for 30mins→Top Backwash for 30s→Bottom Backwash for 30s→Forward Flush for30s ... Keep the cycle going.
For the specific process , please adjust as per case.
