FRP Box Type Open Circuit Cross-Flow Water Cooling Tower

Rectagular Cross-flow Cooling Tower with 100% thermal performance; Low energy consumption; Low noise; Low drift Loss; First-class configuration. Widly used in all kinds of refrigeration and air conditioning system. Power SystemOutline

Technical Feature

Shanghai, China

2 Million Tons of Water

L/C, T/T, D/P, Western Union, Paypal, Money Gram

Cross Flow

Mechanical Ventilation

FRP or Complete Steel

Send Standard Inquiry

Add Inquiry List

$3~36

PRIMARY PARAMETERS

Model NO.

YHA-100~1000C (FRP)

Noise Level

Low

Application Fields

Air Conditioning and Industrial

Certification

ISO, CE, CTI

Condition

New

Model

Yha-100c

Dry Weight

1050kg(FRP)

Operation Weight

2250kg(FRP)

Fan Diameter

1500mm

Motor Power

3kw

Nominal Flow Rate

100m3/Hr

Drift Loss

<=0.001%

Thermal Performance

100% and Above

Fills

Fire Retardant PVC

Fan

Aerofoil Al Alloy

Trademark

YUANHENG

Transport Package

20u2032 ~ 40u2032 Container

Specification

1050KG ~15500KG

Origin

China

HS Code

84195000

DETAIL DESCRIPTION

Rectagular Cross-flow Cooling Tower with 100% thermal performance; Low energy consumption; Low noise; Low drift Loss; First-class configuration.
Widly used in all kinds of refrigeration and air conditioning system.

FRP Box Type Open Circuit Cross-Flow Water Cooling Tower

FRP Box Type Open Circuit Cross-Flow Water Cooling Tower

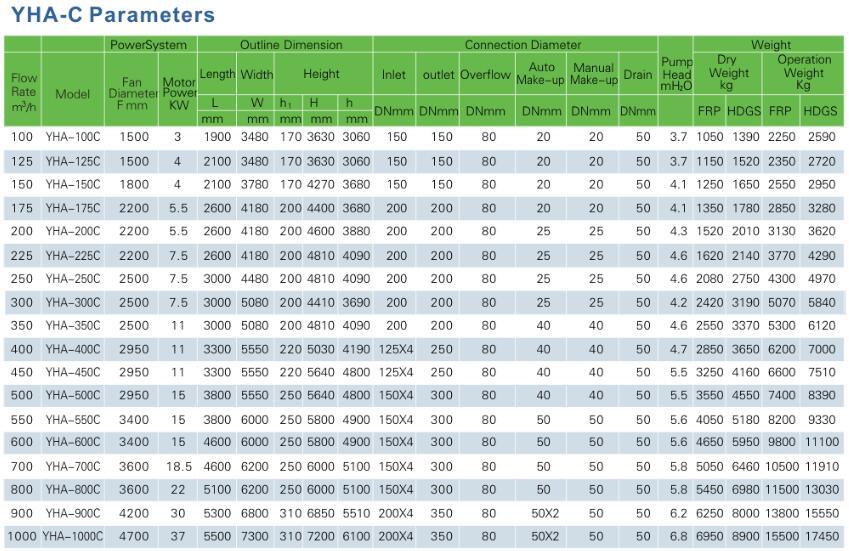

		Power System	Outline Dimension	Connection Diameter	Pump Head MH₂O	Weight
Flow Rate m³/hr	Model	Fan Diameter mm	Motor Power KW	Length	Width	Height	Inlet	Outlet	Overflow	Auto Make-up	Manual Make-up	Drain	Dry Weight Kg	Operation Weight Kg
L	W	H₁	H	H	DNmm	DNmm	DNmm	DNmm	DNmm	DNmm
mm	mm	mm	mm	mm	FRP	HDGS	FRP	HDGS
100	YHA-100C	1500	3	1900	3480	170	3630	3060	150	150	80	20	20	50	3.7	1050	1390	2250	2590
125	YHA-125C	1500	4	2100	3480	170	3630	3060	150	150	80	20	20	50	3.7	1150	1520	2350	2720
150	YHA-150C	1800	4	2100	3780	170	4270	3680	150	150	80	20	20	50	4.1	1250	1650	2550	2950
175	YHA-175C	2200	5.5	2600	4180	200	4400	3680	20	200	80	20	20	50	4.1	1350	1780	2850	3280
200	YHA-200C	2200	5.5	2600	4180	200	4600	3880	200	200	80	25	25	50	4.3	1520	2010	3130	3620
225	YHA-225C	2200	7.5	2600	4180	200	4810	4090	200	200	80	25	25	50	4.6	1620	2140	3770	4290
250	YHA-250C	2500	7.5	3000	4480	200	4810	4090	200	200	80	25	25	50	4.6	2080	2750	4300	4970
300	YHA-300C	2500	7.5	3000	5080	200	4410	3690	200	200	80	25	25	50	4.2	2420	3190	5070	5840
350	YHA-350C	2500	11	3000	5080	200	4810	4090	200	200	80	40	40	50	4.6	2550	3370	5300	6120
400	YHA-400C	2950	11	3300	5550	220	5030	4190	125X4	250	80	40	40	50	4.7	2850	3650	6200	7000
450	YHA-450C	2950	11	3300	5550	220	5640	4800	125X4	250	80	40	40	50	5.5	3250	4160	6600	7510
500	YHA-500C	2950	15	3800	5550	250	5640	4800	150X4	300	80	40	40	50	5.5	3550	4550	7400	8390
550	YHA-550C	3400	15	3800	6000	250	5800	4900	150X4	300	80	50	50	50	5.6	4050	5180	8200	9330
600	YHA-600C	3400	15	4600	6000	250	5800	4900	150X4	300	80	50	50	50	5.6	4650	5950	9800	11100
700	YHA-700C	3600	18.5	4600	6200	250	6000	5100	150X4	300	80	50	50	50	5.8	5050	6460	10500	11910
800	YHA-800C	3600	22	5100	6200	250	6000	5100	150X4	300	80	50	50	50	5.8	5450	6980	11500	13030
900	YHA-900C	4200	30	5300	6800	310	6850	5510	200X4	350	80	50X2	50	50	6.2	6250	8000	13800	15550
1000	YHA-1000C	4700	37	5500	7300	310	7200	6100	200X4	350	80	50X2	50	50	6.8	6950	8900	15500	17450
