High Standard Export Cooling Tower Manufacturer for Absorption Chiller

Product DescriptionRectagular Cross-flow Cooling Tower with 100% thermal performance; Low energy consumption;Low noise; Low drift Loss; First-class configuration.Widly used in all kinds of refrigeration and air conditioning system. Power SystemOut

Technical Feature

Shanghai, China

300 Millions Water Ton a Year

L/C, T/T, D/P, Western Union, Paypal, Money Gram

Cross Flow

Mechanical Ventilation

FRP or Complete Steel

Send Standard Inquiry

Add Inquiry List

$3~35

PRIMARY PARAMETERS

Model NO.

YHA-I

Noise Level

Low

Application Fields

Air Conditioning

Certification

ISO, CE, CTI

Condition

New

Service

OEM/ODM

Operation Weight

2260kg(FRP)

Drift Loss

u22640.001%

Filling

Fire Retardant PVC

Dry Weight

1060kg(FRP)

Nominal Flow Rate

122m3/Hr

Thermal Performance

100% and Above

Fan

Aerofoil Al Alloy

Trademark

YUANHENG

Transport Package

20u2032~40u2032 Container

Specification

1900mm*3480mm*3630mm

Origin

China

HS Code

8419500090

DETAIL DESCRIPTION

Product Description
Rectagular Cross-flow Cooling Tower with 100% thermal performance; Low energy consumption;Low noise; Low drift Loss; First-class configuration.
Widly used in all kinds of refrigeration and air conditioning system.
High Standard Export Cooling Tower Manufacturer for Absorption Chiller

High Standard Export Cooling Tower Manufacturer for Absorption Chiller

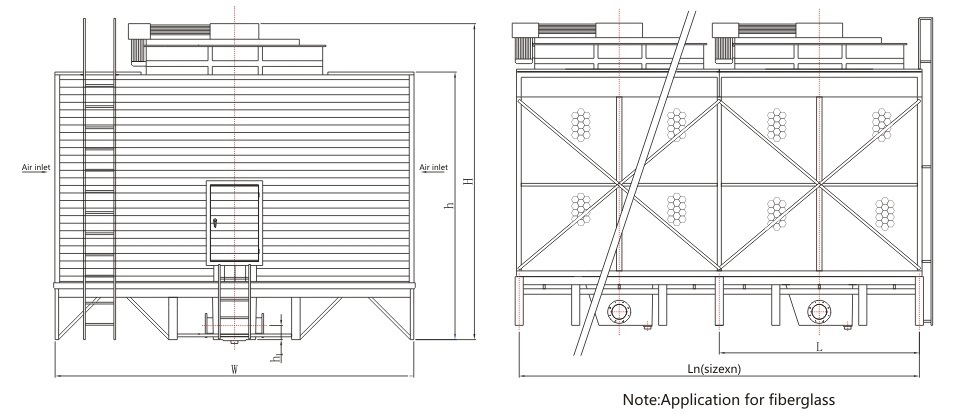

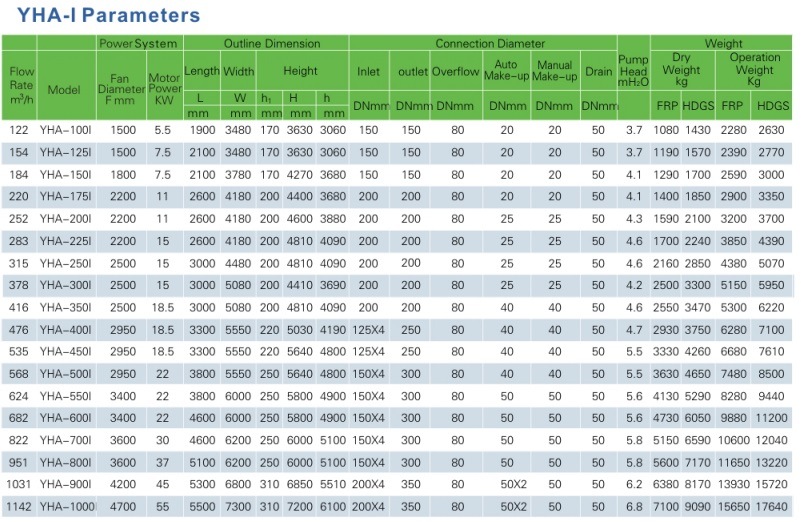

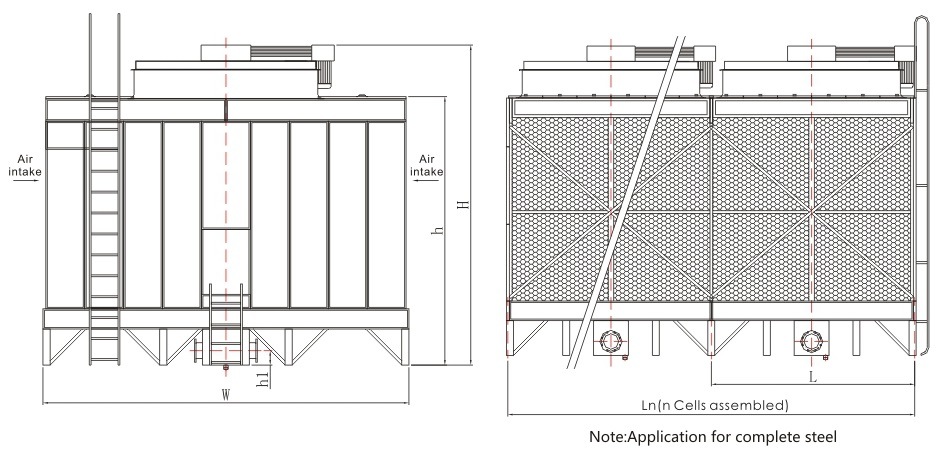

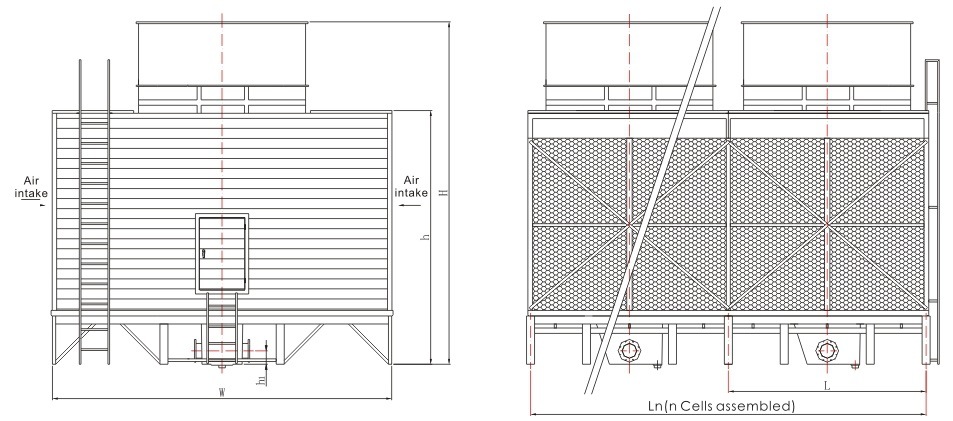

		Power System	Outline Dimension	Connection Diameter	Pump Head (mH₂O)	Weight
Flow rate(m3/hr)	Model	Fan Diamater (F mm)	Motor Power(kw)	Length	Width	Height	Inlet	Outlet	Overflow	Auto-Make-up	Manual Make-up	Drain	Dry weight(Kg)	Operation Weight(Kg)
L	W	h₁	H	h	DNmm	DNmm	DNmm	DNmm	DNmm	DNmm		FRP	HDGS	FRP	HDGS
mm	mm	mm	mm	mm
122	YHA-100I	1500	5.5	1900	3480	170	3630	3060	150	150	80	20	20	50	3.7	1080	1430	2280	2630
154	YHA-125I	1500	7.5	2100	3480	170	3630	3060	150	150	80	20	20	50	3.7	1190	1570	2390	2770
184	YHA-150I	1800	7.5	2100	3780	170	4270	3680	150	150	80	20	20	50	4.1	1400	1850	2900	3350
220	YHA-175I	2200	11	2600	4180	200	4400	3680	200	200	80	20	20	50	4.1	1590	2100	3200	3700
252	YHA-200I	2200	11	2600	4180	200	4600	3880	200	200	80	25	25	50	4.3	1590	2100	3200	3700
283	YHA-225I	2200	15	2600	4180	200	4810	4090	200	200	80	25	25	50	4.6	1700	2240	3850	4390
315	YHA-250I	2500	15	3000	4480	200	4810	4090	200	200	80	25	25	50	4.6	2160	2850	4380	5070
378	YHA-300I	2500	15	3000	5080	200	4410	3690	200	200	80	25	25	50	4.2	2500	3300	5150	5950
416	YHA-350I	2500	18.5	3000	5080	200	4810	4090	200	200	80	40	40	50	4.6	2550	3470	5300	6220
476	YHA-400I	2950	18.5	3300	5550	220	5030	4190	125×4	250	80	40	40	50	4.7	2930	3750	6280	7100
535	YHA-450I	2950	18.5	3300	5550	220	5640	4800	125×4	250	80	40	40	50	5.5	3330	4260	6680	7610
568	YHA-500I	2950	22	3800	5550	250	5640	4800	150×4	300	80	40	40	50	5.5	3630	4650	7480	8500
624	YHA-550I	3400	22	3800	6000	250	5800	4900	150×4	300	80	50	50	50	5.6	4130	5290	8280	9440
682	YHA-600I	3400	22	4600	6000	250	5800	4900	150×4	300	80	50	50	50	5.6	4730	6050	9880	11200
822	YHA-700I	3600	30	4600	6200	250	6000	5100	150×4	300	80	50	50	50	5.8	5150	6590	10600	12040
951	YHA-800I	3600	37	5100	6200	250	6000	5100	150×4	300	80	50	50	50	5.8	5600	7170	11650	13220
1031	YHA-900I	4200	45	5300	6800	310	6850	5510	200×4	350	80	50×2	50	50	6.2	6380	8170	13930	15720
1142	YHA-1000I	4700	55	5500	7300	310	7200	6100	200×4	350	80	50×2	50	50	6.8	7100	9090	15650	17640
