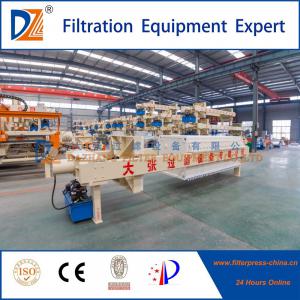

Hydraulic Filter Press
Features of hydrualic filter press:

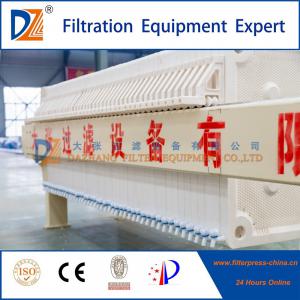

1.Reinforced PP filter plate resists stronger corrosion and high temperature with longer life
2.Hydraulic squeezing can perfectly avoid leakage
3.Best filter cloth are features of high solid-liquid seperation effect.
4.Every plate has been tested under high pressure of 21Mpa before delivery
5.The flatness of filter plate is lower than 25um which avoid leakage.
6.Feeding pressure is upto 2Mpa by design
7.High quality motor makes the whole machine running stable

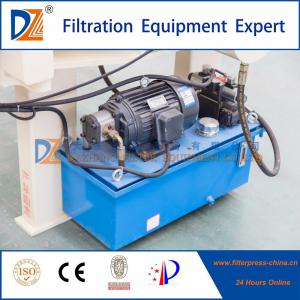

8.Auto hydraulic maintaining pressure
9.Siemens PLC control all the process
10.Main beam is made of high quality carbon steel with sand blasting processing and it is of high intensity and corrosion resisting.
TECHNICAL DATA
COMPANY OVERVIEW
Henan Dazhang Filter Equipment Co., Ltd. is a professional filter press manufactures. It has three subsidiary corporations in Shanghai and Yuzhou. Now Henan Dazhang is the biggest filter press base in the center of China. We are specialized in designing,producing and selling filter presses and other related equipment. We are also good at supplying our customers with comprehensive filtration solutions. Our company nocovers an area of 30000 square meters,with advanced equipment and strict QC procedures.
Certifications

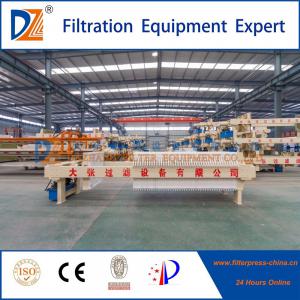

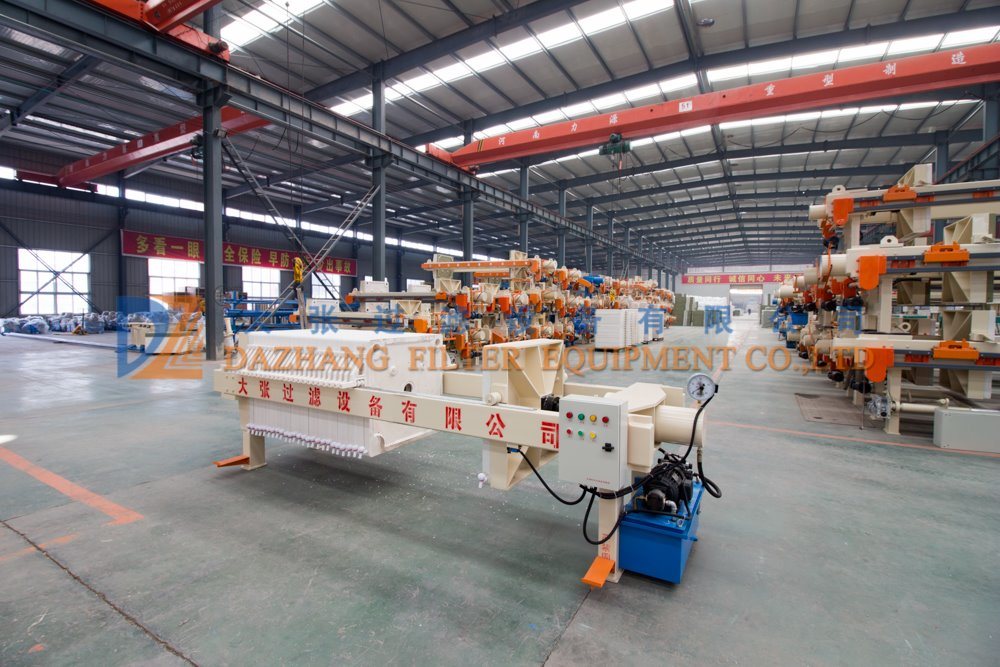

Our Workshop
Packaging&Transportation
Our product line:
Automatic Membrane Filter Presses,
Automatic Chamber/Racessed Filter Presses,
Hydraulic/Mechanical/Manual Filter Presses,
Special Filter Presses,
Filter Plates(including CGR Gasketed Filte Plates),
Belt Filter Presses,
Bag Filters
In order to meet different filtration needs of customers, we have been constantly developing and improving our prduct technology, quality, process automation and after-sales services. Our unremitting efforts for years have bought us great trust from customers and our products enjoy fast sales abroad.
Features of hydrualic filter press:
1.Reinforced PP filter plate resists stronger corrosion and high temperature with longer life
2.Hydraulic squeezing can perfectly avoid leakage
3.Best filter cloth are features of high solid-liquid seperation effect.
4.Every plate has been tested under high pressure of 21Mpa before delivery
5.The flatness of filter plate is lower than 25um which avoid leakage.
6.Feeding pressure is upto 2Mpa by design
7.High quality motor makes the whole machine running stable
8.Auto hydraulic maintaining pressure
9.Siemens PLC control all the process
10.Main beam is made of high quality carbon steel with sand blasting processing and it is of high intensity and corrosion resisting.
TECHNICAL DATA
| Model | Filter Area (m²) | Plate Size (mm) | Cake Thickness (mm) | Volume (L) | Plates QTY (pcs) | Feeding Pressure (MPa) | Power (kw) |
| 30/870 | 30 | 870 | 30 | 460 | 23 | 0.6 | 2.2 |
| 40/870 | 40 | 595 | 30 | ||||
| 50/870 | 50 | 748 | 38 | ||||
| 60/870 | 60 | 902 | 46 | ||||
| 70/870 | 70 | 1056 | 54 | ||||
| 80/870 | 80 | 1210 | 62 | ||||
| 50/1000 | 50 | 1000 | 30 | 752 | 28 | 0.6 | 4 |
| 60/1000 | 60 | 914 | 34 | ||||
| 70/1000 | 70 | 1063 | 40 | ||||
| 80/1000 | 80 | 1219 | 46 | ||||
| 100/1000 | 100 | 1505 | 57 | ||||
| 120/1000 | 120 | 1813 | 69 | ||||
| 100/1250 | 100 | 1250 | 30 | 1479 | 36 | 0.6 | 4 |
| 120/1250 | 120 | 1777 | 43 | ||||
| 140/1250 | 140 | 2094 | 51 | ||||
| 160/1250 | 160 | 2381 | 58 |
COMPANY OVERVIEW
Henan Dazhang Filter Equipment Co., Ltd. is a professional filter press manufactures. It has three subsidiary corporations in Shanghai and Yuzhou. Now Henan Dazhang is the biggest filter press base in the center of China. We are specialized in designing,producing and selling filter presses and other related equipment. We are also good at supplying our customers with comprehensive filtration solutions. Our company nocovers an area of 30000 square meters,with advanced equipment and strict QC procedures.
Certifications
Our Workshop
Packaging&Transportation
Our product line:
Automatic Membrane Filter Presses,
Automatic Chamber/Racessed Filter Presses,
Hydraulic/Mechanical/Manual Filter Presses,
Special Filter Presses,
Filter Plates(including CGR Gasketed Filte Plates),
Belt Filter Presses,
Bag Filters
In order to meet different filtration needs of customers, we have been constantly developing and improving our prduct technology, quality, process automation and after-sales services. Our unremitting efforts for years have bought us great trust from customers and our products enjoy fast sales abroad.
