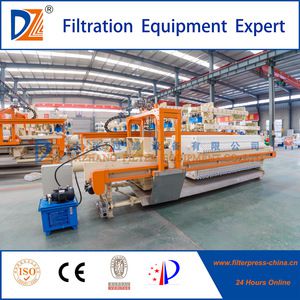

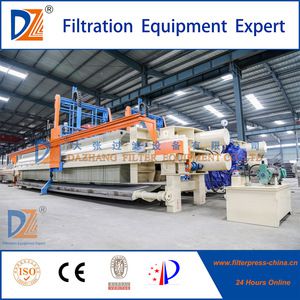

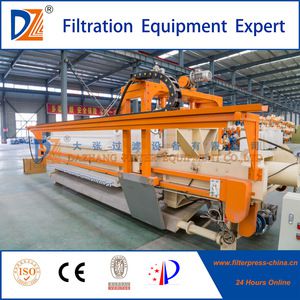

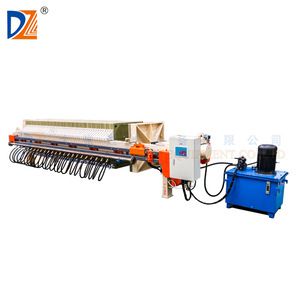

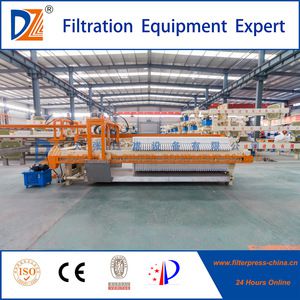

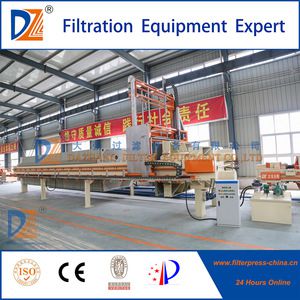

Full automatic chamber filter press for mining
Automatic chamber/recessed filter press use micro computer processer, PLC and touch screen to control every part's actions, such as: cylinder, plate shifter, cloth washing, etc, and remote control ports are left.
High efficiency filter press expended the length of cylinder and can discharge several cakes every time. The advantages: stable performance, high efficienccy and lower running cost.
The fast open system can increase the cake discharging efficiency 3-6times, especially for the filter press that have a large quantity of plates and need frequent operations.
When the filter cloth was blocked, it can use the cloth washing system to clean the blocked solid by high pressure waster, so that increase the filtering speed and enlarge the lift-span.
The device have two types: Single Washing System and Double Poles Washing System.
Advantages of Dazhang Filter Press:
1. Low cake moisture
2. Unmanned operation and cost saving
3. Resist high temperature and corrosion
4. Good sealing effect can perfectly avoid leskage
Application of Dazhang filter press
Dazhang filter press widely applicable to coal washing, inorganic salt, mining, alcohol, petroleum, chemical, dyestuff, metallurgy, medicine, foodstuff, paper making and sewage treatment industries.
Technical Data
| Model | Filter Plate(m2) | Plate size(mm) | Cake thickness(mm) | chamber volume(L) | Plate NO.(pcs) | Filtration pressure(MPa) | Motor power(Kw) | Weight(Kg) |
| XMZ30/870-30UK | 30 | 870X870 or 800x800 | 30 | 460 | 23 | 2.2 | 2680 | |
| XMZ40/870-UK | 40 | 595 | 30 | 3050 | ||||
| XMZ50/870-UK | 50 | 748 | 38 | 3456 | ||||
| XMZ50/1000-UK | 50 | 1000X1000 | 736 | 28 | 4 | 4128 | ||
| XMZ60/1000-UK | 60 | 889 | 34 | 4636 | ||||
| XMZ70/1000-UK | 70 | 1041 | 40 | 5143 | ||||
| XMZ80/1000-UK | 80 | 1193 | 46 | 5651 |
Pre-sale Serive
Our technical support team which have the professional knowledge level will help you to solve the problems that you meet in the using process of the solid-liquid equipments.
Services during the sale
In the process of the clients buying the products, we will provide clients the satisfactory and considerate service through a series of rigorous service style. We respect clients and always devote ourselves to improving the total of clients: help clients to draft solving plans.
After-sales service
Dazhang Filter Equipment Co., Ltd insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance. Our mission is woking through professional consulation, exquisite thchnical support and standard solution in order to constantly meet your neds, and finally achieve satisfactory results.
Technological support
Dazhang Group has been largely adopting new technologies, new techniques and high-tech equipments. And Dazhang Group also has strict and effective quality control system. We have obtained Iso9001 quality system certificate.
Henan Dazhang Filter Equipment Co., Ltd. is a professional filter press manufactures. It has three subsidiary corporations in Shanghai and Yuzhou. Now Henan Dazhang is the biggest filter press base in the center of China. We are specialized in designing,producing and selling filter presses and other related equipment. We are also good at supplying our customers with comprehensive filtration solutions. Our company nocovers an area of 30000 square meters,with advanced equipment and strict QC procedures.
1). Are you filter press manufuacturer? |
Yes, we are the company whichis the joint of trade and industry, and we can also provide sample test, equipment manufacture,after-sale serviece,etc. |
2). Which country have your products been exported? |
Many country, such as Australia, EU, America and so on. And our company has agencies in Vietnam. |
3). What industry application of this product? |
Many industries, such as chemical, food, medicine, sludge treatment and so on. |
4). How many about your MOQ? |
1 Set. |
5). What is the voltage/phase for this machine ? |
220V 50Hz 3Phs, 380V 50Hz 3Phs and 415V 50Hz 3Phs,also can made as the clients’ need. |
6). What is the Mode of transportation ? |
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air |
7). How long can we get the goods? |
we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport. |
8). What about Payment term? |
T/T(Telegraphic Transfer ) --30% as prepayment by T/T, after seen the copy of the B/L sent by fax, the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc. |
