Good Quality Low Price Spray Dryer Machine
Introduction of Spray Dryer Machine
Spray drying machine is the technology most widely used in the liquid technology shaping and in the drying industry.The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as: solution, emulsion, suspension and pumpable paste states. For this reason,when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
Working Principle of Spray Dryer Machine
After been filtered and heated the air enters into the air distrbutor on the top of the dryer.The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Through the very short time of contacting the heat air,the materials can be dried into the final products.The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.
Technical Parameters of Spray Dryer Machine

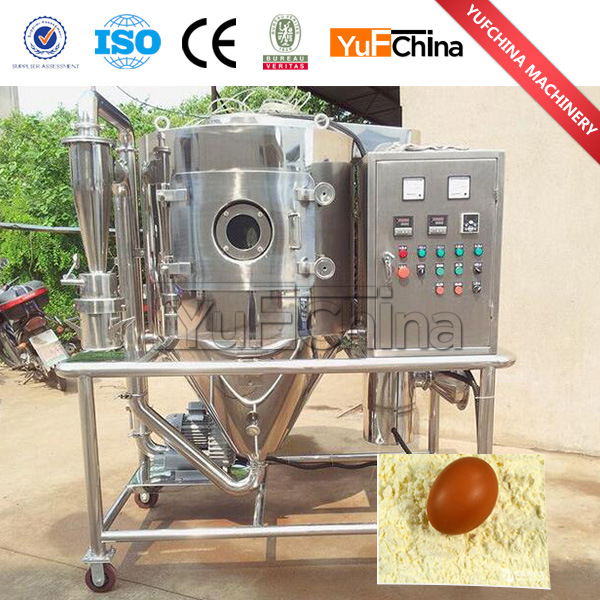

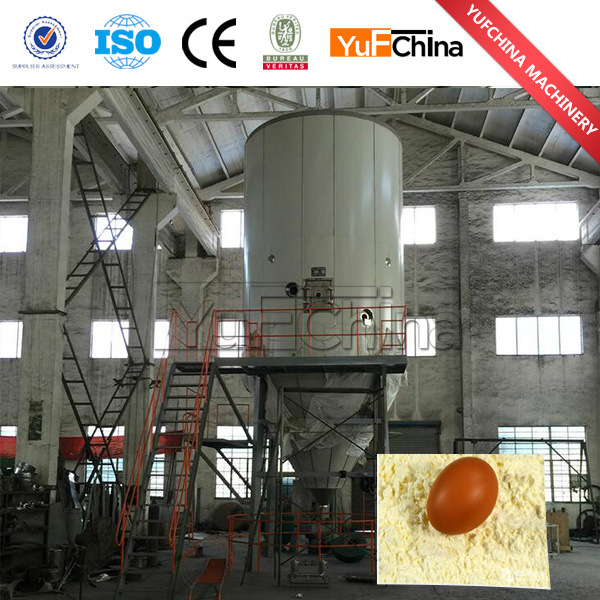

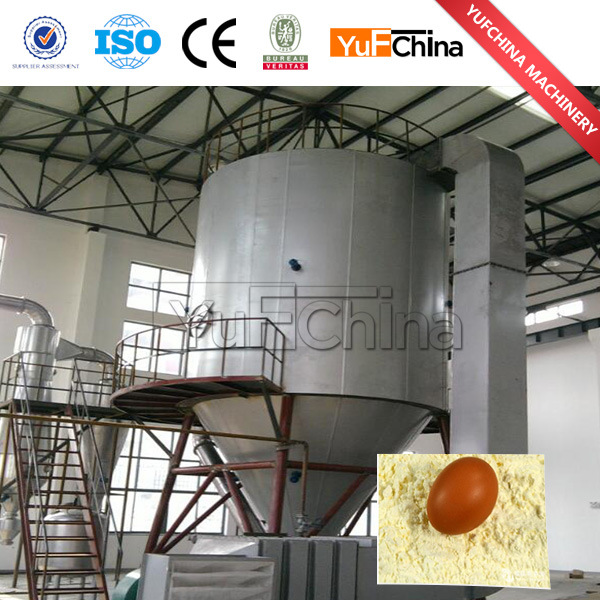

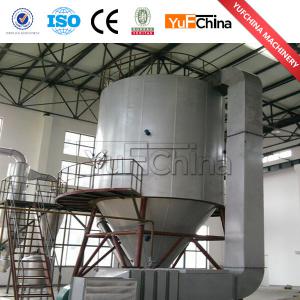

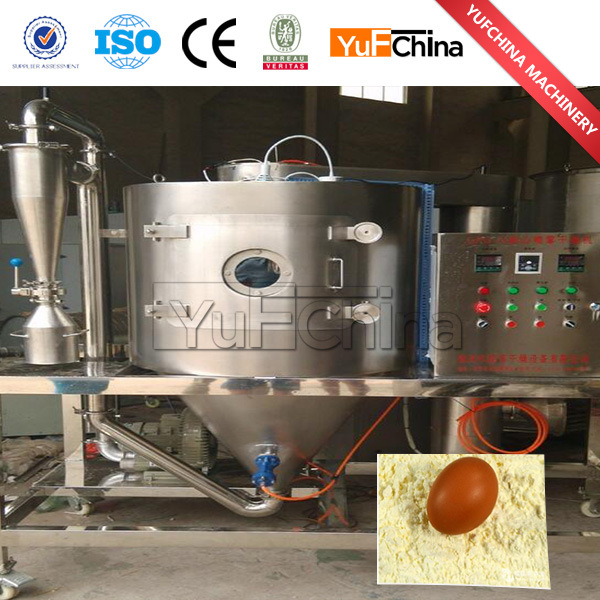

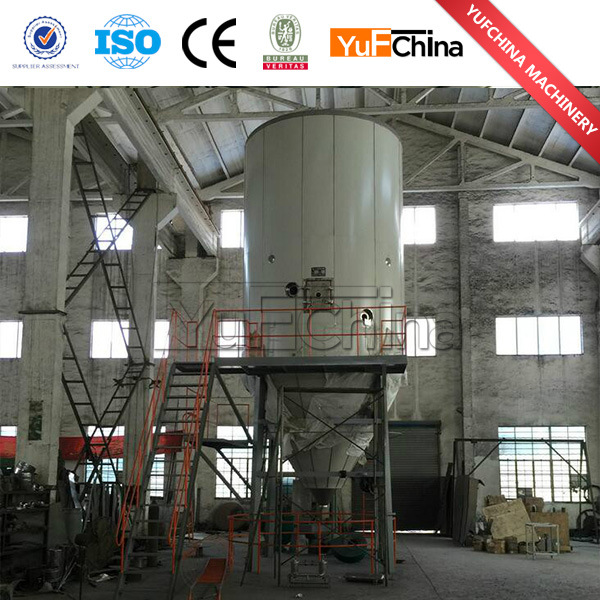

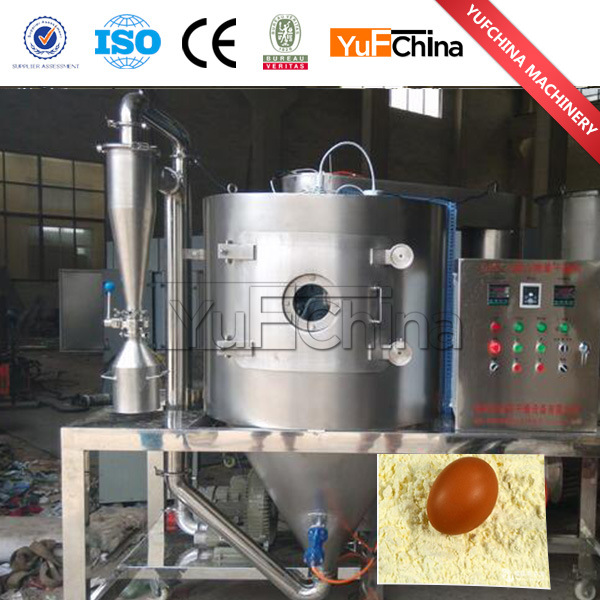

Detail Pictures of Spray Dryer Machine
Contact Information of Spray Dryer Machine
We can design machines according to your needs. If you want to learn more information, please feel free to contact us at any time.
Zhengzhou Yufeng Heavy Machinery CO.,LTD
Tel: +86 371 60395600
Fax:+86 371 67681159
Address: West Section of Gongye Road, Shangjie Industry Area, Zhengzhou, Henan, China
Introduction of Spray Dryer Machine
Spray drying machine is the technology most widely used in the liquid technology shaping and in the drying industry.The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as: solution, emulsion, suspension and pumpable paste states. For this reason,when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
Working Principle of Spray Dryer Machine
After been filtered and heated the air enters into the air distrbutor on the top of the dryer.The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Through the very short time of contacting the heat air,the materials can be dried into the final products.The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.
Technical Parameters of Spray Dryer Machine
| Paramters | 5 | 25 | 50 | 100 | 150 | 200-2000 |
| Inlet temperature ºC | 140~350 Automatically controlled | |||||
| Outlet temperature ºC | ~80-90 | |||||
| Water evaporation | 5 | 25 | 50 | 100 | 150 | 200-2000 |
| capacity kg/h | ||||||
| Drying form of | Compressed air | Mechanism drive | ||||
| centrifugal nozzle | ||||||
| Revolution of atomizer | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
| (r.p.m) | ||||||
| Diameter of atomizing | 50 | 100 | 120 | 140 | 150 | 180-340 |
| disc(mm) | ||||||
| Heating source | Electricity | Electricity+Steam | Electricity+Steam,Oil fuel,gas | Depends on the user | ||
| Max. power of electric | 9 | 36 | 63 | 81 | 99 | |
| heater (KW) | ||||||
| Overall dimension (m) | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | Depends on practical |
| conditions | ||||||
| Dried powder recovery rate % | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
Detail Pictures of Spray Dryer Machine
