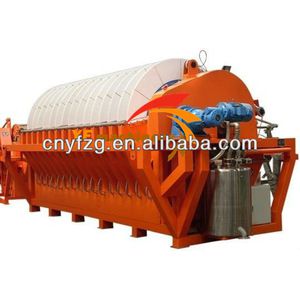

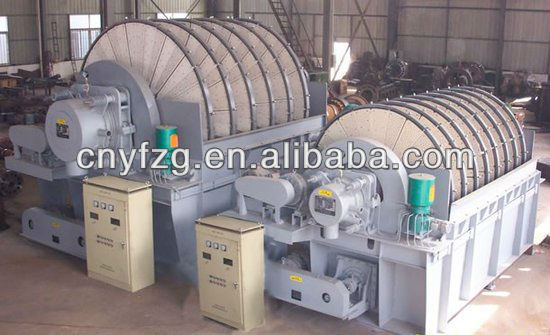

ZPG series metal mining disc vacuum filter fully draw on the advantages of similar foreign models for metal mineral density, the settlement quickly, with solid particles of the filtrate filtrate tube shocks and strong features, for the overall performance and the various components comparability between the optimal design, to ensure that the metallic minerals gain a good indicator of dehydration in the solid-liquid separation.
(1) fan filter dehydration uniform pore distribution, porosity and reasonable size of ribs, made from high-strength engineering plastics,it’s life expectancy increased 1-1.5 times.
(2) filtrate pipe filtration few large, the distribution of the first intra-abdominal volume, improve the exhaust emission rates and the effect of filtrate.
(3) Wear-resistant nylon, single or multi-filament filter cloth so that cake off and difficult to plug the high rate of long service life.
(4) Do multi-point multi-point auto-focus oil pump lubrication.
(5) self-cleaning filter device, to maintain its good effects of dehydration.
(6) Horizontal mandatory high-speed mixing, the use of rubber and graphite shaft packing and non-triple-pressure slurry seal does not leak.
Main Technical Parameters
Filter area(m2) | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 48 | 60 | 72 | 84 | 96 |
Filter plate (pcs) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 4 | 5 | 6 | 7 | 8 |
Filter fans / filter plate (pcs) | 20 | 20 | ||||||||||
Spindle motor power(kw) | 4 | 5.5 | 7.5 | |||||||||
Stirring Motor Power(kw) | 5.5 | 7.5 | 11 | |||||||||
Cake disposal methods | Anti- blow breeze | |||||||||||
Machine weight(t) | 10.4 | 11 | 11.6 | 12.2 | 12.8 | 13.4 | 14 | 18 | 21 | 24 | 27 | 30 |
Handle ability | 0.6~0.85t/(m2.h) |
...
