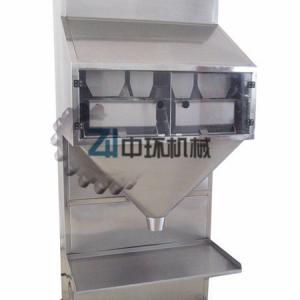

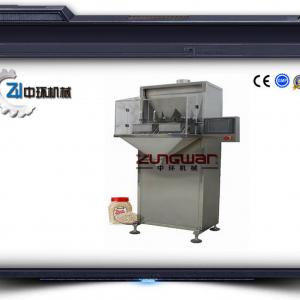

ZHZ-Z2 Filling machine for grain

Brief Introduction:
The vibrating filling packaging machine can do measuring and filling work. It' suitable for the fluidic granular materials, such as rice, sugar, monosodium glutamate, solid drink, glucose, chicken essence, washing powder or expanded granular materials.
Features:
1.Two-independence of the weighing cabinet to weigh: less vulnerable by outside influence, with
separate bags, work fast.
2.Feeder-adjust automatically according the proportion of the material to ensure high-precision and high
fast.
3.Independent single weight sensor: stable performance, high sensitive.
4.Time can be set to memory the current number of the packing, easy to transfer and timely feedback the
rate of qualified products.
5.Chinese interface, time can be set to cooperate with the action, easy to operate.
6.With calibration procedures: equipped with poise and calibration hooks, adjusted at anytime, it's very
useful the weight drift in long time no using.
7.Weighing cabinet is sealed by glass, equipped with the dust collector, easy to collect the dust and
protect the environment of the workshop.
8.The weighing cabinet use the linked way, it can be disassembled directly and easy to clean.
Specification:
9.Metering mode: Vibration product feed-in & weighing
10· Packing weight: 200~5000g
11· Packing arccuracy: ≤±2%
12· Packing speed: 8-15 times/min
13· Power supply: 1P 220V 50~60HZ
14· Total power: 500w
15· Total weight:180Kg
16· Over Dimensions:   690X860X1720MM
17· Hopper volume:  90L
