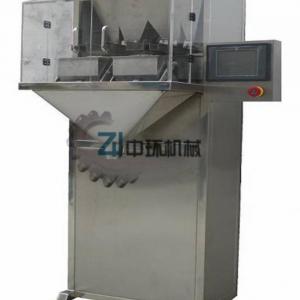

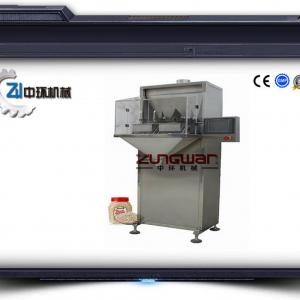

ZHZ-Z1 Filling machine for grain
Brief Introduction:
The vibrating filling packaging machine can do measuring and filling work. It' suitable for the fluidic granular materials, such as rice, sugar, monosodium glutamate, solid drink, glucose, chicken essence, washing powder or expanded granular materials.
Features:
· Two-independence of the weighing cabinet to weigh: less vulnerable by outside influence, with separate bags, work fast.
· Feeder-adjust automatically according the proportion of the material to ensure high-precision and high fast.
· Independent single weight sensor: stable performance, high sensitive.
· Time can be set to memory the current number of the packing, easy to transfer and timely feedback the rate of qualified products.
· Chinese interface, time can be set to cooperate with the action, easy to operate.
· With calibration procedures: equipped with poise and calibration hooks, adjusted at anytime, it's very useful the weight drift in long time no using.
· Weighing cabinet is sealed by glass, equipped with the dust collector, easy to collect the dust and protect the environment of the workshop.
· The weighing cabinet use the linked way, it can be disassembled directly and easy to clean.
Specification:
· Metering mode: Vibration product feed-in & weighing
· Packing weight: 200~2000g
· Packing arccuracy: 100~500g with an error ≤±0.5% ,>500g with an errort≤±0.25%
· Packing speed: 5-15 times/min
· Power supply: 1P 220V 50~60HZ
· Total power: 220w
· Total weight:120Kg
· Over Dimensions: 690X860X1720MM
· Hopper volume: 60L
