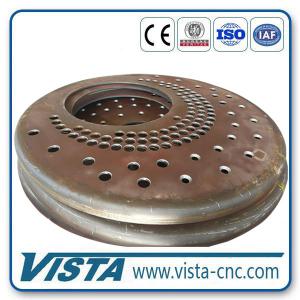

This model of machine can drill the steel and stainless steel. Mainly used for flange drilling of wind power and other industries.The programming for this drilling machine is convenient and intuitive, the realization of CAD/CAM, instead of artificial marking and template drilling,greatly improve production efficiency and workpiece machining accuracy,shorten production preparation time, achieve semi-automatic production.The CNC drilling machine uses high productivity and high cost performancewithin the indexable inner-cooling drill bit for high speed drilling. Each powerhead can be drilling simultaneously or independently.

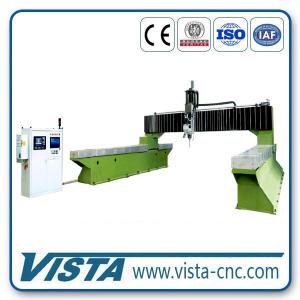

It is mainly composed by the worktable of lathe bed, movable gantry,longitudinal slip board, CNC sliding table, precision spindle drilling power pack,automatic chip conveyor, circulation cooling device, self-lubrication system, hydraulic system and electric system etc.
It is mainly composed by the worktable of lathe bed, movable gantry,longitudinal slip board, CNC sliding table, precision spindle drilling power pack,automatic chip conveyor, circulation cooling device, self-lubrication system, hydraulic system and electric system etc.
| Model | DM3000/2 | |
| work piece | Max. size Length x Width (mm) | 3000 x 3000 |
| Max. thickness (mm) (mm) | 200 | |
| Max Distance to the wortable (mm) | 550 | |
| Power head | Quantity | 2 |
| Drilling capacity(mm) | φ 50 | |

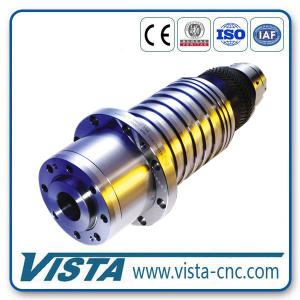

| Type of spindle | Single spindle Slide type CNC servo control power head | |
| Rotation speed ( stepless conversion) (r/min) | 50-1000 | |
| Motor power (kw) | 7.5 | |
| Longitudinal movement of gantry ( X axis ) | Movement speed (m/min) | 0-8 |
| Servo motor power (kw) | 2 x 2 | |
| Transverse movement of power head ( Y axis) | Movement speed (m/min) | 0 - 8 |
| Servo motor power (kw) | 2 | |
| Feeding movement of vertical ram (Z axis) | Max. stroke (mm) | 600 |
| Servo motor power (kw) | 2 | |
| Movement speed (m/min) | 0~4000 | |
| Machine accuracy | Positioning precision | ± 0.1 |
| Re-positioning precision | ± 0.05 | |
| Electrical system | CNC axis | 6 |
| CNC system | FAGOR8055M(SPAIN) | |
| Total power (kw) | ≈ 35 | |
| Gross Weight (t) | (Approx. )25 |
