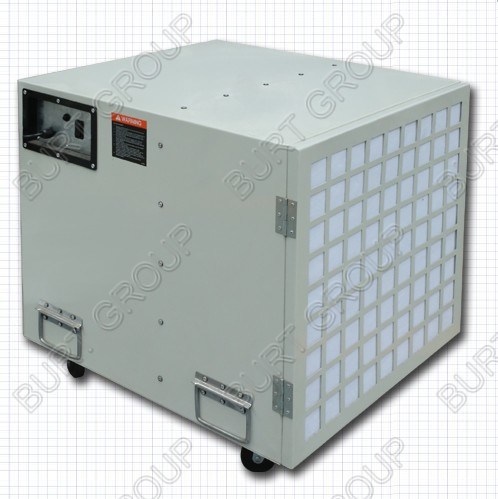

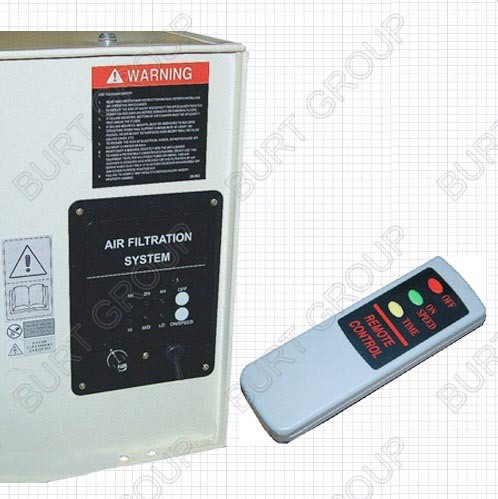

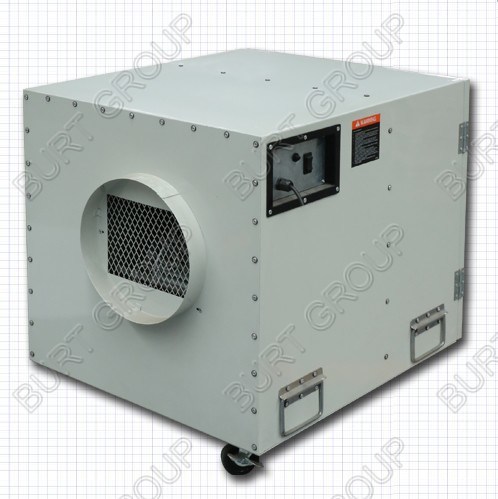

1 to 3/4HP Air Filtration System (TA28)

01)  Motor: 1 to 3/4HP, 110V, 60Hz, two speeds, 15A02)  Air flow: H = 2,000CFM, 56m3/min03)  L = 1,500CFM, 42m3/min04)  Noise: H = 68 dB(A), L = 63 dB(A)05)  Main body: 1.5mm aluminum06)  Filter: 610 x 610 x 25mm, ring panel07)  Hepa fi

Technical Feature

  • Get Latest Price
  • 20 Pieces
  • Qingdao, China
  • 5000/Year
  • L/C, T/T
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
TA28
Filter Number
2
Efficiency
99.98%
Type
Panel Filter
Air Flow(H)
H = 2,000cfm
Trademark
BURT
Specification
CE
Clapboard
without Clapboard
Medium Material
Synthetic Fiber
Filtration Grade
HEPA Filter
Motor
1 to 3/4HP
Air Flow(L)
L = 1, 500cfm
Transport Package
Carton
Origin
Shandong, China

DETAIL DESCRIPTION

01)  Motor: 1 to 3/4HP, 110V, 60Hz, two speeds, 15A
02)  Air flow: H = 2,000CFM, 56m3/min
03)  L = 1,500CFM, 42m3/min
04)  Noise: H = 68 dB(A), L = 63 dB(A)
05)  Main body: 1.5mm aluminum
06)  Filter: 610 x 610 x 25mm, ring panel
07)  Hepa filter : 610 x 610 x 292mm (99.97%)
08)  Overall size: 960 x 700 x 760mm
09)  Net/gross weight: 58/66kg
10)  Packing size: 980 x 730 x 800mm
11)  Units per 20-foot container: 36
12)  Minimum order quantity: 20


1 to 3/4HP Air Filtration System (TA28)1 to 3/4HP Air Filtration System (TA28)1 to 3/4HP Air Filtration System (TA28)
01) Motor: 1 to 3/4HP, 110V, 60Hz, two speeds, 15A

02) Air flow: H = 2, 000CFM, 56m3/min

03) L = 1, 500CFM, 42m3/min

04) Noise: H = 68 dB(A), L = 63 dB(A)

05) Main body: 1.5mm aluminum

06) Filter: 610 x 610 x 25mm, ring panel

07) HEPA filter: 610 x 610 x 292mm (99.97%)

08) Overall size: 960 x 700 x 760mm

09) Net/gross weight: 58/66kg

10) Packing size: 980 x 730 x 800mm

11) Units per 20-foot container: 36

12) Minimum order quantity: 20
