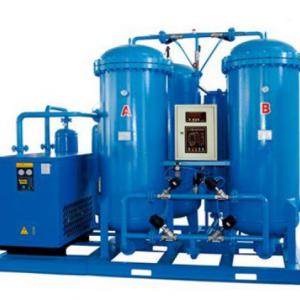

High Efficiency Compressed Air Filtration System

PRIMARY PARAMETERS

Model NO.

TKG-10

Product

High Precision Compressed Air Filter Auto Parts (T

Function

Air Purification

Pressure

Under 1.3MPa

Structure

Gland or Flange Type

Filter Type

Filter Cartridge

Automatic Drainage

Automatic Drain Valve

Air Flow Capacity

1.2-210 Nm3/Min

Filter Stage

Two Stage Filter

Certificate

ISO9001

Material

Stainless Steel

Trademark

GREAT

Transport Package

Export Standard Wooden Case, or as Customer Demand

Specification

4.5kg

Origin

China

HS Code

8414809090

DETAIL DESCRIPTION

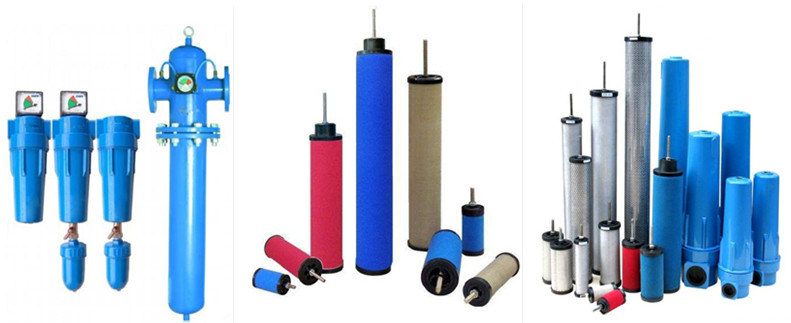

High efficiency Compressed air filtration system

1. Separator /Filter (A-lever air filter):
Apply to large quantity liquid and 3um condensation particle, 5ppm maximum residual oil content, two stage filter.
2. General common conveying air pipe filter (B-lever air filter):
Apply to filtration 1um particle, 1ppm maximum residual oil content, both inside and outside filter element is preventing corrosion.
3. High efficiency removing oil filter (C-lever air filter):
Apply to the fine condensation water vapor and oil mist, can remove 0.01um particle, 0.01ppm maximum residual oil content, both inside and outside filter element is preventing corrosion.
4. Oil vapor filter (D-lever air filter, Deodorization filter):
Apply to filtration oil vapor and hydrocarbon vapor that can be absorbed by activated carbon, 0.003 ppm maximum residual oil content, both inside and outside filter element is preventing corrosion.
5. A point air intake temperature <=80ºC, other point air intake temperature <=66ºC, pressure <=1.3Mpa.

High Efficiency Compressed Air Filtration System

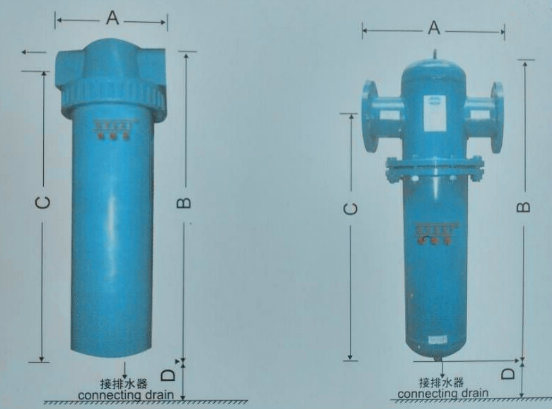

Parameters of this compressed air filter:

type	Nm3/m	Filter model	Weight (kg)	Connection way	Dimension (mm)
A	B	C	D
Gland type	1.2	TKG-1	1.5	G1''	105	300	260	300
2.4	TKG-2	1.5	G1''	105	300	260	300
3.8	TKG-3	1.7	G1/2	125	370	330	300
6.5	TKG-6	3.5	G1/2	135	500	460	300
8.5	TKG-8	4.5	G2	135	635	595	300
Flange type	13.5	TKG-10	4.5	G2	135	635	595	300
17	TKG-15	43	DN65	315	965	830	300
23	TKG-20	45	DN80	315	1125	990	300
27	TKG-25	55	DN80	400	1050	870	300
35	TKG-30	60	DN100	400	1150	970	300
45	TKG-40	85	DN125	460	1220	1050	300
55	TKG-50	110	DN125	510	1100	925	300
65	TKG-60	130	DN125	656	1150	940	300
85	TKG-80	140	DN150	655	1200	950	300
110	TKG-100	150	DN150	655	1220	950	300
210	TKG-200	220	DN250	745	1300	1020	300

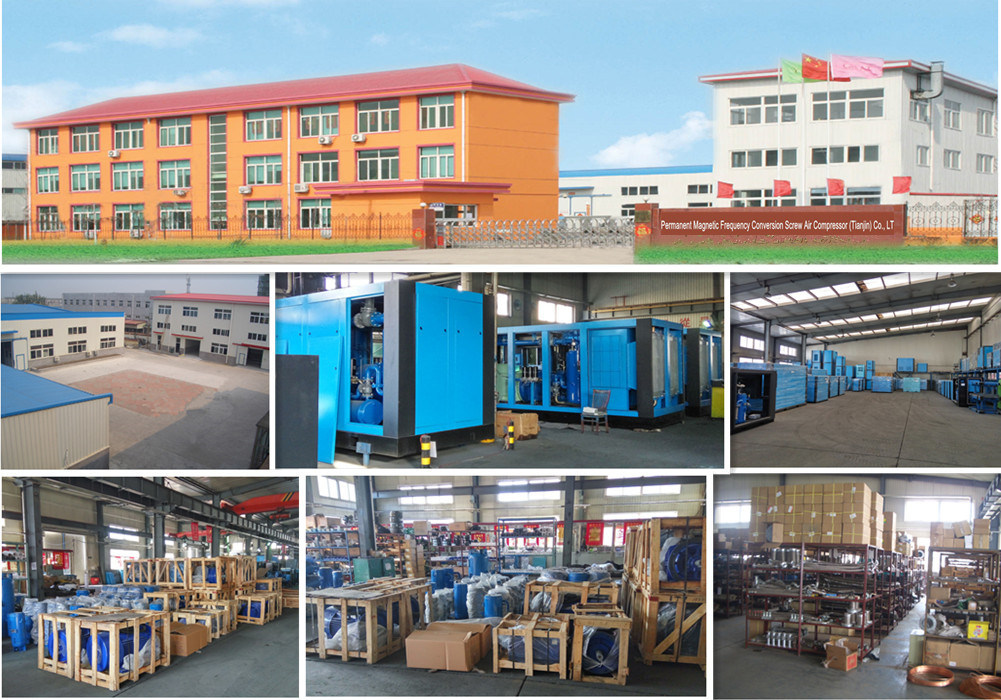

Our factory and workshop:

After sales service:
1. Providing professional air compression program designing for free.
2. Providing our factory original machine parts at lowest price after machine sales.
3. Providing training and guidance for free, customers can send their staff to our factory to learn how to operate the machines.
4. Warranty period: the screw main machine is one year, the bearing is one year, the wear parts of air intake valve, electric components, electromagnetic valve, rate valve are 6 months
5. The air filter, oil filter, oil-water separator, lubricating oil, rubber parts and etc. are not included in warranty range.
