China Industrial Two Stage Compression PM VSD Rotary Screw Air Compressor Manufacturer1. Brife intoduction :Firstly , we would like to introduce our products for you as below:We have 4 series of oil less screw air compressor in brifely[1]. fixed spee

Technical Feature

  • Tianjin, China
  • 100sets/Month
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram, EXW
  • Lubricated
  • Air Cooling
  • Vertical
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~10

PRIMARY PARAMETERS

Model NO.
TKL-90F
Product
Frequency Rotary Screw Compressor
Function
Air Compressor
Air Flow Capacity
2.1-2.65m3/Min
Exhause Pressure
0.7-1.3 MPa
Power
2.2kw - 250kw
Control Method
Intelliegent Microcomputer Control System or PLC
Voltage
380V-10000V/50Hz-60Hz
Oil Content
Under 3ppm
Noise
Under 65 Dba
Cooling Type
Wind or Water Cooling Way
Trademark
GREAT
Transport Package
Export Standard Wooden Case, or as Customer Demand
Specification
1300*850*1257mm
Origin
China
HS Code
8414809090

DETAIL DESCRIPTION

China Industrial Two Stage Compression PM VSD Rotary Screw Air Compressor ManufacturerChina Industrial Two Stage Compression Pm VSD Rotary Screw Air Compressor Manufacturer

1. Brife intoduction :

Firstly , we would like to introduce our products for you as below:

We have 4 series of oil less screw air compressor in brifely

[1]. fixed speed screw air compressor ---- TKL series

[2]. Variable speed screw air compresoer--- TKBP series

[3]. PM motor variable speed screw air compressor ----TKLYC series

[4]. 2 stage compression  PM motor variable speed screw  air compressor --- TKLYC  series



Air compressor, as the generator of compressed air, is an indispensable machine for realizing electrical automation, which is widely used in various processing and manufacturing plants.

And the screw air compressor because of its simple structure, less vulnerable parts, good performance and other advantages , rapidly occupy of compressed air market.

As the most energy-saving and most competitive air compressor, the PM motor variable speed screw air compressor  has the following five advantages:

1). Adopt more efficient permanent magnet motor, which can save 7% to 10% electricity compared with the general three-phase monopod motor

2). Integral shaft structure, reducing transmission loss by 3-5% compared with the use of coupling

3). Constant pressure air setting, how much gas to produce as per how many gas to use, reduce the waste of no effort

4). Adopt dual frequency conversion to reduce pressure difference waste (7% per kilogram)

5). Adopt more efficient centrifugal fan, no blind point of heat dissipation

And 2 stage compression PM motor variable speed screw air compressor   than the common permanent magnet variable frequency air compressor machine has the heavy gas production rate is above 10%, lower noise, run more smoothly, more adapted to high gas comsumption, high environmental requirements of the workshop.

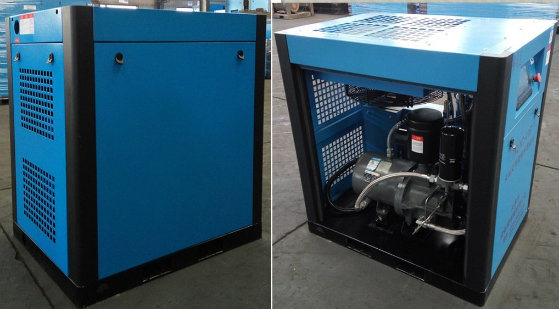

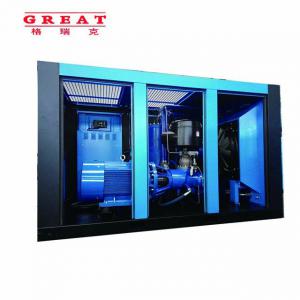

2. Photo:

China Industrial Two Stage Compression Pm VSD Rotary Screw Air Compressor Manufacturer


3. Advantages of the GREAT screw air compressor unit:
1). Approved by ISO9001certificate, SGS, CE and etc..
2). Adopt world famous brand of twin-screw air end, high efficiency, reliable and long use life.
3). Adopt world famous brand of air intake filter, oil filter, air and oil separator, realize high filtration accuracy, compressed air oil content under 3ppm, reach to international advanced standard level.
4). Equip with the most advanced air control system. Adopt air intake valve, intelligent control system and pressure sensor combined control method, can operate by ON and OFF two point, stepless air capacity control system, time-delay stop and automatically start device three air capacity control method, can meet different clients demand.
5). Intelligent microcomputer control system, Chinese and English language operation interface, malfunction display, alarm and machine stop automatically.
6). Adopt high quality and world famous brand of main components, like UK APD oil filter, America AMOT temperature controlling valve, SCHNEIDER electric parts and etc., high efficiency, reliable and long use life.



4. Technical parameter for China Industrial Two Stage Compression PM VSD Rotary Screw Air Compressor Manufacturer:
TypeExhause pressure (Mpa)Air displacemen (m3/min)Power (Kw)Noise (dBa)Dimensions (mm)Outlet pipe sizeWeight (Kg)
TKLYC-15F-II0.8/1.0/1.32.7/2.3/2.215661600*900*1300G1 1/2800
TKLYC-18F-II0.8/1.0/1.33.5/3.0/2.518.5661600*900*1300G1 1/2840
TKLYC-22F-II0.8/1.0/1.34.0/3.5/3.022661600*900*1300G1 1/2860
TKLYC-30F-II0.8/1.0/1.36.4/5.0/4.230681800*1500*1510G1 1/21100
TKLYC-37F-II0.8/1.0/1.37.0/6.0/5.537681800*1500*1510G1 1/21100
TKLYC-45F-II0.8/1.0/1.39.5/8.8/8.145681800*1500*1510DN502200
TKLYC-55F-II0.8/1.0/1.311.5/10.9/10.555682300*1400*1800DN502600
TKLYC-75F-II0.8/1.0/1.316.1/14.5/12.575682300*1400*1800DN652850
TKLYC-90F-II0.8/1.0/1.319.8/16.5/13.590682470*1700*2020DN652950
TKLYC-110F-II0.8/1.0/1.324.0/19.8/17.2110683100*1740*2150DN803000
TKLYC-132F-II0.8/1.0/1.328.3/23.2/19.2132703100*1740*2150DN803100
TKLYC-160F-II0.8/1.0/1.333.3/28.4/23.6160723460*2040*2200DN805400
TKLYC-185F-II0.8/1.0/1.338.5/33.3/28.4185723460*2040*2200DN805600
TKLYC-200F-II0.8/1.0/1.341.3/38.5/33.5200753460*2040*2200DN805800
TKLYC-220F-II0.8/1.0/1.345.5/40.8/37.6220753720*2220*2200DN1006100
TKLYC-250F-II0.8/1.0/1.354.7/44.9/40.3250753720*2220*2200DN1006200

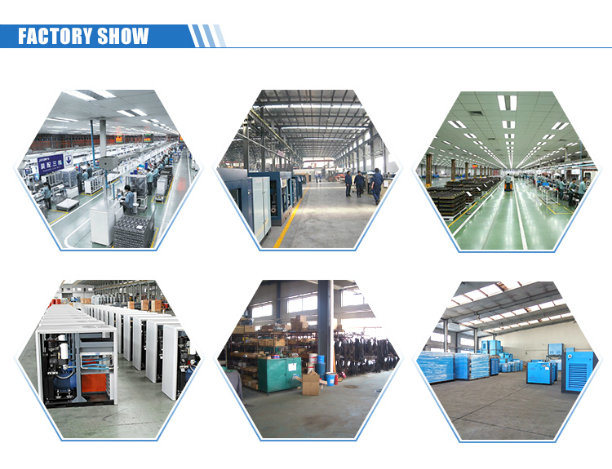

5. Our factory and workshop :

China Industrial Two Stage Compression Pm VSD Rotary Screw Air Compressor Manufacturer
6. After sales service :
1). Providing professional air compression program designing for free.
2). Providing our factory original machine parts at lowest price after machine sales.
3). Providing training and guidance for free, customers can send their staff to our factory to learn how to operate the machines.
4). Warranty period: the screw main machine is one year, the bearing is one year, the wear parts of air intake valve, electric components, electromagnetic valve, rate valve are 6 months
5). The air filter, oil filter, oil-water separator, lubricating oil, rubber parts and etc. are not included in warranty range.





7. Certification and patents :

China Industrial Two Stage Compression Pm VSD Rotary Screw Air Compressor Manufacturer


7. FAQ:
Q1: Are you factory or trade company?
A1: We are factory.
Q2: Warranty terms of your machine?
A2: One year warranty for the machine and technical support according to your needs.
Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.
Q4: How long will you take to arrange production?
A4: 380V 50HZ we can delivery the goods within 20 days. Other electricity or other color we will delivery within 30 days.
Q5: Can you accept OEM orders?
A5: Yes, with professional design team, OEM orders are highly welcome!
