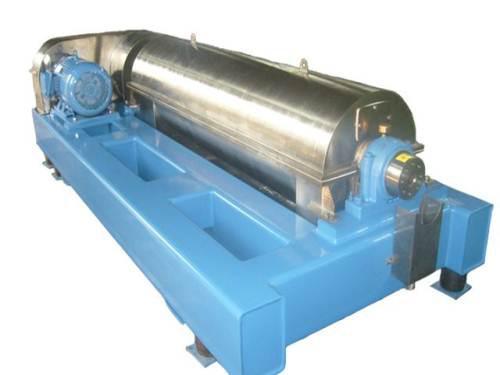

LW Series Horizontal Screw Centrifuge
Application:
LW series horizontal screw centrifuge can realize the function of continuous feeding, separating, washing and discharging, with features of compact structure, continuous operation, stable running, large capacity, easy maintenance and etc. It is widely used in the solid, liquid two-phase and three-phase separation of municipal sewage, industrial sewage, chemical industry, food, pharmaceutical, non-metallic mineral and similar processes.
Features:
1. Good adaptability: Technically, we fully take into account various special demands for the centrifuge, including the specificity of main components and adjustable optimal design. As long as the user informs us of the installation site, physical and chemical properties of materials as well as technical requirements, we will provide the most suitable equipment for the user.
2. High automation: During the running of centrifuge, the feeding, separating and discharging and etc. can be carried out continuously and automatically at high speed. We adopt programmable controller can realize the automatic control of centrifugal separation and centrifugal washing.
3. Good operation stability: The differential used for the centrifuge is cycloid gear differential or planetary gear differential, with large torque, wide adjustable range and etc.
4. Complete and reliable safety protection device: The centrifuge is equipped with multiple protection including torque protection, power control and etc. so as to eliminate or reduce the damage to the machine effectively caused by sudden failure.
Centrifugal Dewatering Principle of Horizontal Screw Centrifuge
Components of Horizontal Screw Centrifuge
Main Technical Parameter of Horizontal Screw Centrifuge
Application:
LW series horizontal screw centrifuge can realize the function of continuous feeding, separating, washing and discharging, with features of compact structure, continuous operation, stable running, large capacity, easy maintenance and etc. It is widely used in the solid, liquid two-phase and three-phase separation of municipal sewage, industrial sewage, chemical industry, food, pharmaceutical, non-metallic mineral and similar processes.
Features:
1. Good adaptability: Technically, we fully take into account various special demands for the centrifuge, including the specificity of main components and adjustable optimal design. As long as the user informs us of the installation site, physical and chemical properties of materials as well as technical requirements, we will provide the most suitable equipment for the user.
2. High automation: During the running of centrifuge, the feeding, separating and discharging and etc. can be carried out continuously and automatically at high speed. We adopt programmable controller can realize the automatic control of centrifugal separation and centrifugal washing.
3. Good operation stability: The differential used for the centrifuge is cycloid gear differential or planetary gear differential, with large torque, wide adjustable range and etc.
4. Complete and reliable safety protection device: The centrifuge is equipped with multiple protection including torque protection, power control and etc. so as to eliminate or reduce the damage to the machine effectively caused by sudden failure.
Centrifugal Dewatering Principle of Horizontal Screw Centrifuge
Components of Horizontal Screw Centrifuge
Main Technical Parameter of Horizontal Screw Centrifuge
| Model | Inner Diameter of Centrifuge Drum (mm) | Valid Length (mm) | Max. Rotary Speed (r/min) | Max. Separation Factor (G) | Max. Capacity (m3/h) |
| WL250 | 250 | 1100 | 5400 | 4080 | 1-5 |
| WL350 | 350 | 1500 | 4200 | 3450 | 3-15 |
| WL430 | 430 | 1600 | 4000 | 3845 | 5-30 |
| WL450 | 450 | 1800 | 3800 | 3632 | 8-35 |
| WL500 | 500 | 2000 | 3500 | 3432 | 10-40 |
| WL530 | 530 | 2200 | 3500 | 3633 | 10-50 |
| WL550 | 550 | 2200 | 3200 | 3418 | 10-55 |
| WL650 | 650 | 2200 | 2800 | 2980 | 15-60 |
| WL800 | 800 | 2200 | 3200 | 2560 | 20-100 |
