Why chose JX Filtration
------Professional manufacture of filter and filter element since 2004!
------Superior quality products with reasonable price!
------Best pre-sale and after-sale service!
Description
Wedge wire screen tube
Wedge wire screen tube, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.
The wedge wire screen tube is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.
Types of wedge wire screen tube
Wedge wire screen tube has various different types, according to the different standard, here are the detailed introduction of the wedge wire screen tube, just refer to them and know more about the round slot tube and get a reference for choice.
According to the surface of wedge wire screen tube
There are two types of wedge wire screen tube seen from the surface. One is the normal types, which has continuous and regular angles on the edge. It is economical, which is suitable for the applications where the accuracy is not very strict. The other type is perfect round type. It is produced by the strict standard, which has better filtering accuracy than the common type. Additional, the perfect round type can be used in the most precise machines and complete the arduous filtering task.
1. Normal type 2.Perfect round type
According to the position and direction of surface profiles and support profiles, the wedge wire screen tube can be divided into four types.
Wire types of wedge wire screen tube
As we all know, the wedge wire screen tube is composed of surface profiles and support profiles. The wire type of surface profile is commonly triangular wire, which is also called V-shaped wire.
The support wire can be triangular wire, round wire and trapezoid wire.
Specifications of wedge wire screen tube
Features of wedge wire screen tube
Packaging & Shipping
Packaging
JX Filtration offer any delivery method for different quantity.
------Professional manufacture of filter and filter element since 2004!
------Superior quality products with reasonable price!
------Best pre-sale and after-sale service!
Description
Wedge wire screen tube
Wedge wire screen tube, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.
The wedge wire screen tube is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.
Types of wedge wire screen tube
Wedge wire screen tube has various different types, according to the different standard, here are the detailed introduction of the wedge wire screen tube, just refer to them and know more about the round slot tube and get a reference for choice.
According to the surface of wedge wire screen tube
There are two types of wedge wire screen tube seen from the surface. One is the normal types, which has continuous and regular angles on the edge. It is economical, which is suitable for the applications where the accuracy is not very strict. The other type is perfect round type. It is produced by the strict standard, which has better filtering accuracy than the common type. Additional, the perfect round type can be used in the most precise machines and complete the arduous filtering task.

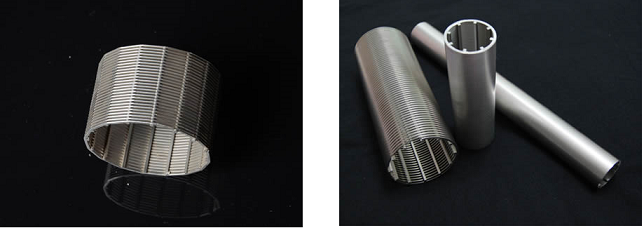

1. Normal type 2.Perfect round type
According to the position and direction of surface profiles and support profiles, the wedge wire screen tube can be divided into four types.
- Radial internal type. The filtering principle is flowing in to out. And the support profile is radial.
- Radial external type. The filtering principle is flowing out to in. It is the standard type. The support profile is also radial.
- Axial internal type. The filtering principle is flowing in to out. And the support profile is axial.
- Axial internal type. The filtering principle is flowing out to in. And the support profile is axial.
Wire types of wedge wire screen tube
As we all know, the wedge wire screen tube is composed of surface profiles and support profiles. The wire type of surface profile is commonly triangular wire, which is also called V-shaped wire.
The support wire can be triangular wire, round wire and trapezoid wire.
Specifications of wedge wire screen tube
| Material | stainless steel 304, 304L, 316, 316L, 321, etc. |
| Tube diameter | 25 mm - 1500 mm |
| Tube length | 0.3 m, 0.6 m, 1 m, 2 m, 3 m, 6 m and 12 m. Special sizes can be customized |
| Slot size | 0.05 mm - 2.5 mm |
| Surface profile type | triangle wire |
| Support profile | triangle wire, round wire, flat bar or wedge wire |
Features of wedge wire screen tube
- Accurate filtering performance.
- High efficiency.
- Narrow slot openings.
- Normal or high grade type for choice.
- Various edge types.
- Wide range of diameters for choice.
- Special sizes can be customized.
- Economical but high grade.
- Corrosion resistance.
- Rust resistance.
- Long service life and durable.
- Petroleum industry. Oil filtration.
- Water treatment industry. Desalination of seawater, treatment of industrial water and domestic water. Water softening treatment.
- Chemical industry. End products of chemical organic solution filtration, such as acid, alkali liquid filtration, alcohol and other products filtering.
- Hydro-geological exploration.
- Drilling construction.
- Geothermal development.
Packaging & Shipping
Packaging
- All the products are packed in seaworthy wooden cases.
- Any special requirement for package, please feel free to tell us.
JX Filtration offer any delivery method for different quantity.
