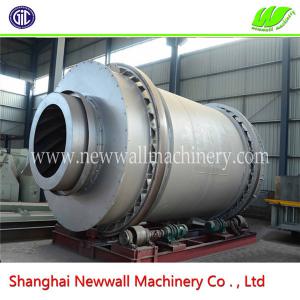

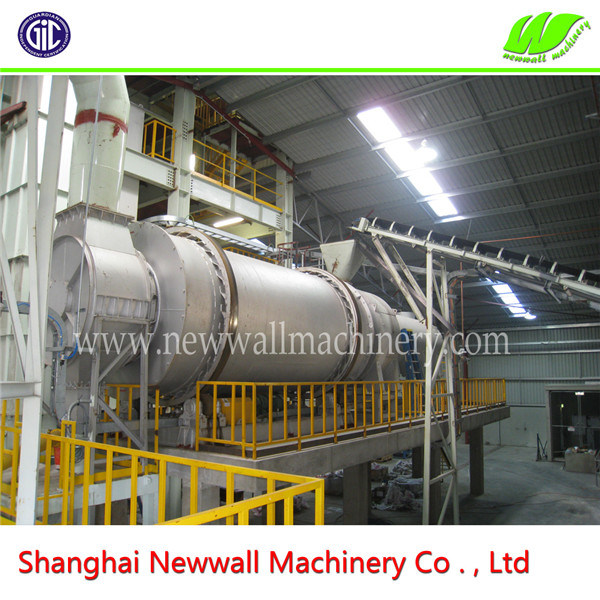

Three cylinder sand dryer
The machine can be applied in drying raw materials such as yellow sand, slag, clay, quartz sand etc...It's widely used in industries such as dry mortar, cement, building materials, glass, chemicals, and casting etc.
Advantage:
1. Three-cylinder dryer can take full advantage of excess heat, reduce heat loss and increase the heat exchange area, making the unit evaporation intensity of the dryer greatly improved, thereby effectively improving the heat energy utilization rate, reducing the energy consumption and making the heat efficiency of three-cylinder dryer improved in a wider range. Compared with single-cylinder dryer with the same efficiency, its heat efficiency is improved about 50% and energy consumption saving doubles.
2. Because the cylinder length of the three-cylinder dryer is one third of single-cylinder dryer and the base area saves about 60% than the single-cylinder dryer, the base investment is reduced correspondingly.

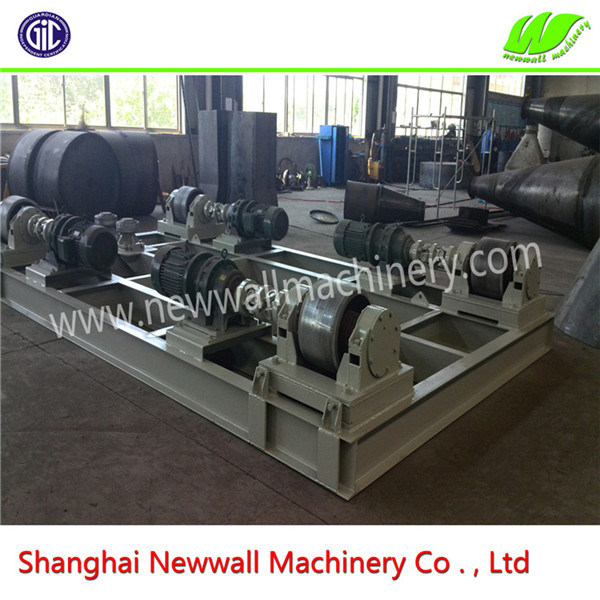

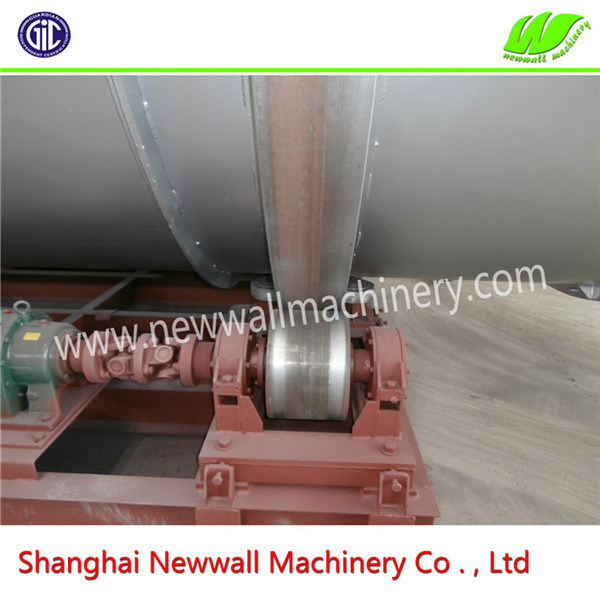

3. The dryer drives by adopting the friction between supporting roller and belting leather, and the transmission power is low, thereby reducing the noises when the equipment working.
4. The cylinder sealing system of the dryer adopts micro-contact technology, with better sealing effect and reducing the dust pollution.
5. The cylinder and raising material board of the dryer both adopt alloy steel plates which is double service life of common steel plates.

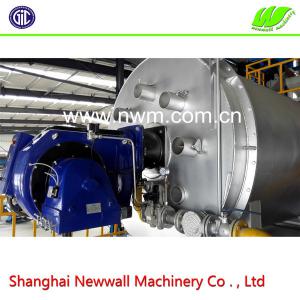

6. Three-cylinder dryer can use coal, oil, gas as fuel, can dry different shapes of material, such as lump, granular, powder and various materials.
Remark: It's based on the original moisture is 7%, the final moisture is 0.5%.
The machine can be applied in drying raw materials such as yellow sand, slag, clay, quartz sand etc...It's widely used in industries such as dry mortar, cement, building materials, glass, chemicals, and casting etc.
Advantage:
1. Three-cylinder dryer can take full advantage of excess heat, reduce heat loss and increase the heat exchange area, making the unit evaporation intensity of the dryer greatly improved, thereby effectively improving the heat energy utilization rate, reducing the energy consumption and making the heat efficiency of three-cylinder dryer improved in a wider range. Compared with single-cylinder dryer with the same efficiency, its heat efficiency is improved about 50% and energy consumption saving doubles.
2. Because the cylinder length of the three-cylinder dryer is one third of single-cylinder dryer and the base area saves about 60% than the single-cylinder dryer, the base investment is reduced correspondingly.
3. The dryer drives by adopting the friction between supporting roller and belting leather, and the transmission power is low, thereby reducing the noises when the equipment working.
4. The cylinder sealing system of the dryer adopts micro-contact technology, with better sealing effect and reducing the dust pollution.
5. The cylinder and raising material board of the dryer both adopt alloy steel plates which is double service life of common steel plates.
6. Three-cylinder dryer can use coal, oil, gas as fuel, can dry different shapes of material, such as lump, granular, powder and various materials.
Remark: It's based on the original moisture is 7%, the final moisture is 0.5%.
| Model | HG10 | HG20 | HG30 | HG40 | HG50 | HG60 |
| Theoretical production output(t/h) | 10 | 20 | 30 | 40 | 50 | 60 |
| Power(Kw) | 11 | 15 | 22 | 22 | 26 | 44 |
| Coal consumption(Kg, Each ton of dry sand/coal) | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 |
| Thermal efficiency(%) | 80% | 80% | 80% | 80% | 80% | 80% |
