Three drum sand dryer
The three drum sand dryer can be applied in drying raw materials such as yellow sand, slag, clay, quartz sand etc...It's widely used in industries such as dry mortar, cement, building materials, glass, chemicals, and casting etc.

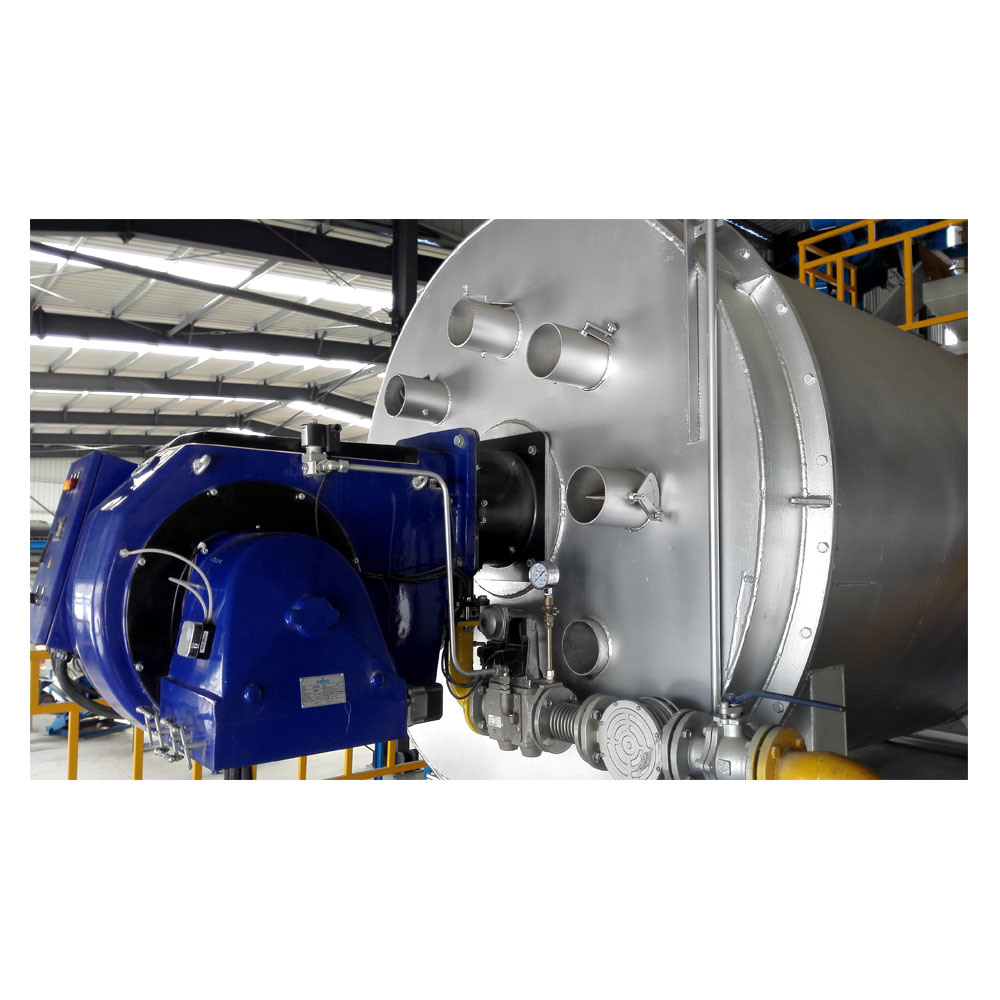

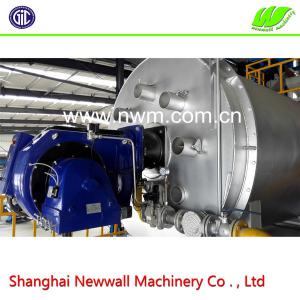

the heat efficiency of three drum sand dryer can be up to 80%. shorter length, it's easy to arrange the work site. gas burner is clean and save space.
General description:

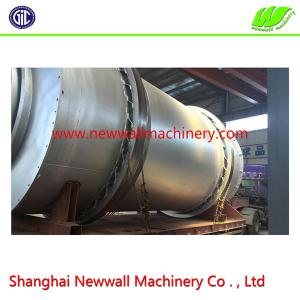

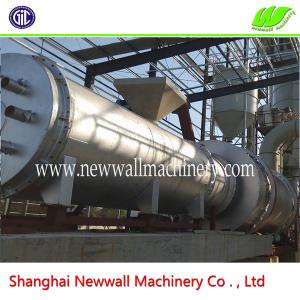

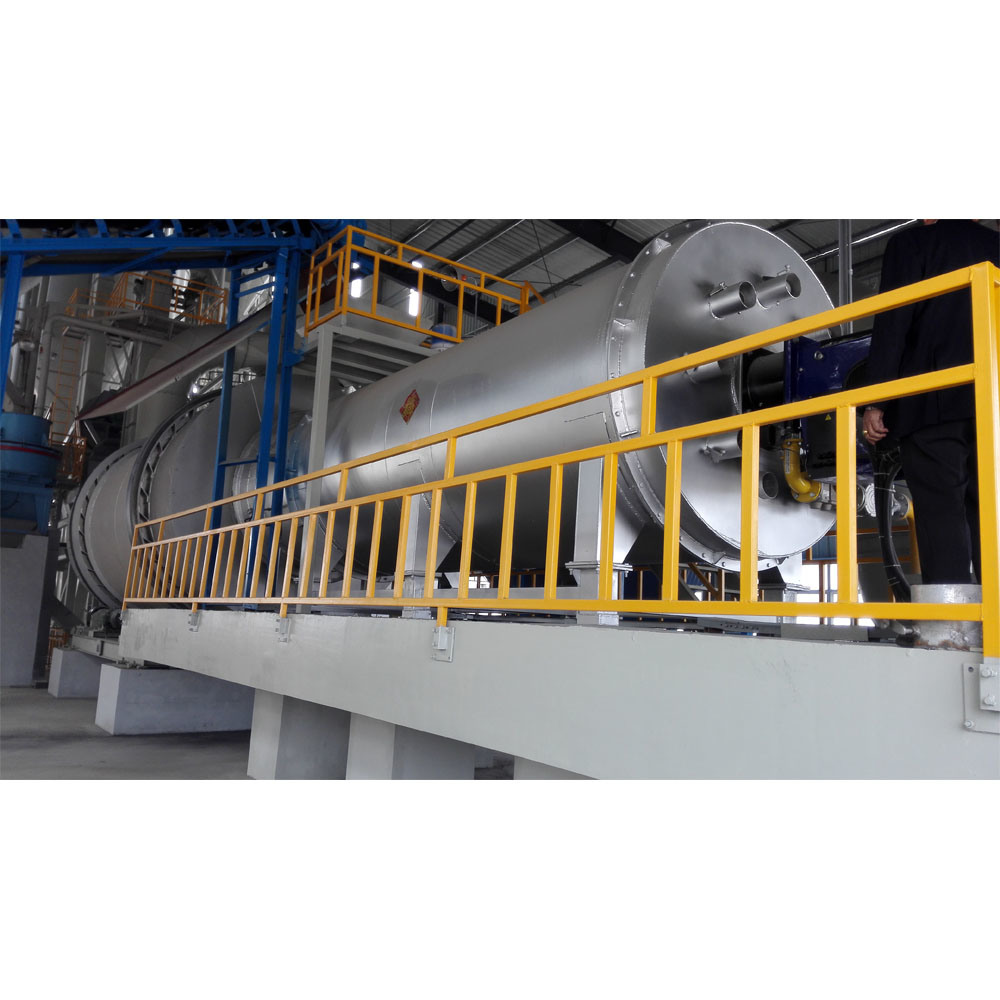

The dryer is assembled by three concentric-cylinders which halved joint with different diameters. Computer optimized stock
guide and lifting blade with different angles and spacing are installed inside the
cylinder, the structure can ensure that the material being dried runs along the
direction of screw under the impact of gravitation, stay sufficient time and good
dispersion in the cylinder to let the material exchange with the heat airflow from
air heating furnace inside of the cylinder. The special three-cylinder structure
makes the inner cylinder and middle cylinder being surrounded by the outer
cylinder to form a self-contained thermal insulation system, the radiated heat
from surface of inner and middle cylinder assist heat the material in the outer
cylinder, but the outer cylinder is at the low temperature end, so the heat
dissipation area and heat loss is reduced significantly.
Advantage:
1.Energy saving, the heat efficiency can be up to 80%,
2. Save space, just the 1/3 of single cylinder dryer.

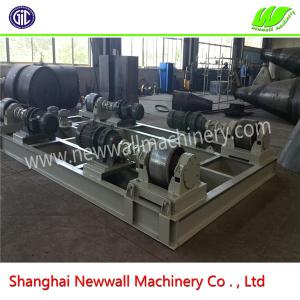

3. Friction transmission, lower noise

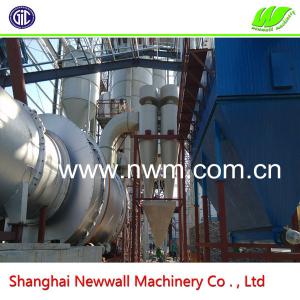

4. Low dust pollution
5. The cylinder and flying plate use alloy steel, double service life than normal steel.
6. Can use coal, gas or oil as fuel.
