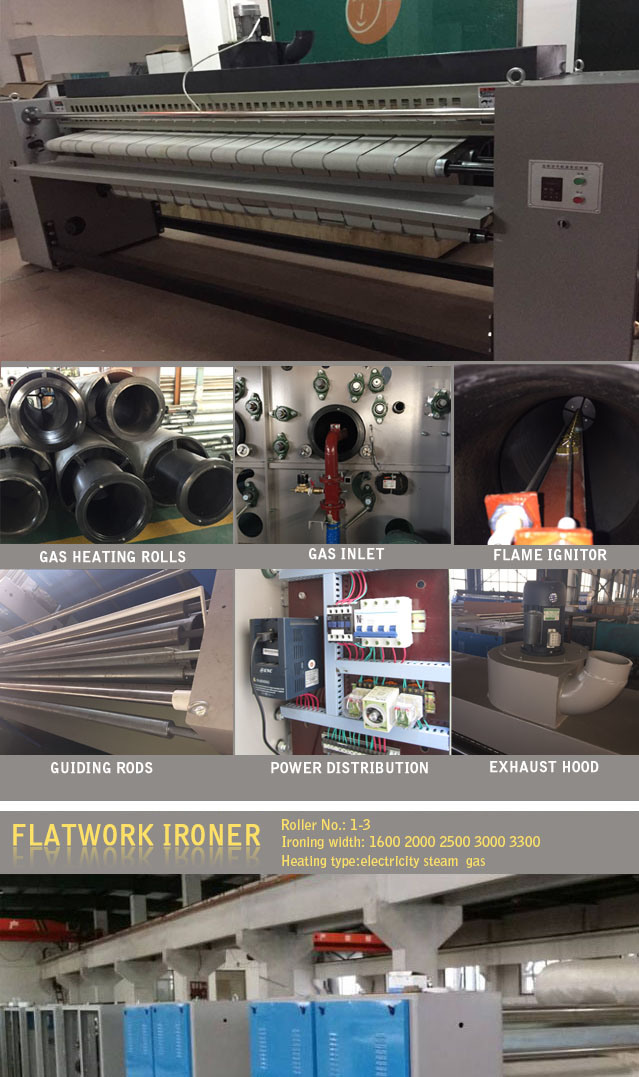

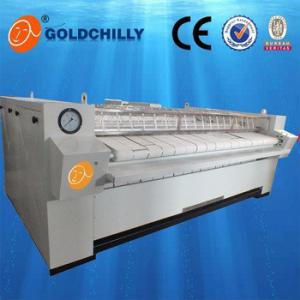

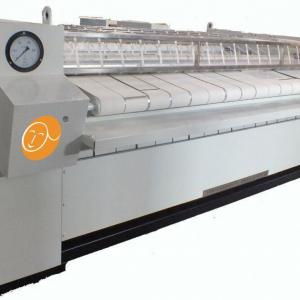

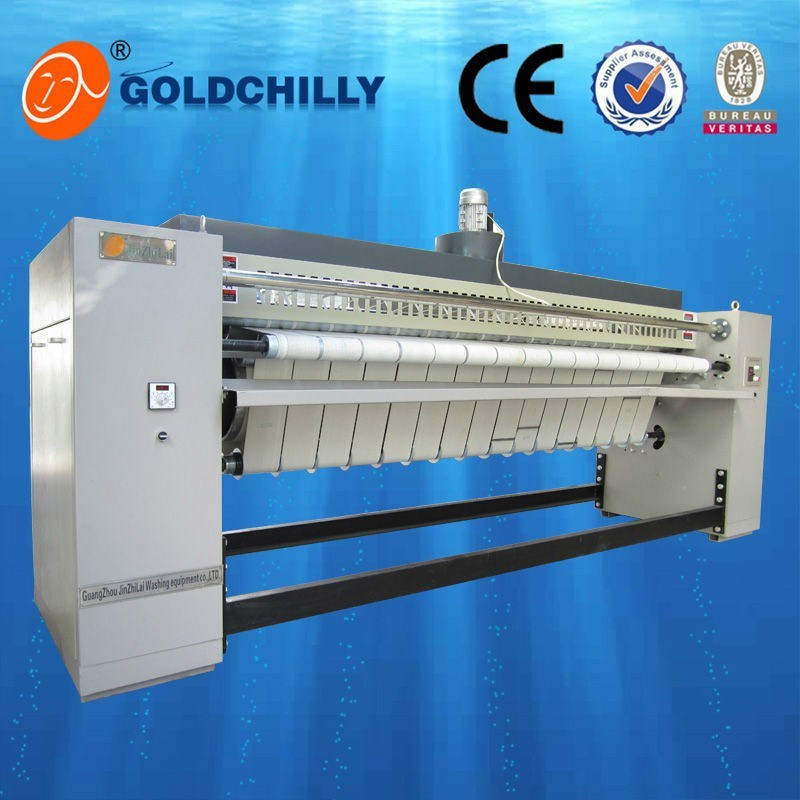

Bed Sheet Flatwork Ironer with 1 to 5 Rollers CE Approved
Newly developed energy saving industrial dryers. Easy to operate, wide drying
application.
1. High heating efficiency, convenient to use suitable for LPG or LNG. Low energy consumption, fast heat exchange and efficient heat energy application.
2. Drum with well spread large punched holes which ensure sufficient hot airflow so that clothing is evenly dried.
3. Big loading/ unloading door design to allow easy loading/unloading. Door rim is being designed so that clothing can be uploading from drum with ease. Equipped with safety door lock to prevent drum from rotating when loading door being opened.
4. "Pull out" type of filter system which allow easy cleaning. It has powerful
suction fan with large blade to facilitate good air flow and preventing ducting get stuck with dust and dirt.
5. V-belt driven with speed reduction. Low noise level, low vibration, durable and
easy to maintain.
6. Micro-processor control system allows drying time and temperature setting
using soft-touch key pad.
The controller is well fitted to give good physical appearance.
| Specification | Unit | Y-2500 ID | Y-2800 ID | Y-3000 ID | Y-2500 IID | Y-2800 IID | Y-3000 IID | Y-2800 IIIZ | Y-3000 IIIZ | |
| Max Ironing Width | mm | 2500 | 2800 | 3000 | 2500 | 2800 | 3000 | 2800 | 3000 | |
| Diameter of Roll | mm | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
| No of Rolls | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | ||
| Ironing Speed | m/min | 0-9 | 0-9 | 0-9 | 0-18 | 0-18 | 0-18 | 0-25 | 0-25 | |
| Heating Type | Gas Heating | |||||||||
| Power Supply | v/p/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | |
| Motor Power | kW | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | |
| Gas | M³ | 3-4 | 3-4 | 3-4 | 6-7 | 6-7 | 6-7 | 9-10 | 9-10 | |
| External dimension | H | mm | 1260 | 1260 | 1260 | 1370 | 1370 | 1370 | 1370 | 1370 |
| D | 1400 | 1400 | 1400 | 2150 | 2150 | 2150 | 3000 | 3000 | ||
| W | 3740 | 4040 | 4240 | 3740 | 4040 | 4240 | 4040 | 4240 | ||
| Machine Weight | kg | 1000 | 1030 | 1100 | 1920 | 1980 | 2040 | 2750 | 2900 |
Apply in: Laundry shop / Hotel accessory products:
1.) Laundry shop
a. Small laundry shop equipment: ( <20 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment.
b. Middle laundry shop equipment: ( 20m²-40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor.
c. Large laundry shop equipment: ( >40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor,stain removal table,form finisher,clothes disinfection cabinet,shoes washing machine,shoes dryinging machine
2). Hotel
a. Small hotel ( <50 rooms)
washer-extractor,drying machine,ironing machine
b. Large hotel (> 50 rooms)
washer-extractor,drying machine,ironing machine,folding machine,dry cleaning machine,press machine.
Why Choose Us:
1).We,Guangzhou Jinzhilai Washing Equipment Co.,Ltd. is a superior laundry
equipment manufacturer, always focus on the developments ;We passed ISO9001:2008 and CE and BV etc.. ,thus we can ensure the quality,delivery time and best price, we welcome your visiting anytime.
2). We are 30 years expierenced in this feild , can satisfy our customer with every requirments, our products covers all range of laundry products. we provide complet laundry solution for samll laundry shops to large laundry projects.
3).We got professional engineering team, timely follow up to the use status of our machines, if any problem happens,will be solved in soon also We have partnership with some country's local engineering. Can solve the in a short time.
4).Small workshops try to sell just for once, no after services provided, no further developments at all ;Small workshop takes no credit, fraud on the quality,quantity, capacities etc.
5).Some trading company which has 2 or 3 workers managed to compete onetime business, and next its very hard to look for them. They are shift able,in order to survive temporarily, by every means, they even have the second-handed machines to sell to you.
