GOOD Energy saving Electric-Heat 1600-3500mm chest and roller laundry automatic ironing machine with Folding machine
Introduction of industrial ironing machine
1. Simple chain drive mechanism with single motor
2. Heating roll made of high quality galvanized drum
3. Large contact area of 200 degree to maximum heating exchange
4. Variable speed frequency inverter control, users can choose the suitable speed for different textiles.
5. Gradual speed increment between rolls to improve ironing quality by stretching effect
6. Equipped with finger protection bar
7. Simple control with on/off button
8. Heating roll and guide shaft drive simultaneously
9. Importen gas/LPG burner saves 30% gas/LPG consumption.

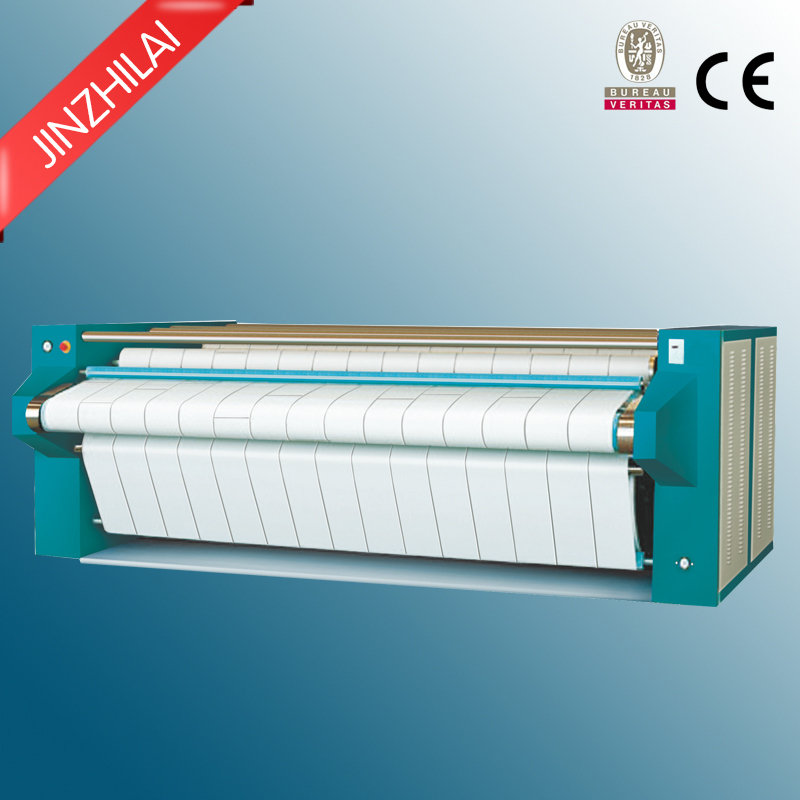

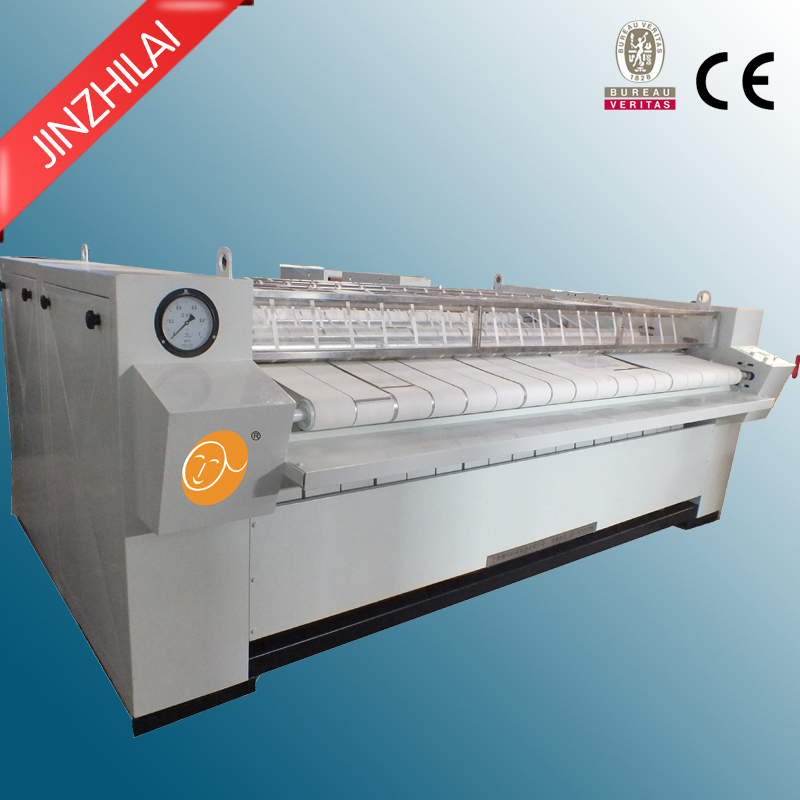

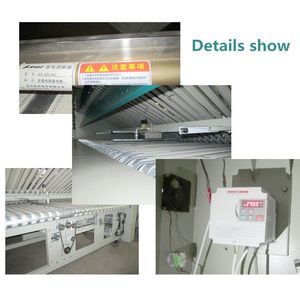

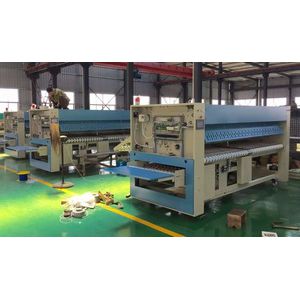

industrial ironing machine picture:
industrial ironing machine specification:
| Model | Unit | Y-1600ID | Y-1800ID | Y-2200ID | Y-2500ID | Y-2800ID | Y-3000ID |
| Max Ironing Width | mm | 1600 | 1800 | 2200 | 2500 | 2800 | 3000 |
| Diameter of Roll | mm | 800 | 800 | 800 | 800 | 800 | 800 |
| No of Rolls | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Ironing Speed | m/min | 0-9 | 0-9 | 0-9 | 0-9 | 0-9 | 0-9 |
| Steam Pressure | MPa | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
| Steam Pipe Diameter | inch | G1½" | G1½" | G1½" | G1½" | G1½" | G1½" |
| Condensate inlet | inch | G1½" | G1½" | G1½" | G1½" | G1½" | G1½" |
| Heating Type | - | Electrical/Steam/Gas(LGP) | |||||
| Power Supply | v/p/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Motor Power | kW | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Steam sumption | kg | 85 | 90 | 95 | 100 | 120 | 140 |
| Electricity heating power | kw | 23 | 26 | 28 | 30 | 32 | 36 |
| Machine Weight | kg | 2000 | 2015 | 2130 | 2150 | 2300 | 2450 |
| Dimension | mm | 3150*1470*1420 | 3350*1470*1420 | 3540*1470*1420 | 3540*1470*1420 | 3840*1470*1420 | 4040*1470*1420 |

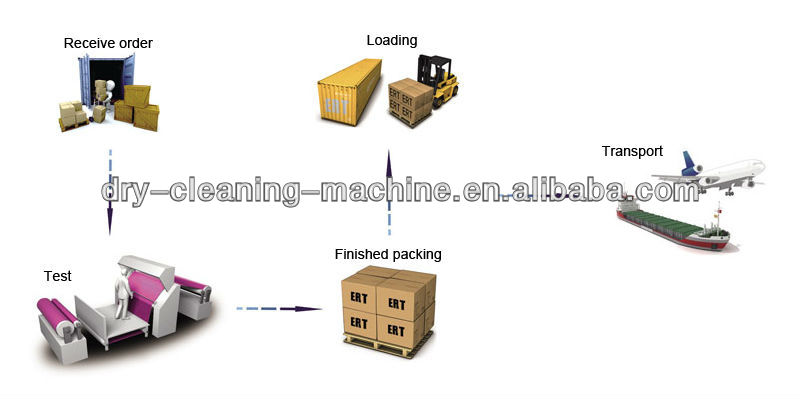

industrial ironing machine delivery process
industrial ironing machine transportation

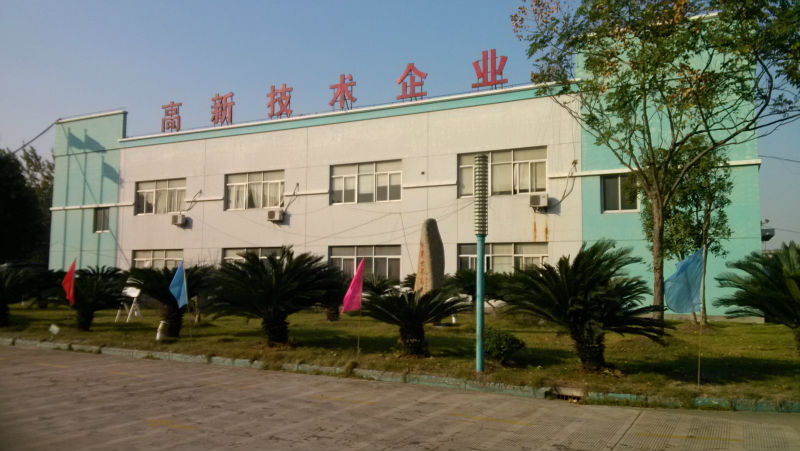

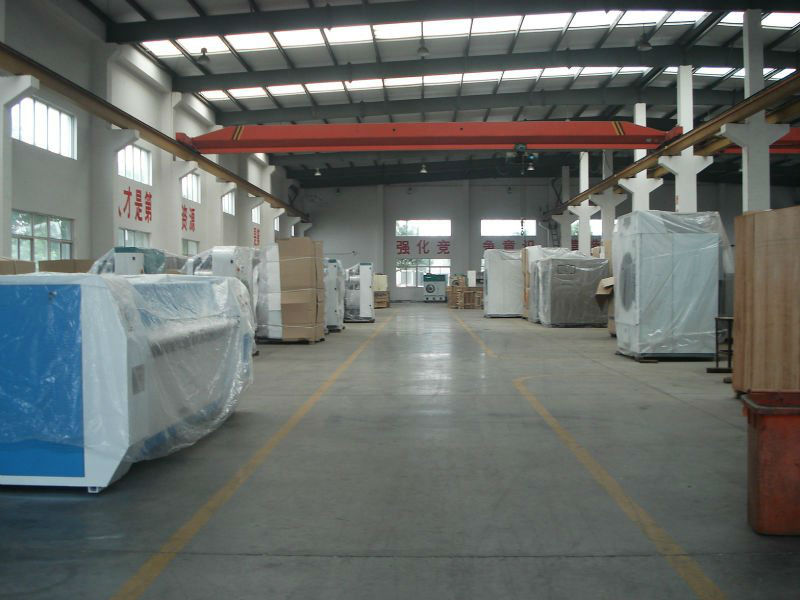

Our Factory
Jinzhilai international sales team
FAQ
Q. Are you a factory or just a trading company?
A:Our company was founded in 2006. It is a professional manufacturer specializing in laundry and dry cleaning equipments.
We have 7,000 chain shops. OEM and ODM orders have been accepted from all over the world for 8 years.
Our products are popularly used in hotels, hospitals, restaurants, schools, laundries, etc.They are with a good reputation both at home
and abroad.They have been exported to Southeast Asia,Middle East,Africa,South America,Europe and other countries and regions.
Q. How about the operation of dry cleaning machine?
A: Dont worry! It is very simple to operate this machine. We have professional user's manual and operation video.
Just normal workers can operate it well after brief training.
Q. Could you tell me the advantages of your washer extractor?
A: Steel shell drawing board manufacturing,permanent non-rusting ,durable,beauty.
GB thicker body material, then machine uses spray process, even if the long term use will not damaged.
Full suspension design, made to increase the shock absorbers,vibration,low noise.
Q. Do you have a kind of machine with three functions (washing,extracting and drying)?
A:We have several kinds of machines.It is double layered system.Washing, dewatering, drying centralized control of all computer board.
A machine completely replace the traditional two machines elution machine and dryer. The whole structure is reasonable and compact footprint to conserve 100%.
Q. How to place an order?
A:Please read the information in this site and get full understanding about our products.if you have any other concern,
please contact our sales dept by mail to: sales6@jinzhilai.com.cn
Select the printing system model you prefer. Confirm the details with us by sending email.
Q.How about the payment?
A:1.Payment term: 100% payment before shipment or 30% payment as down payment.
2.Payment methods: L/C,T/T,Western Union,cash
Q.What’s the machine warranty on the machines?
A:We provide free parts and parts delivery, when manufacture defects has been detected during normal operation under warranty period.
All parts are under TWO YEARS WARRANTY with defects from manufacturer. All electronic parts and components are also under this guarantee.
Q.When can you delivery the goods after I place the order?
A: About 7-20 working days after receiving the deposit,the shipment will be arranged.
Q: I come from Australia, Our power supply is 415v, 3phase, 50hz, can you provide it?
A: Thanks for your questions. please don't worry, we are a professional manufacturer, we can customize the power supply for you without any problem.
