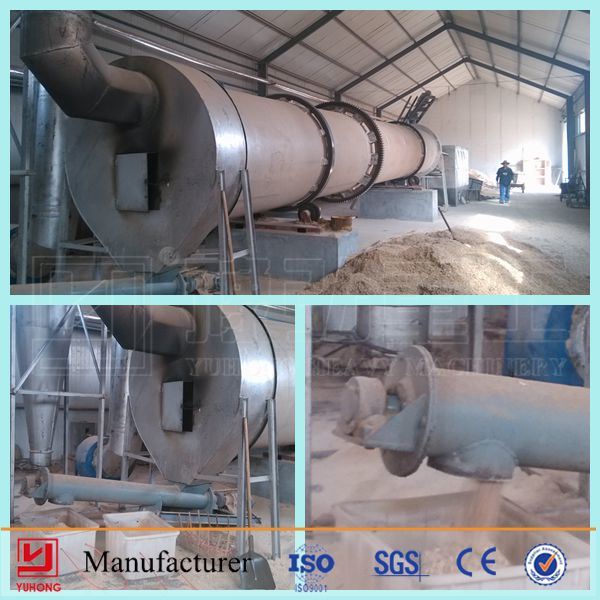

2016Hot Sale Henan Yuhong ISO9001 & CE Approved Sawdust Rotary Dryer
Why to using YUHONG Wood Chips Rotary Dryer, Sawdust Rotary Dryer, Biomass Rotary Dryer dry biomass?
Preparing biomass for briquetting, pelleting or direct burning.
Drying of biomass (sugar cane bagasse, wood bark, sawdust, wood shavings and other types) serves as a preliminary stage of pelleting, briquetting and gasification. Reducing the moisture of biomass to 10-15%, its calorific value is increased from 2kWh/kg to approximately 4.5kWh/kg.
This process reduces the costs of transport, storage and creates ideal conditions for direct combustion or biomass briquettes for high quality. The drying process also ensures the reduction of emissions during combustion of the biomass and also reduce the amount of biomass consumed during burning.
Direct drying
This type of dryer is universal and is basically a rotating drum that inputs both the product to dry and heat drying fluid at an elevated temperature (300-800 ° C).
Indirect drying
In the case of the indirect drying, heat transfer fluid is the actual air heated through a heat exchanger, passing through the dryer and biomass and through a condenser to separate the substance evaporated, to be heated and then returns to be used again.
So is formed a closed circuit. The only are the emissions to the atmosphere gases from the heat zones. A process of high efficiency environmental point of view, suitable for products which are highly toxic volatile substances.
1. Introduction of YUHONG Wood Chips Rotary Dryer, Sawdust Rotary Dryer, Biomass Rotary Dryer
YUHONG design and manufacture a range of Rotary Dryers, which together with years of experience means that we can select the machine most suited to your particular application.
More than 20 years of experience has taught YUHONG that developing a good drying system begins with experienced process engineering and equipment designs that are tailored to suit the specific material and load to be dried. YUHONG pioneered the single pass dryer with satellite center assembly, which has become the industry standard. In addition, many other proprietary features like bolt-in flighting and drive teeth allow for greater longevity at a lower maintenance cost.
YUHONG's rotary dryer systems are all of heavy-duty industrial quality and renowned in many industries for their low maintenance, high efficiency and evaporation rates, and low stack emissions. YUHONG offers many standard dryer designs, ranging from 3 to 20 foot diameter with lengths up to 60 feet, but can design virtually any system the customer's needs require.
2. Application of YUHONG Wood Chips Rotary Dryer, Sawdust Rotary Dryer, Biomass Rotary Dryer
Rotary dryer suitable for: Mineral processing, manufacturing Chemical, petrochemical, pharmaceutical.
Applications for drying these main materials below:
Sludge
Bark/Wood chips
Sawdust
Wood Residues
Bagasse
3. Main Advantage of YUHONG Wood Chips Rotary Dryer, Sawdust Rotary Dryer, Biomass Rotary Dryer
Simple system
Suiltable for using a variety of fuels
Years of production experience drier, covering all types
Can be installed anywhere in the world
Really understand the process conditions
Interior engineering design custom installation applications
4. Working Priciple of YUHONG Wood Chips Rotary Dryer, Sawdust Rotary Dryer, Rotary Biomass Dryer

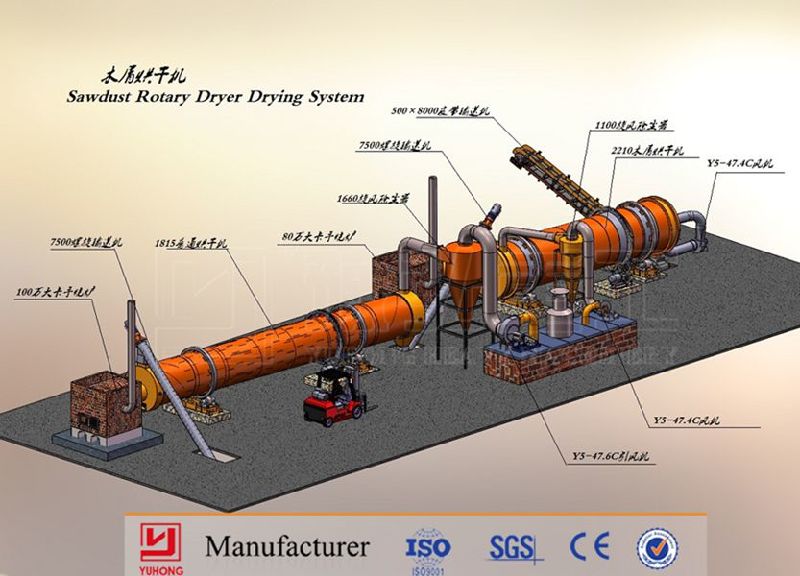

Slightly inclined rotary dryer, a cylindrical housing supported by two tires, wheels taken off a set of rollers. Both ends of dryer sealed to prevent leakage of air and materials. Rotary dryer can handle different sizes, different material composition, application range is very fat pan. Raising the material mechanical strength, thin filter cake can be dried, crude mineral lumps broken while beneficial to improve the uniformity of the dried product.
Why to using YUHONG Wood Chips Rotary Dryer, Sawdust Rotary Dryer, Biomass Rotary Dryer dry biomass?
Preparing biomass for briquetting, pelleting or direct burning.
Drying of biomass (sugar cane bagasse, wood bark, sawdust, wood shavings and other types) serves as a preliminary stage of pelleting, briquetting and gasification. Reducing the moisture of biomass to 10-15%, its calorific value is increased from 2kWh/kg to approximately 4.5kWh/kg.
This process reduces the costs of transport, storage and creates ideal conditions for direct combustion or biomass briquettes for high quality. The drying process also ensures the reduction of emissions during combustion of the biomass and also reduce the amount of biomass consumed during burning.
Direct drying
This type of dryer is universal and is basically a rotating drum that inputs both the product to dry and heat drying fluid at an elevated temperature (300-800 ° C).
Indirect drying
In the case of the indirect drying, heat transfer fluid is the actual air heated through a heat exchanger, passing through the dryer and biomass and through a condenser to separate the substance evaporated, to be heated and then returns to be used again.
So is formed a closed circuit. The only are the emissions to the atmosphere gases from the heat zones. A process of high efficiency environmental point of view, suitable for products which are highly toxic volatile substances.
1. Introduction of YUHONG Wood Chips Rotary Dryer, Sawdust Rotary Dryer, Biomass Rotary Dryer
YUHONG design and manufacture a range of Rotary Dryers, which together with years of experience means that we can select the machine most suited to your particular application.
More than 20 years of experience has taught YUHONG that developing a good drying system begins with experienced process engineering and equipment designs that are tailored to suit the specific material and load to be dried. YUHONG pioneered the single pass dryer with satellite center assembly, which has become the industry standard. In addition, many other proprietary features like bolt-in flighting and drive teeth allow for greater longevity at a lower maintenance cost.
YUHONG's rotary dryer systems are all of heavy-duty industrial quality and renowned in many industries for their low maintenance, high efficiency and evaporation rates, and low stack emissions. YUHONG offers many standard dryer designs, ranging from 3 to 20 foot diameter with lengths up to 60 feet, but can design virtually any system the customer's needs require.
2. Application of YUHONG Wood Chips Rotary Dryer, Sawdust Rotary Dryer, Biomass Rotary Dryer
Rotary dryer suitable for: Mineral processing, manufacturing Chemical, petrochemical, pharmaceutical.
Applications for drying these main materials below:
Sludge
Bark/Wood chips
Sawdust
Wood Residues
Bagasse
3. Main Advantage of YUHONG Wood Chips Rotary Dryer, Sawdust Rotary Dryer, Biomass Rotary Dryer
Simple system
Suiltable for using a variety of fuels
Years of production experience drier, covering all types
Can be installed anywhere in the world
Really understand the process conditions
Interior engineering design custom installation applications
4. Working Priciple of YUHONG Wood Chips Rotary Dryer, Sawdust Rotary Dryer, Rotary Biomass Dryer
Slightly inclined rotary dryer, a cylindrical housing supported by two tires, wheels taken off a set of rollers. Both ends of dryer sealed to prevent leakage of air and materials. Rotary dryer can handle different sizes, different material composition, application range is very fat pan. Raising the material mechanical strength, thin filter cake can be dried, crude mineral lumps broken while beneficial to improve the uniformity of the dried product.
Model (mm) | Gradient (%) | Rotation Speed (r/min) | Feed-in Gas Temperature (°C) | Power (kw) | Output (t/h) | Weight (t) |
600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
2200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
