YUHONG ISO9001 & CE Approved corn gluten feed Dryer, corn gluten meal Dryer
1. corn gluten feed Dryer, corn gluten meal Dryer Introduction
corn gluten feed Dryer, corn gluten meal Dryer is a low-fuel-consumption and high efficiency of dryer, Can be used to dry the material with a moisture content below 60% to a final moisture content below 15% Applicable in animal farming, food brewing, sugar and pharmaceutical industries dealing with high humidity waste, as well as a variety of chemical raw materials, such as chicken manure, wine slot, furnace slag, fructose slag, slag vinegar sauce, sugar beet residue, animals slaughtered contents, coal slime, bentonite, and more.
2. corn gluten feed Dryer, corn gluten meal DryerCharacteristic & Features
Dregs rotary dryer, poultry manure rotary dryer, high humidity materials rotary dryer adopts fair current drying process, especially suitable for maintained nutrition materials and humidity fast drying,
such as processing fresh chicken manure, which can be reached the purpose of drying, sterilization and save nutrition. This dryer equipped without high speed rotating drum crushing device, then increasing contact area between the material and drying medium.
And there is particular design in the rotary dryer inside, making the material not easily adhesive in operation panel and shell barrel.
Due to our rotary dryer has good insulation and tightness, the heat efficiency of poultry manure rotary dryer is much more higher than the heat efficiency of general rotary dryer.
Thecorn gluten feed Dryer, corn gluten meal Dryer with the cramped construction, is convenient to install and trail run. Even it covers less floor area. This series of rotary dryer is adopted with different fuel such as coal, oil, gas, etc.
3. corn gluten feed Dryer, corn gluten meal Dryer Application
corn gluten feed Dryer, corn gluten meal Dryeris a low fuel consumption, high efficiency drying equipment.
The dryer can dry the material with ≤90% feeding moisture into ≤13% discharging moisture via one time of drying, suitable for poultry raising, food brewing, sugar processing, pharmaceutical and other handing various high humidity waste industries,
such as bean dregs, mechanical slag, cassava slag, alcohol trough, wine trough, liquid, fructose slag, sauce& vinegar residue, beet slag, coal slime, bentonite, etc.
It is the ideal equipment for development of resources and environment protection.
4. corn gluten feed Dryer, corn gluten meal DryerFacilities & Working Principle
corn gluten feed Dryer, corn gluten meal Dryerfacilities
The complete sets of equipment is mainly composed by the broken drum dryer, burning furnace, feed spiral, a spiral expected, pipeline, ESP, Guan wind, fan, control cabinet components.

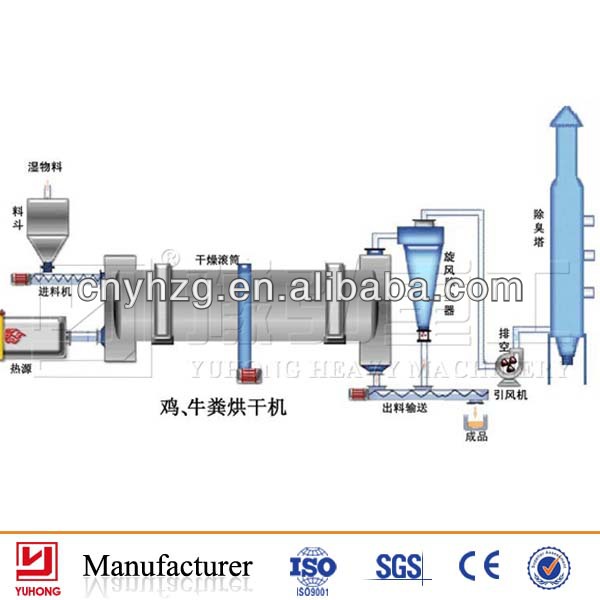

corn gluten feed Dryer, corn gluten meal Dryer working principle
Humidity materials are putted from the feed screw directly into the dryer drum crusher, was copied on the drum wall panels repeatedly, after scattered through the broken device, the raw material and was full contacted with high-temperature medium to complete heat and mass transfer process.
Due to the effect of the roller’s inclination and citation am the wind, the material moves slowly from the feed end, then discharged from the spiral after drying, the exhaust gas dusted through dust catcher, then discharged to the atmosphere
5. corn gluten feed Dryer, corn gluten meal Dryer Technical Specification
Model | YHQ-I | YHQ-II | YHQ-III | YHQ-IV | YHQ-V | YHQ-VI | Note- |
Capacity (T) | 5-8 | 12-15 | 15-20 | 35-42 | 50-60 | 70-85 | Moisture content below 65%, the material can feed to the dryer directly. If the moisture exceeds, the material need to dewatering by dehydrator firstly. |
Inlet quantity(t/h) | 0.6-1 | 1.5-2.5 | 2.5-3.5 | 4-5 | 5-6 | 6-7 | |
Power (kw) | 9.5 | 13 | 18.5 | 26 | 33.5 | 37 | |
Area(m²) | 25 | 35 | 45 | 60 | 80 | 100 |

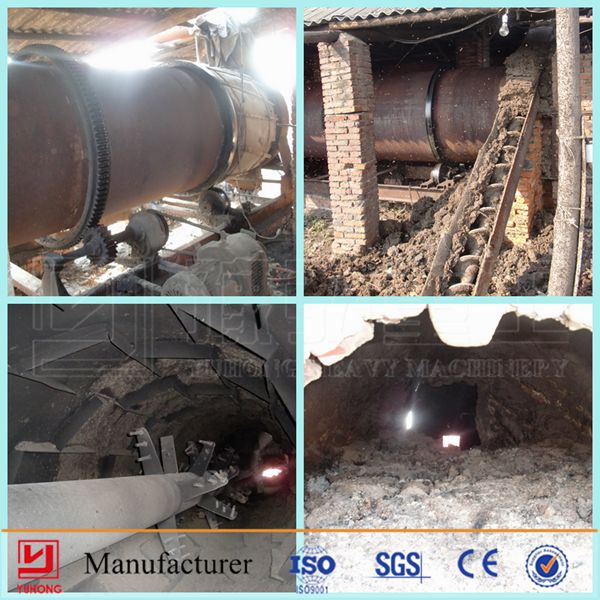

6. corn gluten feed Dryer, corn gluten meal DryerWorking Site

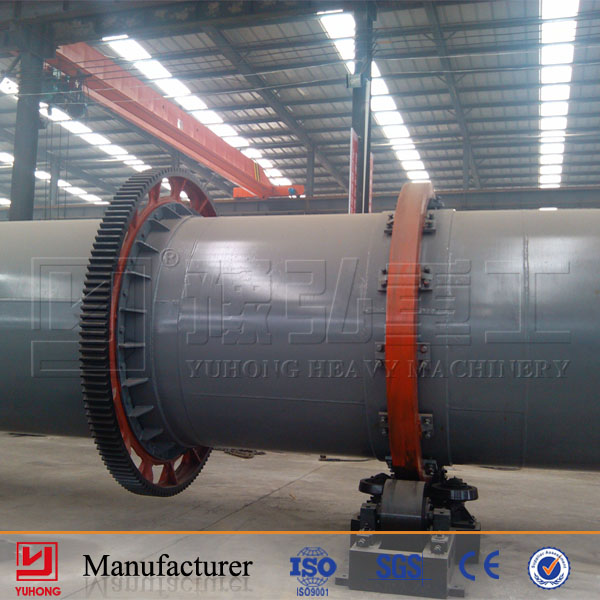

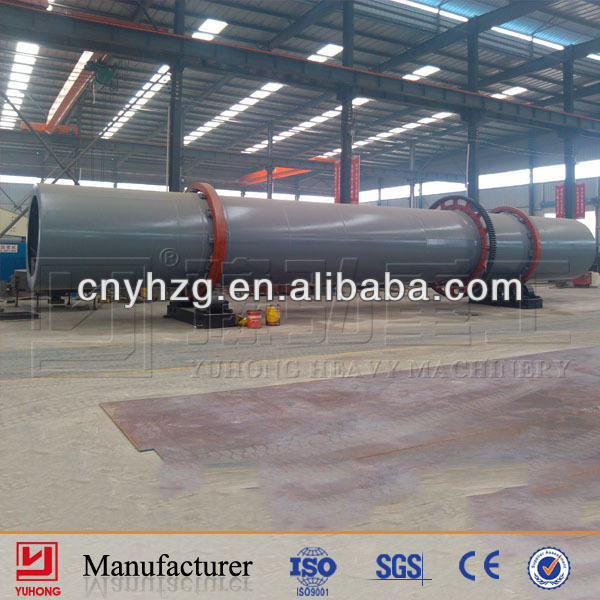

6. corn gluten feed Dryer, corn gluten meal Dryer YUHONG Workshop Pictures
Packaging: Standard export packing (Waterproof rust), Nude cargo and spare parts in wooden
cases (special fumigation-free wooden material).
Shipping: Int'l Shipping, Road / railway / air / ocean transportation
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
Company Information

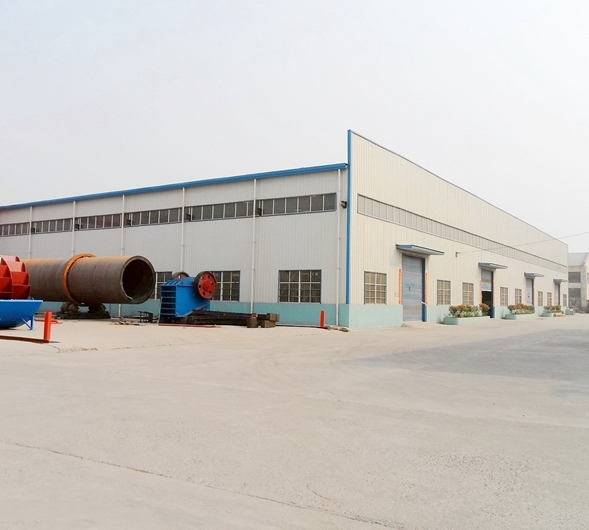

Our henan YUHONG heavy machinery co., ltd. (YUHONG FROUP) have rich experiences in designing and producing the rotary dryer for more than 20 years. Our YUHONG rotary dryer sales all over the country as well as we are expanding the rotary dryer overseas market. We hope to help more rotary dryer users to get strong quality rotary dryer with the reasonable price. Our YUHONG heavy machinery co., ltd. has the whole manufacturing machine to producing the rotary dryer, the pictures below are our workshope rolling steel plate pictures then to produce the rotary dryer's shell. We mainly have sawdust(wood chips) drying rotary dryer client's working site, sand drying rotary dryer client's working site, metal filing(sweepings) drying rotary dryer client's working site, slag(clay) drying rotary dryer client's working site, pomace( fruit residues) drying rotary dryer client's working site, poultry manure(high humidity) drying rotary dryer client's working site, etc. Our YUHONG heavy machinery co., ltd has a professional rotary dryer technical team of 10 engineers. We hope we can help more persons to solve the drying system problems all the time. We are sincere to invite you to visit our company and communicate more with us.
Why Choose Us
1. We are Manufacturer (Not Dealer):
All machineries from HENAN YUHONG HEAVY MACHINERY CO., LTD are made by ourselves,
with lower price, good quality and assured full after service.
2. Training & Service:
1.We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.
2.Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. If you are new for this business:
Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
4. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.
♥ What is the type and size of raw material?
the moisture of the raw materails and final products
capacity
♥ what fuel are used for the feeder dryer ,for example ,the coal ,nature gas ,LPG or diesel oil and so on.
♥ Usage-feed
If we can be of any further help,please feel free to let us know ,Customer`s inquiries are always meet with our careful attention.
