Automatic washer, Automatic-fully washer extractor, Automatic-fully washing and dewatering machine, Automatic-fully washing and extracting machine, Automatic-fully washer, Automatic washing machine, Washer extractor, Laundry washing machine, Laundry washer extractor, Laundry equipment, Marine washer extractor
Main features:
1. Laundry washer extractor Fully automatic, microcomputer-controlled.
2. Industrial washer extractor has high quality stainless steel, good appearance, long life.
3. Microprocessor, freely programmable, 5 standard programmes, 25 possible programmes.
4. Full suspension shock sructure, suspension, combination of shock absorbers and springs for maximum absorption, need no excessive foundations.
5. Imported bearing, precise and durable.
6. Fixed support for long-distance transportation, avoid shaking damage during transit.
7. Laundry washer extractor has high quality inverter system, easily realize washing and dehydration frequency stepless adjusting.
8, Built-out bearing lubrication, simple operation, convenient maintenance.
9, Safety door interlock system.
10, Multiple sealing system, oil sealing, water sealing, stainless steel sealing.
Laundry Equipment Machine (Washer Extractors, Tumble Dryers, Flatwork Ironers) (XTQ, SWA, YPI)
SWA801 series drying machine:
1. Clothes drying machine, Leather drying machine, Drying machine, Industrial drying machine, Gas drying machine, tumble drying machine. Commercial drying machine, Automatic drying machine, Laundry drying machine, Steam drying machine, Textile drying machine, SS drying machine. Marine drying machine.
2. Vertical structure.
3. Stainless steel drum and frame made of high quality plate.
4. Automatic drying machine, Steam or electrical heated type. It is easy to operate by means of programmable micro-computer and LED display. Heating temperature and time can be automatically controlled and can be set by your need.
5. Tumble dryer is perfect machine for laundry shops, hospitals and hotels, and this machine will work together with washer extractor or industrial washing machine. Big-sized door is adopted for convenient fabric feeding and taking as well as transparent toughened glass is equipped for convenient view of fabric drying condition. High-power heater is adopted to ensure safe and effective drying effect.
Self-cleaning lint filter is equipped to avoid lint jam.
6. High efficiency, low consumption, low noise and safety, and used widely in the field, such as hotel, restaurant, laundry house, water washing plant, and laundry equipment for garment, fabric, apparel Drying washed & extracted fabric such as cotton, wool, hemp, silk, chemical fiber, etc; It is suitable for hotels, hospitals, organizations, laundries etc.
7. Its capacity is from 15kg to 150kg.
8. CE and ISO9001 certificates.
9. Packing: With wooden box
YPAI-YPAIII ironing machine:
Ironing machine, Industrial ironing machine, Commercial ironing machine, Automatic ironing machine, Ironing machine for bed sheets, Flatwork ironer, Flatwork ironing machine, Roll ironing machine, Industrial ironing machine for bed sheet, Marine ironing machine
1. Automatic ironing machine, horizontal structure, easy to operate and high-quality ironing effect.
2. Steam or electrical heating.
3. Ironing for various of bed sheets, towel, tablecloth, curtain or liens which are usually used in hotel, restaurant, school, hospital, counterpane factory and laundry house, etc.
4. According to the fabric width, the roller length of industrial ironing machine can be 1800mm, 2500mm, 2800mm and 3000mm, also we can make the length less than 1800mm as per your requirements. And the roller can be single, double and three. Surely, the ironing speed of double rollers and three rollers ironing machine is quicker than that of single roller ironing machine
5. The precise structure of double chests, springs and heating proof felt ensure the rollers to keep enough electricity and spring cushion, which creates the surface well-touched. Unique lever balance pressure device and the cylinder pressure adjust system on both sides. Unique whirl steam flow heating system for the connecting plate improves the ironing result.
6. Reliable and safe operation system
With a finger guard, once operator touches the plate the machine will stop immediately.
Anti-curliness device can prevent the fabrics curling in the chests.
With steam and compressed air control system, once the pressure is too low the system will alarm.
Many emergency stop button fixed on the ironer. Any buttoned pressed, the ironer will stop to run.
The pneumatic system can raise and lock up the rollers to prevent the fabrics and the proof felt damaged when the machine stops running in case of no power.
A big touch screen controller with interactive interface on the machine is easy for operator to program according to different requirements.
7. High efficiency and Low energy consumption
The chests have a large angle heating surface, which can improve the heating efficiency.
The ironer adopts a single drive motor which can save energy. The frequency converter system can adjust the ironing speed from 8~40 m/min with the change of temperature, type of fabrics, moisture, etc.
The chests adopt a unique heating chamber recycle system with many strips on double sides. Steam can flow in the chamber with high efficiency. In addition, the chests are covered by thermal insulators to reduce heat losses.
8. With CE and ISO9001 certificates.

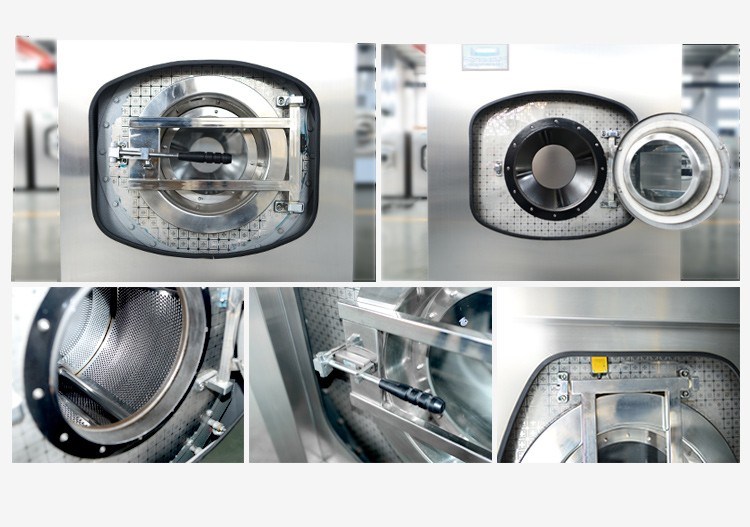

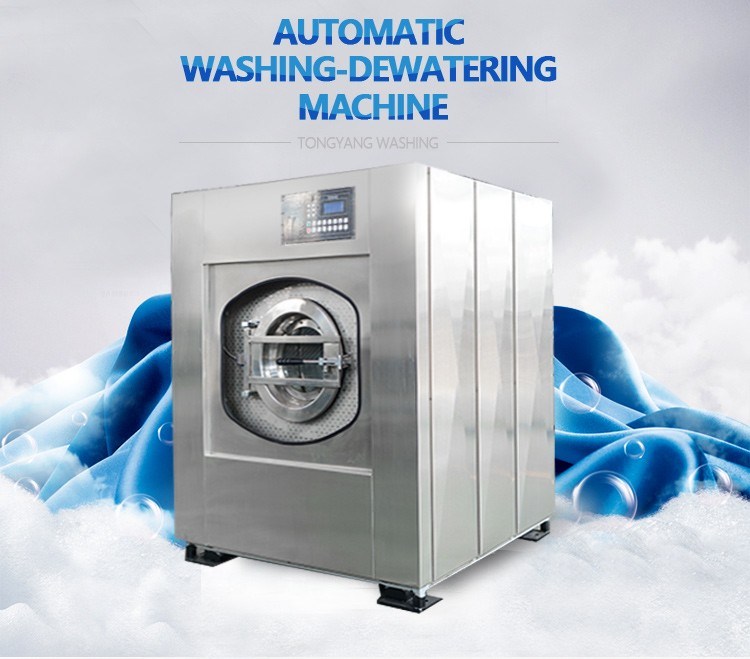

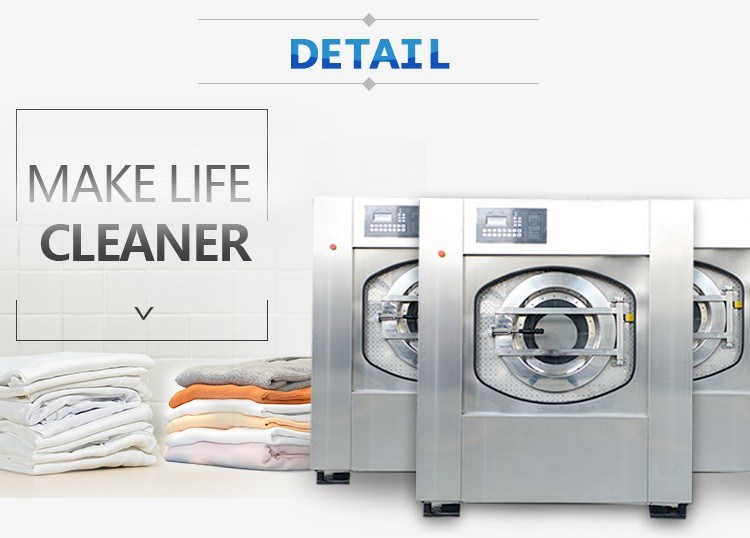

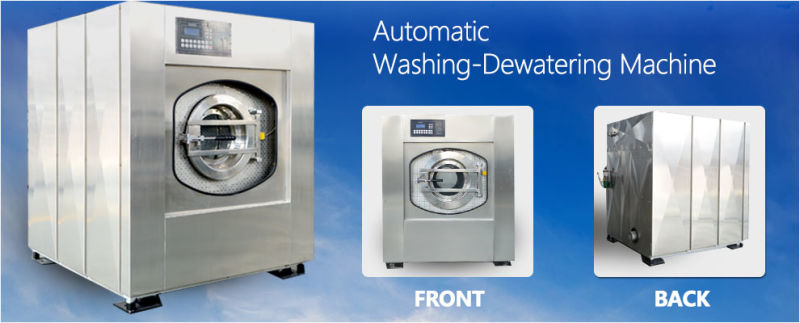

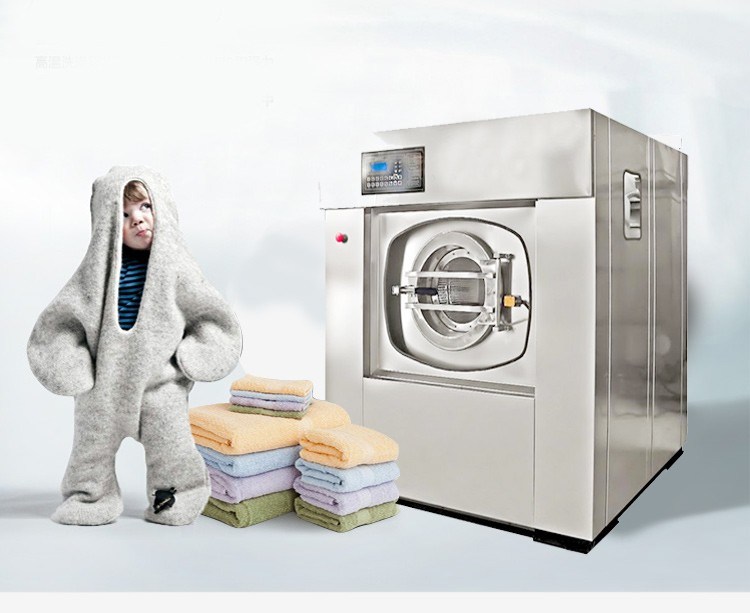

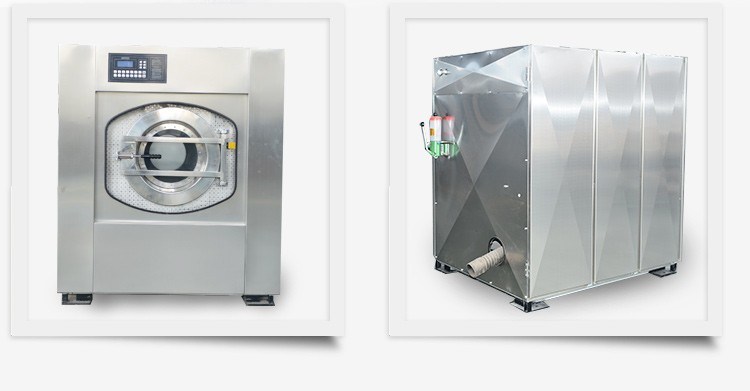

XTQ series automatic-fully washer extractor:
1. Fully automatic, microcomputer-controlled.
2. High quality stainless steel, good appearance, long life.
3. Microprocessor, freely programmable, 5 standard programmes, 25 possible programmes.
4. Full suspension shock structure, suspension, combination of shock absorbers and springs for maximum absorption, need no excessive foundations.
5. Imported bearing, precise and durable.
6. Fixed support for long-distance transportation, avoid shaking damage during transit.
7. High quality inverter system, easily realize washing and dehydration frequency stepless adjusting.
8, Built-out bearing lubrication, simple operation, convenient maintenance.
9, Safety door interlock system.
10, Multiple sealing system, oil sealing, water sealing, stainless steel sealing.
11. With CE and ISO9001 certificates.
Specification:
Apply in: Laundry shop / Hotel accessory products:
1.) Laundry shop
a. Small laundry shop equipment: ( <20 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment
b. Middle laundry shop equipment: ( 20m²-40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor
c. Large laundry shop equipment: ( >40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor,stain removal table,form finisher,clothes disinfection cabinet,shoes washing machine,shoes dryinging machine
2). Hotel
a. Small hotel ( <50 rooms)
washer-extractor,drying machine,ironing machine
b. Large hotel (> 50 rooms)
washer-extractor,drying machine,ironing machine,folding machine,dry cleaning machine,press machine.
We can provide the professional proposal for you according to your situation.
Our service:
1. Integrating development, production, sale and service.
2. Complete modern production machines and high-level staff members.
3. Dedicated to designing and manufacturing dry cleaning machine,washing machine,dryer machine,folder machine,ironer machine,extra-laundry equipment etc.
4. High quanlity products, competitive price,and excellent customer services are always our ultimate.
5. Create a win-win business relationship with you in the near future.
Company information:
1. Guangzhou Jinzhilai Washing Equipment Co.,Ltd was set up in 2006,we are a leading and professional laundry equipment manufacturer in China.
2. Our main products: Industrial washing machine, tumble dryer, ironing machine, folding machine,dry cleaning machine, etc.
3. Our products are popularly used in hotels,hospitals,restaurants,schools,laundries, etc.
FAQ
Q1. Are you a factory or a trading company?
A: We are a leading factory here,OEM is available.
Q2. How can I know you're real and your product is good.
If you want to cooperate with us sincerely,we can provide our other customers' contact information to you. They can prove that.
Q3. Our power supply is 415v, 3phase, 50hz, can you provide it?
A: Yes,We can customize the power supply for you.
Q4. What's your machines' warranty?
A:We provide free parts and parts delivery, when manufacture defects has been detected during normal operation under warranty period.
All parts are under 12 months warranty with defects from manufacturer.
All electronic parts and components are also under this guarantee.
Q5. What is your delivery time?
A: Our delivery time is about 15-30 days after receiving deposit.
Main features:
1. Laundry washer extractor Fully automatic, microcomputer-controlled.
2. Industrial washer extractor has high quality stainless steel, good appearance, long life.
3. Microprocessor, freely programmable, 5 standard programmes, 25 possible programmes.
4. Full suspension shock sructure, suspension, combination of shock absorbers and springs for maximum absorption, need no excessive foundations.
5. Imported bearing, precise and durable.
6. Fixed support for long-distance transportation, avoid shaking damage during transit.
7. Laundry washer extractor has high quality inverter system, easily realize washing and dehydration frequency stepless adjusting.
8, Built-out bearing lubrication, simple operation, convenient maintenance.
9, Safety door interlock system.
10, Multiple sealing system, oil sealing, water sealing, stainless steel sealing.
| Type | XTQ-15H | XTQ-20H | XTQ-30H | XTQ-50H | XTQ-70H | XTQ-100H |
| rated capacity | ||||||
| Min | 10kg | 15kg | 20kg | 35kg | 50kg | 70kg |
| Max | 15kg | 20kg | 30kg | 50kg | 70kg | 100kg |
| Drum | ||||||
| Diameter | 636mm | 700mm | 900mm | 1080mm | 1080mm | 1200mm |
| Diameter deepness | 470mm | 500mm | 500mm | 575mm | 730mm | 856mm |
| Overall Dimension | ||||||
| Hight | 1300mm | 1400mm | 1635mm | 1800mm | 1800mm | 2030mm |
| Length | 1240mm | 1260mm | 1460mm | 1610mm | 1760mm | 1990mm |
| Width | 1000mm | 1050mm | 1400mm | 1650mm | 1550mm | 1690mm |
| Drum speed | ||||||
| Washing rotate speed | 45r/min | 45/min | 36r/min | 35r/min | 33r/min | 31r/min |
| Uniformity speed | 90r/min | 85/min | 80/min | 75/min | 70/min | 65r/min |
| Mid speed | 450r/min | 450/min | 420r/min | 380r/min | 350r/min | 310r/min |
| High speed | 890r/min | 890/min | 780r/min | 760r/min | 680r/min | 680r/min |
| Motor | 1.5kw | 2.2kw | 3kw | 4kw | 5.5kw | 7.5kw |
| Draining valve | 0mm | φ 70mm | φ 100mm | φ 100mm | φ 100mm | φ 140mm |
| Filling with water | ||||||
| Hot water pipe | 3/4" | 3/4" | 3/2" | 3/2" | 3/2" | 3/2" |
| Cold water pipe | 3/4" | 3/4" | 3/2" | 3/2" | 3/2" | 3/2" |
| Steam pipe | 3/4" | 3/4" | 1" | 1" | 1" | 1" |
| Power supply | Standard: 380+N-3PH-50HZ |
Laundry Equipment Machine (Washer Extractors, Tumble Dryers, Flatwork Ironers) (XTQ, SWA, YPI)
SWA801 series drying machine:
1. Clothes drying machine, Leather drying machine, Drying machine, Industrial drying machine, Gas drying machine, tumble drying machine. Commercial drying machine, Automatic drying machine, Laundry drying machine, Steam drying machine, Textile drying machine, SS drying machine. Marine drying machine.
2. Vertical structure.
3. Stainless steel drum and frame made of high quality plate.
4. Automatic drying machine, Steam or electrical heated type. It is easy to operate by means of programmable micro-computer and LED display. Heating temperature and time can be automatically controlled and can be set by your need.
5. Tumble dryer is perfect machine for laundry shops, hospitals and hotels, and this machine will work together with washer extractor or industrial washing machine. Big-sized door is adopted for convenient fabric feeding and taking as well as transparent toughened glass is equipped for convenient view of fabric drying condition. High-power heater is adopted to ensure safe and effective drying effect.
Self-cleaning lint filter is equipped to avoid lint jam.
6. High efficiency, low consumption, low noise and safety, and used widely in the field, such as hotel, restaurant, laundry house, water washing plant, and laundry equipment for garment, fabric, apparel Drying washed & extracted fabric such as cotton, wool, hemp, silk, chemical fiber, etc; It is suitable for hotels, hospitals, organizations, laundries etc.
7. Its capacity is from 15kg to 150kg.
8. CE and ISO9001 certificates.
9. Packing: With wooden box
| model | electric heating power (kw) | motor power (kw ) | drought fan power (kw) | steam pressure(MPa) | r/min | drum Size (mm) | overall dimensions mm | note |
| SWA801-10 | 7.2 | 0.55 | 0.55 | 0.4-0.6 | 46 | φ 640*560 | 700*1100*1340 | Electric& steam type |
| SWA801-15 | 10.8 | 0.75 | 0.75 | 0.4-0.6 | 35 | φ 760*560 | 900*1200*1500 | |
| SWA801-30 | 18 | 1.1 | 1.1 | 0.4-0.6 | 32 | φ 950*860 | 1100*1450*1900 | |
| SWA801-50 | 21 | 1.5 | 1.5 | 0.4-0.6 | 32 | φ 1160*1000 | 1320*1700*2200 | |
| SWA801-70 | 27 | 1.5 | 1.5 | 0.4-0.6 | 30 | φ 1260*1000 | 1400*1700*2300 | |
| SWA801-100 | 39 | 2.2 | 2.2 | 0.4-0.6 | 30 | φ 1320*1100 | 1500*1800*2390 | |
| SWA801-100 | 2.2 | 2*1.5 | 0.4-0.6 | 30 | φ 1500*1000 | 1620*1800*2410 | Double blower | |
| SWA801-120 | 2.2 | 2*1.5 | 0.4-0.6 | 28 | φ 1500*1080 | 1620*1850*2410 | ||
| SWA801-150 | 3 | 2*2.2 | 0.4-0.6 | 27 | φ 1600*1160 | 1740*1900*2550 | ||
| SWA801-30T | 1.1 | 1.1 | 32 | φ 950*800 | 1100*1450*1900 | Gas type with two combustion heads | ||
| SWA801-50T | 1.5 | 1.5 | 32 | φ 1160*1000 | 1320*1700*2200 | |||
| SWA801-100T | 2.2 | 2.2 | 30 | φ 1320*1100 | 1485*1800*2360 | Gas type with four combustion heads | ||
| SWA801-120T | 2.2 | 2*1.5 | 28 | φ 1500*1080 | 1620*1850*2400 | |||
| SWA801-150T | 3 | 2*2.2 | 27 | φ 1600*1160 | 1740*1900*2600 | |||
| SWA801-50M | 1.5 | 2*0.75 | 32 | φ 1160*1000 | 1320*1700*2200 | Wood-buring type with blower | ||
| SWA801-100M | 2.2 | 2*0.75 | 30 | φ 1320*1100 | 1485*1800*2360 |
YPAI-YPAIII ironing machine:
Ironing machine, Industrial ironing machine, Commercial ironing machine, Automatic ironing machine, Ironing machine for bed sheets, Flatwork ironer, Flatwork ironing machine, Roll ironing machine, Industrial ironing machine for bed sheet, Marine ironing machine
1. Automatic ironing machine, horizontal structure, easy to operate and high-quality ironing effect.
2. Steam or electrical heating.
3. Ironing for various of bed sheets, towel, tablecloth, curtain or liens which are usually used in hotel, restaurant, school, hospital, counterpane factory and laundry house, etc.
4. According to the fabric width, the roller length of industrial ironing machine can be 1800mm, 2500mm, 2800mm and 3000mm, also we can make the length less than 1800mm as per your requirements. And the roller can be single, double and three. Surely, the ironing speed of double rollers and three rollers ironing machine is quicker than that of single roller ironing machine
5. The precise structure of double chests, springs and heating proof felt ensure the rollers to keep enough electricity and spring cushion, which creates the surface well-touched. Unique lever balance pressure device and the cylinder pressure adjust system on both sides. Unique whirl steam flow heating system for the connecting plate improves the ironing result.
6. Reliable and safe operation system
With a finger guard, once operator touches the plate the machine will stop immediately.
Anti-curliness device can prevent the fabrics curling in the chests.
With steam and compressed air control system, once the pressure is too low the system will alarm.
Many emergency stop button fixed on the ironer. Any buttoned pressed, the ironer will stop to run.
The pneumatic system can raise and lock up the rollers to prevent the fabrics and the proof felt damaged when the machine stops running in case of no power.
A big touch screen controller with interactive interface on the machine is easy for operator to program according to different requirements.
7. High efficiency and Low energy consumption
The chests have a large angle heating surface, which can improve the heating efficiency.
The ironer adopts a single drive motor which can save energy. The frequency converter system can adjust the ironing speed from 8~40 m/min with the change of temperature, type of fabrics, moisture, etc.
The chests adopt a unique heating chamber recycle system with many strips on double sides. Steam can flow in the chamber with high efficiency. In addition, the chests are covered by thermal insulators to reduce heat losses.
8. With CE and ISO9001 certificates.
| Type Pated voltage | YPA I-1800 | YPA I-2500 | YPA I-2800 | YPA II-2800 | YPA II-3000 |
| Ironing scope(mm) | ≤ 1800≤ 3 | ≤ 2440≤ 3 | ≤ 2800≤ 3 | ≤ 2800≤ 3 | ≤ 3000≤ 3 |
| Tumbler specifiation(mm) | Φ 8000× 1800 | Φ 800× 2500 | Φ 800× 2800 | Φ 800× 2800 | Φ 800× 3000 |
| Steam pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Ironing sreed of fabric(m/min) | 0-7 | 0-7 | 0-7 | 0-20 | 0-20 |
| Admission hole diameter(mm) | 25 | 25 | 25 | 32 | 32 |
| Steam consumption Capacity(kg/h) | 50 | 70 | 80 | 150 | 180 |
| Motor Power(Kw) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Overall dimension(mm) | 2800× 1550× 1500 | 3500× 1550× 1500 | 3800× 1550× 1500 | 3850× 2500× 1500 | 4050× 2500× 1500 |
| Drum quantity | 1 | 1 | 1 | 2 | 2 |
XTQ series automatic-fully washer extractor:
1. Fully automatic, microcomputer-controlled.
2. High quality stainless steel, good appearance, long life.
3. Microprocessor, freely programmable, 5 standard programmes, 25 possible programmes.
4. Full suspension shock structure, suspension, combination of shock absorbers and springs for maximum absorption, need no excessive foundations.
5. Imported bearing, precise and durable.
6. Fixed support for long-distance transportation, avoid shaking damage during transit.
7. High quality inverter system, easily realize washing and dehydration frequency stepless adjusting.
8, Built-out bearing lubrication, simple operation, convenient maintenance.
9, Safety door interlock system.
10, Multiple sealing system, oil sealing, water sealing, stainless steel sealing.
11. With CE and ISO9001 certificates.
Specification:
| Type | XTQ-15H | XTQ-20H | XTQ-30H | XTQ-50H | XTQ-70H | XTQ-100H |
| Min Capacity | 10kg | 15kg | 20kg | 35kg | 50kg | 70kg |
| Max Capacity | 15kg | 20kg | 30kg | 50kg | 70kg | 100kg |
| Diameter | 636mm | 700mm | 900 mm | 1080 mm | 1080 mm | 1200 mm |
| Diameter deepness | 470 mm | 500 mm | 500 mm | 575 mm | 730 mm | 856 mm |
| Volume | 149 L | 185 L | 320 L | 528 L | 668 L | 968 L |
| High | 1300 mm | 1400 mm | 1635 mm | 1800 mm | 1800 mm | 2030 mm |
| Length | 1000 mm | 1050 mm | 1400 mm | 1610 mm | 1760 mm | 1990 mm |
| Width | 1240 mm | 1260 mm | 1460 mm | 1550 mm | 1550 mm | 1690 mm |
| Washing rotate speed | 45r/min | 42r/min | 36 r/min | 35 r/min | 33 r/min | 31 r/min |
| Uniformity speed | 90 r/min | 85 r/min | 80 r/min | 75 r/min | 70 r/min | 65 r/min |
| Mid speed | 450 r/min | 420 r/min | 420 r/min | 380 r/min | 350 r/min | 310 r/min |
| High speed | 890 r/min | 820 r/min | 780 r/min | 760 r/min | 680 r/min | 680 r/min |
| Motor | 1.5Kw | 1.5Kw | 3 Kw | 4 Kw | 5.5 Kw | 7.5 Kw |
| Draining valve | Φ 70mm | Φ 70mm | Φ 100mm | Φ 100mm | Φ 100mm | Φ 140mm |
| Hot water pipe | 3/4″ | 3/4″ | 3/2″ | 3/2″ | 3/2″ | 3/2″ |
| water pipe | 3/4″ | 3/4″ | 3/2″ | 3/2″ | 3/2″ | 3/2″ |
| Steam pipe | 3/4″ | 3/4″ | 1″ | 1″ | 1″ | 1″ |
| Weight | 626kg | 850kg | 1200kg | 1435kg | 1956kg | 2464kg |
Apply in: Laundry shop / Hotel accessory products: 1.) Laundry shop
a. Small laundry shop equipment: ( <20 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment
b. Middle laundry shop equipment: ( 20m²-40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor
c. Large laundry shop equipment: ( >40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor,stain removal table,form finisher,clothes disinfection cabinet,shoes washing machine,shoes dryinging machine
2). Hotel
a. Small hotel ( <50 rooms)
washer-extractor,drying machine,ironing machine
b. Large hotel (> 50 rooms)
washer-extractor,drying machine,ironing machine,folding machine,dry cleaning machine,press machine.
We can provide the professional proposal for you according to your situation.
Our service:
1. Integrating development, production, sale and service.
2. Complete modern production machines and high-level staff members.
3. Dedicated to designing and manufacturing dry cleaning machine,washing machine,dryer machine,folder machine,ironer machine,extra-laundry equipment etc.
4. High quanlity products, competitive price,and excellent customer services are always our ultimate.
5. Create a win-win business relationship with you in the near future.
Company information:
1. Guangzhou Jinzhilai Washing Equipment Co.,Ltd was set up in 2006,we are a leading and professional laundry equipment manufacturer in China.
2. Our main products: Industrial washing machine, tumble dryer, ironing machine, folding machine,dry cleaning machine, etc.
3. Our products are popularly used in hotels,hospitals,restaurants,schools,laundries, etc.
FAQ
Q1. Are you a factory or a trading company?
A: We are a leading factory here,OEM is available.
Q2. How can I know you're real and your product is good.
If you want to cooperate with us sincerely,we can provide our other customers' contact information to you. They can prove that.
Q3. Our power supply is 415v, 3phase, 50hz, can you provide it?
A: Yes,We can customize the power supply for you.
Q4. What's your machines' warranty?
A:We provide free parts and parts delivery, when manufacture defects has been detected during normal operation under warranty period.
All parts are under 12 months warranty with defects from manufacturer.
All electronic parts and components are also under this guarantee.
Q5. What is your delivery time?
A: Our delivery time is about 15-30 days after receiving deposit.
China
