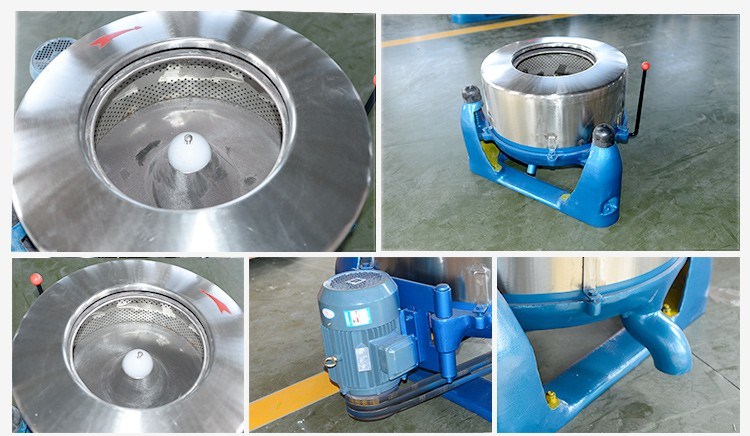

The diameter of the machine could be 600mm, 800mm, 1000mm, 1200mm, 1500mm. Three legs suspended machine is consist of the parts that triangle basement, casting steel legs, drum, outer shell, motor and so on, and both drum and outer shell are made of stainless steel. When the motor start, the drum will be driven by triangle rubber belt which pass power from motor to drum. There is also brake device in the machine which has good character that machine can be stopped in short time.
Main character of Spin Dryer:
1. Independent three legs suspended instruction can avoid shock caused by unbalanced loaded.
2. The durable drum is made of stainless steel.
3. Equipped with special brake arms which is durable and reliable make the machine more safe.
4. The motor will start with slow speed and reach supposed speed gradually, the drum will be driven by triangle rubber belt, running smooth and synchronous.
5. CE and ISO9001 certificates.
Apply in: Laundry shop / Hotel accessory products:
1.) Laundry shop
a. Small laundry shop equipment: ( <20 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment
b. Middle laundry shop equipment: ( 20m²-40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor
c. Large laundry shop equipment: ( >40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor,stain removal table,form finisher,clothes disinfection cabinet,shoes washing machine,shoes dryinging machine
2). Hotel
a. Small hotel ( <50 rooms)
washer-extractor,drying machine,ironing machine
b. Large hotel (> 50 rooms)
washer-extractor,drying machine,ironing machine,folding machine,dry cleaning machine,press machine.
We can provide the professional proposal for you according to your situation.
Our service:
1. Integrating development, production, sale and service.
2. Complete modern production machines and high-level staff members.
3. Dedicated to designing and manufacturing dry cleaning machine,washing machine,dryer machine,folder machine,ironer machine,extra-laundry equipment etc.
4. High quanlity products, competitive price,and excellent customer services are always our ultimate.
5. Create a win-win business relationship with you in the near future.
Company information:
1. Guangzhou Jinzhilai Washing Equipment Co.,Ltd was set up in 2006,we are a leading and professional laundry equipment manufacturer in China.
2. Our main products: Industrial washing machine, tumble dryer, ironing machine, folding machine,dry cleaning machine, etc.
3. Our products are popularly used in hotels,hospitals,restaurants,schools,laundries, etc.
FAQ
Q1. Are you a factory or a trading company?
A: We are a leading factory here,OEM is available.
Q2. How can I know you're real and your product is good.
If you want to cooperate with us sincerely,we can provide our other customers' contact information to you. They can prove that.
Q3. Our power supply is 415v, 3phase, 50hz, can you provide it?
A: Yes,We can customize the power supply for you.
Q4. What's your machines' warranty?
A:We provide free parts and parts delivery, when manufacture defects has been detected during normal operation under warranty period.
All parts are under 12 months warranty with defects from manufacturer.
All electronic parts and components are also under this guarantee.
Q5. What is your delivery time?
A: Our delivery time is about 15-30 days after receiving deposit.
Main character of Spin Dryer:
1. Independent three legs suspended instruction can avoid shock caused by unbalanced loaded.
2. The durable drum is made of stainless steel.
3. Equipped with special brake arms which is durable and reliable make the machine more safe.
4. The motor will start with slow speed and reach supposed speed gradually, the drum will be driven by triangle rubber belt, running smooth and synchronous.
5. CE and ISO9001 certificates.
| Type | SS752-500 | SS752-600 | SS753-800 | SS751-1000 | SS754-1200 | SWE301-1500 (with inverter) |
| Diameter of drum(mm) | 500 | 600 | 800 | 1000 | 1200 | 1500 |
| High of drum(mm) | 260 | 300 | 340 | 380 | 480 | 600 |
| Speed of drum(r/min) | 1000 | 1000 | 910 | 900 | 750 | 750 |
| Motor power(Kw) | 1.2 | 2.2 | 4 | 5.5 | 7.5 | 10 |
| Max. capacity(Kg) | 25 | 45 | 80 | 130 | 220 | 500 |
| Overall dimension(mm) | 1000× 1000× 650 | 1250× 1250× 700 | 1500× 1500× 800 | 1800× 1800× 900 | 2000× 2000× 1000 | 2550× 1950× 1400 |
| Weight (Kg) | 220 | 420 | 720 | 1050 | 1500 | 2800 |
Apply in: Laundry shop / Hotel accessory products:
1.) Laundry shop
a. Small laundry shop equipment: ( <20 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment
b. Middle laundry shop equipment: ( 20m²-40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor
c. Large laundry shop equipment: ( >40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor,stain removal table,form finisher,clothes disinfection cabinet,shoes washing machine,shoes dryinging machine
2). Hotel
a. Small hotel ( <50 rooms)
washer-extractor,drying machine,ironing machine
b. Large hotel (> 50 rooms)
washer-extractor,drying machine,ironing machine,folding machine,dry cleaning machine,press machine.
We can provide the professional proposal for you according to your situation.
Our service:
1. Integrating development, production, sale and service.
2. Complete modern production machines and high-level staff members.
3. Dedicated to designing and manufacturing dry cleaning machine,washing machine,dryer machine,folder machine,ironer machine,extra-laundry equipment etc.
4. High quanlity products, competitive price,and excellent customer services are always our ultimate.
5. Create a win-win business relationship with you in the near future.
Company information:
1. Guangzhou Jinzhilai Washing Equipment Co.,Ltd was set up in 2006,we are a leading and professional laundry equipment manufacturer in China.
2. Our main products: Industrial washing machine, tumble dryer, ironing machine, folding machine,dry cleaning machine, etc.
3. Our products are popularly used in hotels,hospitals,restaurants,schools,laundries, etc.
FAQ
Q1. Are you a factory or a trading company?
A: We are a leading factory here,OEM is available.
Q2. How can I know you're real and your product is good.
If you want to cooperate with us sincerely,we can provide our other customers' contact information to you. They can prove that.
Q3. Our power supply is 415v, 3phase, 50hz, can you provide it?
A: Yes,We can customize the power supply for you.
Q4. What's your machines' warranty?
A:We provide free parts and parts delivery, when manufacture defects has been detected during normal operation under warranty period.
All parts are under 12 months warranty with defects from manufacturer.
All electronic parts and components are also under this guarantee.
Q5. What is your delivery time?
A: Our delivery time is about 15-30 days after receiving deposit.
