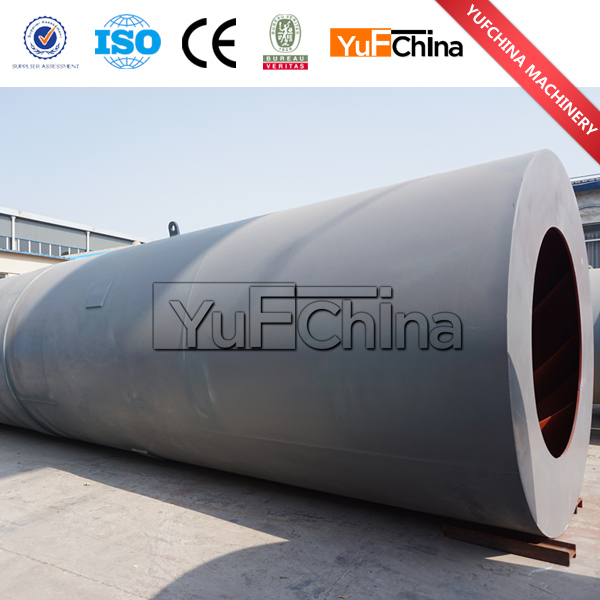

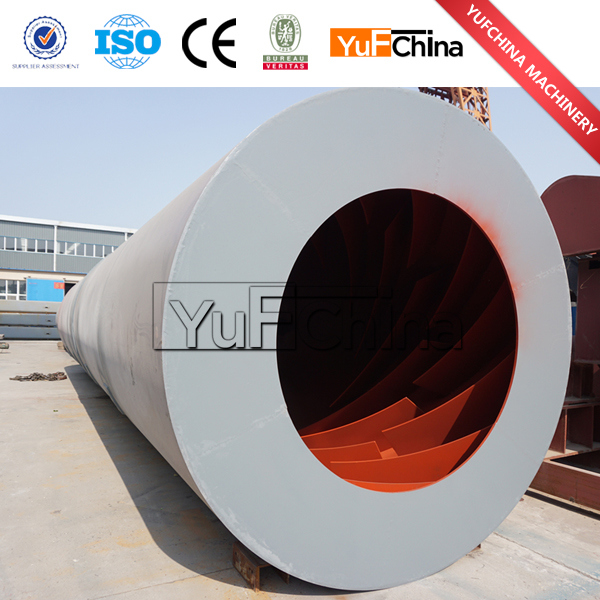

Low Cost Biomass Rotary Drum Dryer
Introduction of Rotary Drum Dryer
Rotary dryer is a kind of drying equipment used to minimize the moisture content of the material processing.It can be widely used to dry various materials, such as metallic and nonmetallic mineral, clay in cement industry and coal in coal mine, etc, and it is easy to master the process measures.
Advantages of Rotary Drum Dryer
The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation, and convenient and reliable operation; Therefore, the consumption of the coal and the electricity is lower than the common ones. While the production capacity is higher than 10-15%.
Technical Parameters of Rotary Drum Dryer
Working Principle of Rotary Drum Dryer

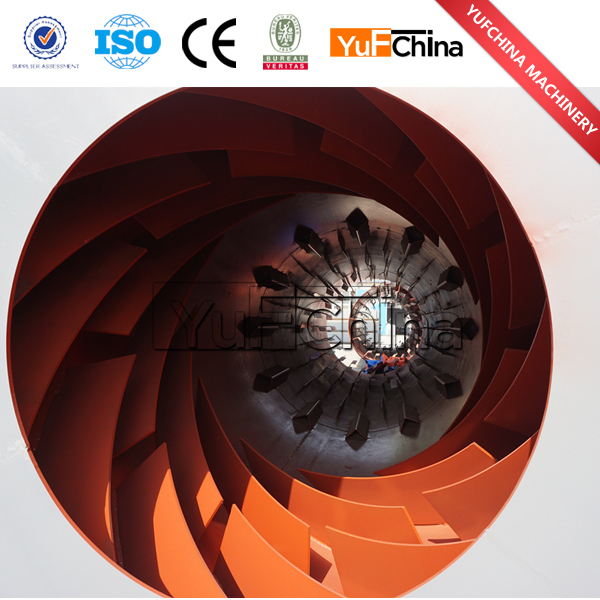

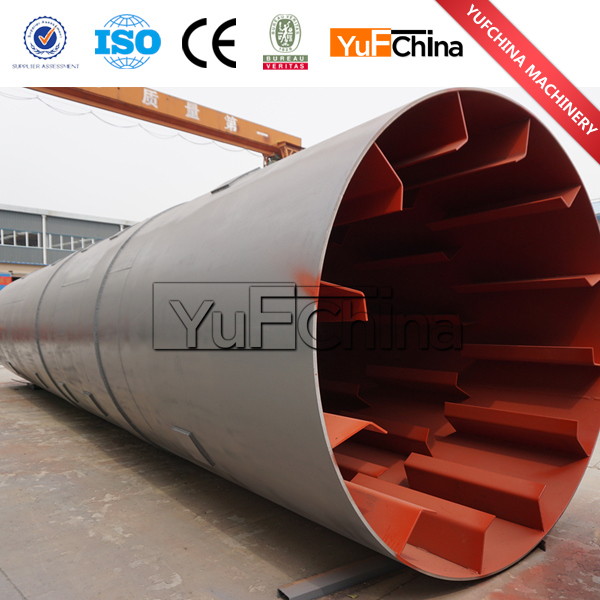

Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator, materials enter the barrel installed with slope to horizontal line from the higher side, and hot air enters the barrel from the lower side, and then materials and hot air mix together. Materials go to the lower side by gravity when the barrel is rotating. Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely, which is designed to improve the producing efficiency of rotary dryer.

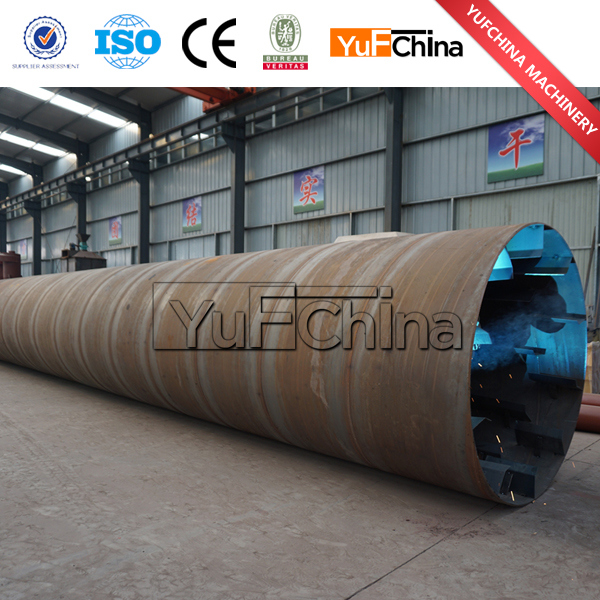

Our factory workshop
After-sale Service
*1 year warranty ,if the wood pellet machine break is by quality detect not personal reason or natural disaster.
*Engineer installation abroad and teach you to master the skill to produce wood pellet.
*Supply spare parts with favorable price all the machine life time.
Contact Information
Welcome to know more about our rotary drum dryer.
Introduction of Rotary Drum Dryer
Rotary dryer is a kind of drying equipment used to minimize the moisture content of the material processing.It can be widely used to dry various materials, such as metallic and nonmetallic mineral, clay in cement industry and coal in coal mine, etc, and it is easy to master the process measures.
Advantages of Rotary Drum Dryer
The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation, and convenient and reliable operation; Therefore, the consumption of the coal and the electricity is lower than the common ones. While the production capacity is higher than 10-15%.
Technical Parameters of Rotary Drum Dryer
| Model (mm) | Obliquity(%) | Rotation speed (r/min) | Feeding temperature (degree) | Power (kw) | Capacity(t/h) | Weight (t) |
| 600x6000 | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 2.9 |
| 800x8000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
| 800x10000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
| 1000x10000 | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
| 1200x10000 | 3-5 | 3-8 | <=700 | 7.5 | 1.8-5 | 14.5 |
| 1200x12000 | 3-5 | 3-8 | <=700 | 11 | 2-6 | 14.8 |
| 1500x12000 | 3-5 | 2-6 | <=800 | 15 | 3.5-9 | 17.8 |
| 1800x12000 | 3-5 | 2-6 | <=800 | 18 | 5-12 | 25 |
| 2200x12000 | 3-5 | 1.5-6 | <=800 | 18.5 | 6-15 | 33 |
| 2200x18000 | 3-5 | 1.5-6 | <=800 | 22 | 10-18 | 53.8 |
| 2200x20000 | 3-5 | 1.5-6 | <=800 | 30 | 12-20 | 56 |
| 2400x20000 | 3-5 | 1.5-5 | <=800 | 37 | 18-30 | 60 |
| 3000x20000 | 3-5 | 1.5-5 | <=800 | 55 | 25-35 | 78 |
| 3000x25000 | 3-5 | 1.5-5 | <=800 | 75 | 32-40 | 104.9 |
Working Principle of Rotary Drum Dryer
Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator, materials enter the barrel installed with slope to horizontal line from the higher side, and hot air enters the barrel from the lower side, and then materials and hot air mix together. Materials go to the lower side by gravity when the barrel is rotating. Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely, which is designed to improve the producing efficiency of rotary dryer.
Our factory workshop
After-sale Service
*1 year warranty ,if the wood pellet machine break is by quality detect not personal reason or natural disaster.
*Engineer installation abroad and teach you to master the skill to produce wood pellet.
*Supply spare parts with favorable price all the machine life time.
Contact Information
Welcome to know more about our rotary drum dryer.
