Packaging & Shipping
1.Main machinery in container;
2.Spare parts in Wooden or steel box;
3.Oversized parts in nude packing;
4.Delivery time: 15-60 days after confirming the order.
Company Information
Zibo Qi Jie Machinery Equipment Co., Ltd is a research platform, which is supported by the Institute of materials science and engineering, University of Jinan. Companies adhering to the "science and technology to create the core competitiveness of" business philosophy, focusing on the latest technology industry, the integration of interdisciplinary cutting-edge technology, to provide comprehensive renovation technology for the upgrading of traditional industries, to build the core competitiveness of enterprises.
Company's existing staff of more than 30 people, senior technical staff of more than 50%, the company's main business is:
1 non-metallic abrasive body
2 cement plant, grinding station project
3 modernization of the production line of lime kiln
4 import and export of goods and overseas projects

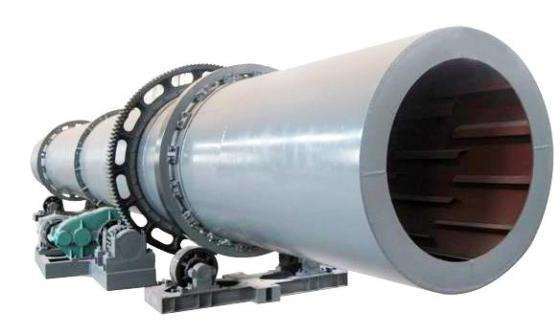

Rotary drum dryer is the most common and widely used drying equipment in mining equipment. Rotary dryers are suitable for drying metal and nonmetal minerals, such as magnetic, gravity, floating concentrate, clay in cement industry and slime of coal industry. Rotary drum dryer is characterized by high productivity and easy operation.
Working principle
1, when the dryer is working, with the rotation of the cylinder material by gravity to run to the bottom of the end, wet materials in the cylinder in the process of moving forward, directly or indirectly get the load of the body, so that wet materials dry
2, then in the output end by the belt conveyor or screw conveyor, the heat body after the dryer, the general need to cyclone dust catcher in the gas with the material captured down, the heat body is generally divided into hot air, flue gas and so on,
3, if you need to further reduce the dust content, but also through the bag-type dust catcher or wet dust remover after discharge.
Structure composition
1, cylinder body, 2, front roller ring, 3, rear roller ring, 4, gear, 5,Blocking roller (small dryer is not applicable), 6, Drag roller, 7, pinion, 8, discharging part, 9, Yang Board, 10, Reducer, 11, motor, 12, hot Air Road, 13, feed chute, 14, furnace body and other components, In addition, according to user needs to design gas occurrence furnace, combustion chamber or supporting hoist, belt conveyor, quantitative feeder, Cyclone dust collector, fan, etc.
Characteristics
1. drum drying mechanization, high production capacity, continuous operation.
2. the structure is fine and simple, the material runs smoothly through the cylinder resistance, and the operation is convenient.
3. less failure, low maintenance cost, low power consumption.
4. wide range of application, good uniformity of product drying.
5. the drying temperature is high, the drying intensity is big, the use cost is low
Applicable scope
[chemical industry]: ammonium sulfate, sulfur alkali, safety powder, ammonium nitrate, urea, oxalic acid, potassium dichromate, polyvinyl chloride, nitric acid phosphate fertilizer, calcium magnesium phosphate fertilizer, compound fertilizer.
[food] industry: glucose, salt, sugar, vitamins, malted milk, strong sugar granules
[mineral products]: talc, bentonite, titanium concentrate, coal, manganese ore, pyrite, limestone, peat
[other]: iron powder, flat soybean, waste abrasive, match bar, sawdust, distiller's grains
Technical parameter
Remarks
The above model is the product data, the user can order special specification equipment according to the material category, special requirements, production and other conditions.
1.Main machinery in container;
2.Spare parts in Wooden or steel box;
3.Oversized parts in nude packing;
4.Delivery time: 15-60 days after confirming the order.
Company Information
Zibo Qi Jie Machinery Equipment Co., Ltd is a research platform, which is supported by the Institute of materials science and engineering, University of Jinan. Companies adhering to the "science and technology to create the core competitiveness of" business philosophy, focusing on the latest technology industry, the integration of interdisciplinary cutting-edge technology, to provide comprehensive renovation technology for the upgrading of traditional industries, to build the core competitiveness of enterprises.
Company's existing staff of more than 30 people, senior technical staff of more than 50%, the company's main business is:
1 non-metallic abrasive body
2 cement plant, grinding station project
3 modernization of the production line of lime kiln
4 import and export of goods and overseas projects
Rotary drum dryer is the most common and widely used drying equipment in mining equipment. Rotary dryers are suitable for drying metal and nonmetal minerals, such as magnetic, gravity, floating concentrate, clay in cement industry and slime of coal industry. Rotary drum dryer is characterized by high productivity and easy operation.
Working principle
1, when the dryer is working, with the rotation of the cylinder material by gravity to run to the bottom of the end, wet materials in the cylinder in the process of moving forward, directly or indirectly get the load of the body, so that wet materials dry
2, then in the output end by the belt conveyor or screw conveyor, the heat body after the dryer, the general need to cyclone dust catcher in the gas with the material captured down, the heat body is generally divided into hot air, flue gas and so on,
3, if you need to further reduce the dust content, but also through the bag-type dust catcher or wet dust remover after discharge.
Structure composition
1, cylinder body, 2, front roller ring, 3, rear roller ring, 4, gear, 5,Blocking roller (small dryer is not applicable), 6, Drag roller, 7, pinion, 8, discharging part, 9, Yang Board, 10, Reducer, 11, motor, 12, hot Air Road, 13, feed chute, 14, furnace body and other components, In addition, according to user needs to design gas occurrence furnace, combustion chamber or supporting hoist, belt conveyor, quantitative feeder, Cyclone dust collector, fan, etc.
Characteristics
1. drum drying mechanization, high production capacity, continuous operation.
2. the structure is fine and simple, the material runs smoothly through the cylinder resistance, and the operation is convenient.
3. less failure, low maintenance cost, low power consumption.
4. wide range of application, good uniformity of product drying.
5. the drying temperature is high, the drying intensity is big, the use cost is low
Applicable scope
[chemical industry]: ammonium sulfate, sulfur alkali, safety powder, ammonium nitrate, urea, oxalic acid, potassium dichromate, polyvinyl chloride, nitric acid phosphate fertilizer, calcium magnesium phosphate fertilizer, compound fertilizer.
[food] industry: glucose, salt, sugar, vitamins, malted milk, strong sugar granules
[mineral products]: talc, bentonite, titanium concentrate, coal, manganese ore, pyrite, limestone, peat
[other]: iron powder, flat soybean, waste abrasive, match bar, sawdust, distiller's grains
Technical parameter
| Specifications (mm) | Inclination (%) | rotation rate (r/min) | Intake temperature (ºC) | power (Kw) | volume(m3) | capacity(t/h) | weight (t) |
| Φ600×6000 | 3-5 | 3-8 | ≤700 | 3 | 1.69 | 0.5-1.5 | 2.9 |
| Φ800×8000 | 3-5 | 3-8 | ≤700 | 4 | 4.01 | 0.8-2.0 | 3.5 |
| Φ800×10000 | 3-5 | 3-8 | ≤700 | 4 | 5.02 | 0.8-2.5 | 4.5 |
| Φ1000×10000 | 3-5 | 3-8 | ≤700 | 5.5 | 7.85 | 1.0-3.5 | 5.6 |
| Φ1200×10000 | 3-5 | 3-8 | ≤700 | 7.5 | 11.30 | 1.8-5 | 14.5 |
| Φ1200×12000 | 3-5 | 3-8 | ≤700 | 11 | 13.56 | 2-6 | 14.8 |
| Φ1500×12000 | 3-5 | 2-6 | ≤800 | 15 | 21.19 | 3.5-9 | 17.8 |
| Φ1800×12000 | 3-5 | 2-6 | ≤800 | 18 | 30.52 | 5-12 | 25 |
| Φ2200×12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 45.59 | 6-15 | 33 |
| Φ2200×18000 | 3-5 | 1.5-6 | ≤800 | 22 | 68.38 | 10-18 | 53.8 |
| Φ2200×20000 | 3-5 | 1.5-6 | ≤800 | 30 | 75.98 | 12-20 | 56 |
| Φ2400×20000 | 3-5 | 1.5-5 | ≤800 | 37 | 90.43 | 18-30 | 60 |
| Φ3000×20000 | 3-5 | 1.5-5 | ≤800 | 55 | 141.3 | 25-35 | 78 |
| Φ3000×25000 | 3-5 | 1.5-5 | ≤800 | 75 | 176.6 | 32-40 | 104.9 |
The above model is the product data, the user can order special specification equipment according to the material category, special requirements, production and other conditions.
FAQ:
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.And we will bear all of your cost after you landing on China.
Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems,and if necessary,we will send our special team to your place.
Q: Do you provide equipment operation training?
A: Yes. We will surely send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Can you test our samples?
A: Yes.of course. You can send your samples to us for test and analysis.
