Packaging & Shipping
1.Main machinery in container;
2.Spare parts in Wooden or steel box;
3.Oversized parts in nude packing;
4.Delivery time: 15-60 days after confirming the order.
Company Information
Zibo Qi Jie Machinery Equipment Co., Ltd is a research platform, which is supported by the Institute of materials science and engineering, University of Jinan. Companies adhering to the "science and technology to create the core competitiveness of" business philosophy, focusing on the latest technology industry, the integration of interdisciplinary cutting-edge technology, to provide comprehensive renovation technology for the upgrading of traditional industries, to build the core competitiveness of enterprises.
Company's existing staff of more than 30 people, senior technical staff of more than 50%, the company's main business is:
1 non-metallic abrasive body
2 cement plant, grinding station project
3 modernization of the production line of lime kiln
4 import and export of goods and overseas projects

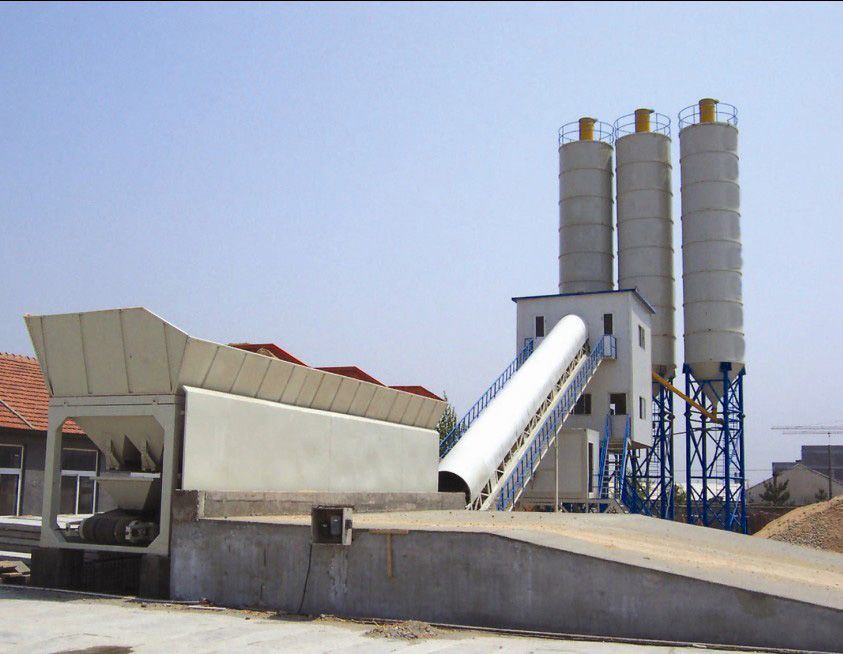

Hzs50 concrete mixing station is a small mixing station product of the company mixing station series, which is composed of the feeding system, batching system, mixing system, electrical control system and steel structure components. The mixing station is widely used and can be applied to small scale engineering construction site, concrete prefabrication plant and commodity concrete factory.
Product features
1. The mixing machine and the aggregate lifting mechanism use the js type double horizontal shaft forced mixer, stirring strength, high efficiency and good quality;
2. Module structure, installation and relocation is very convenient.
3. The aggregate ingredient uses the PLD1600 type batching machine, the metering is accurate;
4. Cement, water and liquid admixtures are measured by electronic scales, and the batching precision is high;
5. The water supply system uses the siphon pump pressure principle, to speed up the water flow rate, spray uniform, the structural principle has been granted the national patent.
6. The shaft end seal is sealed with labyrinth and floating seal ring. The unique shaft end air pressure seal protection device, in the mixer original protection with more than one heavy protection, make the mixing shaft more durable and reliable.
Product parameter
Remarks
The above model is the product data, the user can order special specification equipment according to the material category, special requirements, production and other conditio
Product composition
1.Main machinery in container;
2.Spare parts in Wooden or steel box;
3.Oversized parts in nude packing;
4.Delivery time: 15-60 days after confirming the order.
Company Information
Zibo Qi Jie Machinery Equipment Co., Ltd is a research platform, which is supported by the Institute of materials science and engineering, University of Jinan. Companies adhering to the "science and technology to create the core competitiveness of" business philosophy, focusing on the latest technology industry, the integration of interdisciplinary cutting-edge technology, to provide comprehensive renovation technology for the upgrading of traditional industries, to build the core competitiveness of enterprises.
Company's existing staff of more than 30 people, senior technical staff of more than 50%, the company's main business is:
1 non-metallic abrasive body
2 cement plant, grinding station project
3 modernization of the production line of lime kiln
4 import and export of goods and overseas projects
Hzs50 concrete mixing station is a small mixing station product of the company mixing station series, which is composed of the feeding system, batching system, mixing system, electrical control system and steel structure components. The mixing station is widely used and can be applied to small scale engineering construction site, concrete prefabrication plant and commodity concrete factory.
Product features
1. The mixing machine and the aggregate lifting mechanism use the js type double horizontal shaft forced mixer, stirring strength, high efficiency and good quality;
2. Module structure, installation and relocation is very convenient.
3. The aggregate ingredient uses the PLD1600 type batching machine, the metering is accurate;
4. Cement, water and liquid admixtures are measured by electronic scales, and the batching precision is high;
5. The water supply system uses the siphon pump pressure principle, to speed up the water flow rate, spray uniform, the structural principle has been granted the national patent.
6. The shaft end seal is sealed with labyrinth and floating seal ring. The unique shaft end air pressure seal protection device, in the mixer original protection with more than one heavy protection, make the mixing shaft more durable and reliable.
Product parameter
| Model | HZS35 | HZS50 | HZS75 | HZS120 | ||
| Productivity | m3/h | 35 | 50 | 75 | 120 | |
| Nominal capacity of mixer | m3 | 0.75 | 1 | 1.5 | 2 | |
| Aggregate number and volume of aggregate | m3 | 3×2 | 3×7 | 3×12 | 4×15 | |
| Maximum weighing value | Aggergate | kg | 2000 | 3000 | 4000 | 4×2000 |
| Cement | kg | 400 | 600 | 1000 | 1200 | |
| Fly ash | kg | - | - | - | 400 | |
| Water | kg | 250 | 250 | 400 | 500 | |
| Admixture | kg | 40 | 40 | 40 | 50 | |
| Measurement accuracy | Aggergate | % | ±2 | |||
| Powder | % | ±1 | ||||
| water | % | ±1 | ||||
| Admixture | % | ±1 | ||||
| Unloading height | 3.8m | 3.8m | 3.8m | 4.1m |
Remarks
The above model is the product data, the user can order special specification equipment according to the material category, special requirements, production and other conditio
Product composition
| Storage system | Cement silo is used for batching equipment of hzs concrete mixing station. It has the characteristics of waterproof, moisture - proof, prevention of cement loss and environmental pollution, small area, long life and low cost. |  |
| delivery system | The spiral conveyer adopts the high quality steel pipe rigidity good; Double pitch blade, reduce the material transportation compression degree; High quality reduction box, heavy design, big torque, low noise; The optional universal ball connection makes the installation adjustment convenient; With excellent quality of middle hanging bearing and tail bearing, and easy to install; |  |
| Control system | Control system is the center of hzs concrete mixing station, the whole machine adopts computer control, both automatic control and manual operation, easy to operate and easy to master. Dynamic panel display, can clearly understand the operation of the components, and can store and print report data. |  |
| Measuring system | Sensor, accurate weighing, rapid response, is to achieve automatic detection and control of the first link. |  |
| Pneumatic system | Pneumatic system is the executive device action of HZS50 concrete mixing station, it is according to the industry issued by the microcomputer instruction timely switch door, the cement bin cement arch breaking, the additives to ensure accurate measurement of various blowing stirring, aggregate, cement, additives, and complete the task finished material loading. |  |
FAQ:
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.And we will bear all of your cost after you landing on China.
Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems,and if necessary,we will send our special team to your place.
Q: Do you provide equipment operation training?
A: Yes. We will surely send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Can you test our samples?
A: Yes.of course. You can send your samples to us for test and analysis.
