The A Frame System Layer Battery System was certified by ISO9001:2008,it has scientific design, efficient working efficiency,strong and solid structure, thorough installation service.
Technology Descriptions:
Cage Frame System Materials: Q235A Steel for the Cages Frame Systems.
Surface Treatment: Hot dipped Galvanization by professional Hot Galvanization Production Line.
Feed Troughs: made of PVC and different Dimension design according clients' needs.
Or made by 1.0--1.20mm hot galvanized steel sheets with round edge for convenient cleaning, solid and durable design.

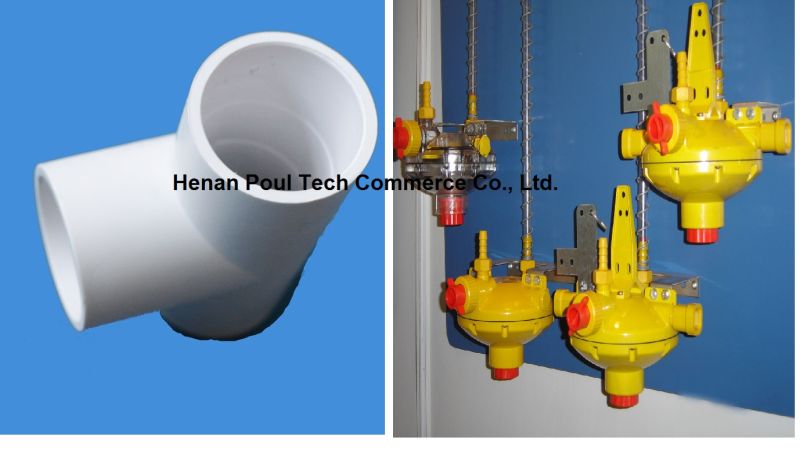

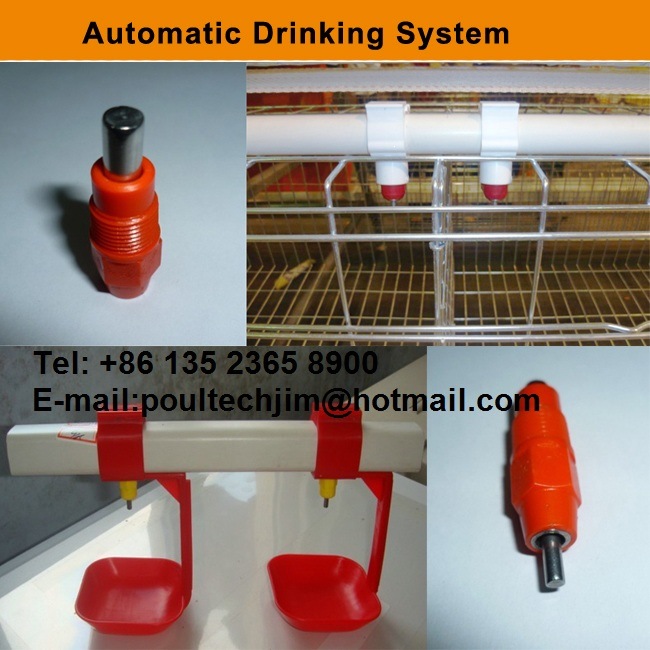

Automatic Drinking System:
The Drinking System can be automatic nipple drinking line and manual feeders and drinkers for first two weeks while the pullet are too small to get water nipple drinkers;
The nipple drinkers are stainless steel ones with round or square pipes, it can be fitted with water cups under the nipple;
The pipes can be adjusted in higher level as the pullet growing bigger and bigger day by day because the grid meshes has empty design in the middle place to adjust the pipes higher.

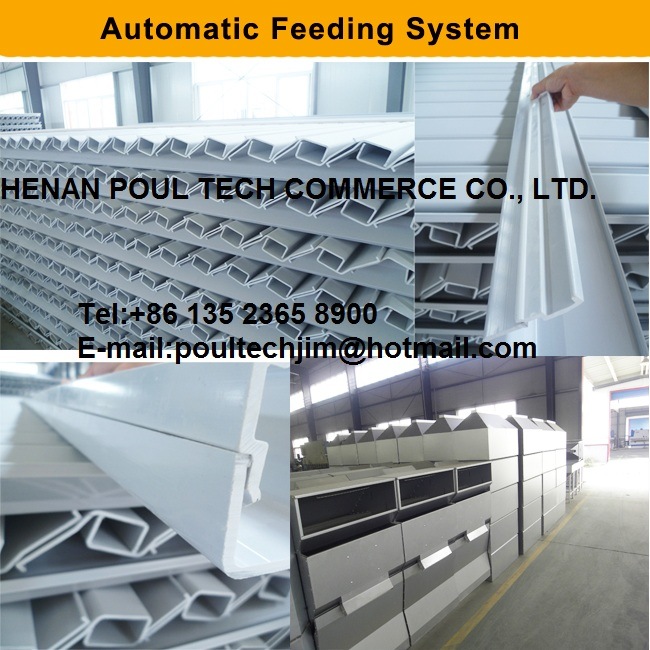

Automatic Feeding System:
The hopper thickness is 2.2mm,and the Volume is upon the Birds quantity of each row. It's walking stable.
The Layer cage Specification
Item | Weight | Cell/Size(cm) | Birds/Cell | Total Width | Total Height | Guano Width |
A390 | 44kg | 5/195*35*38 | 3 | 2.15m | 1.5m | 1.8m |
A4120 | 58kg | 5/195*35*38 | 3 | 2.4m | 1.9m | 2m |
A3120 | 58kg | 5/215*42*41 | 4 | 2.3m | 1.6m | 2m |
A3150 | 66kg | 5/215*50*43 | 5 | 2.3m | 1.7m | 2m |
Layer Cage

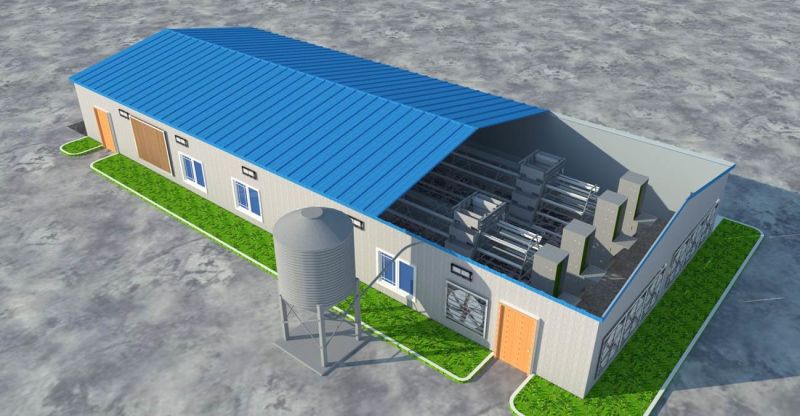

3D effect picture of full automatic layer cage
