PRIMARY PARAMETERS

Model NO.
KS
Power Source
Electric
Automatic Grade
Automatic
Customized
Customized
Materials
304 Stainless Steel
Weight
2000kg
Name
Potato Chips Machine
Inverter
Delta Inverter
Electric Parts
Chint
Transport Package
Wooden Case
Origin
Shandong China
Certification
CE, ISO9001
Process
Thermal Processing
Application
Ice Cream, Candy, Chocolate, Popcorn, Chips, Biscuit, Donut
Condition
New
Applicationd
Chips
Warranty
1 Year
Working
Automatic
Size
18000*2000*4000mm
Trademark
KS
Specification
40000*5000*3000mm
HS Code
8438800000

DETAIL DESCRIPTION

Automatic potato chips making machine  potato chips plant cost
Automatic Potato Chips Making Machine Potato Chips Plant Cost

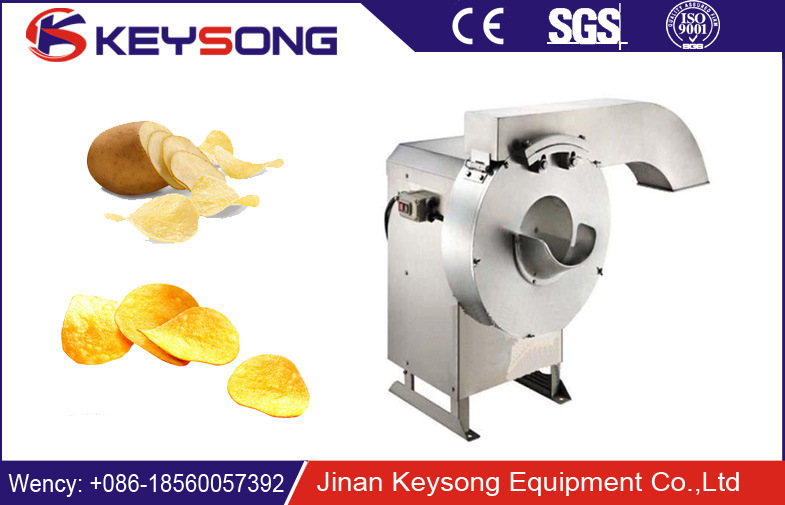

Introductin of electric potato chip slicer

1.Themachine is specially designed for stem and root vegetables and fruits into slices with high efficiency and good qualitysuch as potatotarocarrotsweet potatojicama, lotus, onion, pachyrhizus and so on. It is the most professinal slicing machine in china.

Advantages of electric potato chip slicer

1. It is the professional slicing machine for Potato chips.

2. The thickness can be reach 1.4-4mm.

3. Hnad to push the pushrod to get the high quality slice.

4.The thickness of the slice can be same and  well-proportioned. It can satisy the high requirement of the potato slice.

5. It is widely use in KFC,  Mcdonald's, restaurants, hotels, mess hall and other vegetable processing
units.

1. Potato cleaning and peeling machine  First connect the machine to the power, open water pipes, and then Add potatoes to the hopper, about 3/5minutes later, move the  baffle at the expect mouth , potatoes will be out automaticall
2. Potato chips machine  Switch on the power, put the peeled clean potatoes into the feed continuously, then they will be cut into chips automatically.
3. Blanching machine  Shaped chips need to be rinsed or blanched, you can take the process in accordance with the choice  of your treatment.
4. Potato dewaterer machine  Put the rinsed chips into the dewaterer for about two minutes ,then they can be fried
Automatic Potato Chips Making Machine Potato Chips Plant Cost
5. Potato frying machine  heat the oil to 170 degrees Celsius, then put the dehydrated potato chips into the frying machine for about 1.5 minutes, french-fries about 5 minutes
6. Potato de-oiling machine
De-oiling machine: put the fried chips into the De  oiling machine, then the chips will be ok for one minutes
7. Potato seasoning machine
put the de-oiled chips into the seasoning machine , adding spices according to the tastes of your
choice, switch on the power, spices will be evenly attached to the French fries on potato chips.


Automatic Potato Chips Making Machine Potato Chips Plant Cost

The technical parameters of the potato chips product line

The capacity:                                250kg/h

Oil fried temperature:                  170-1900C

Diesel fired boiler

 Heating source:                          200x10³kcal

Diesel consumption:                    20-30kg/h

Compressed air pressure:           0.6Mpa

Floor load:                                  1200kg/m2

Workshp size:                             40m*10m* 4.5m(except the packing line)

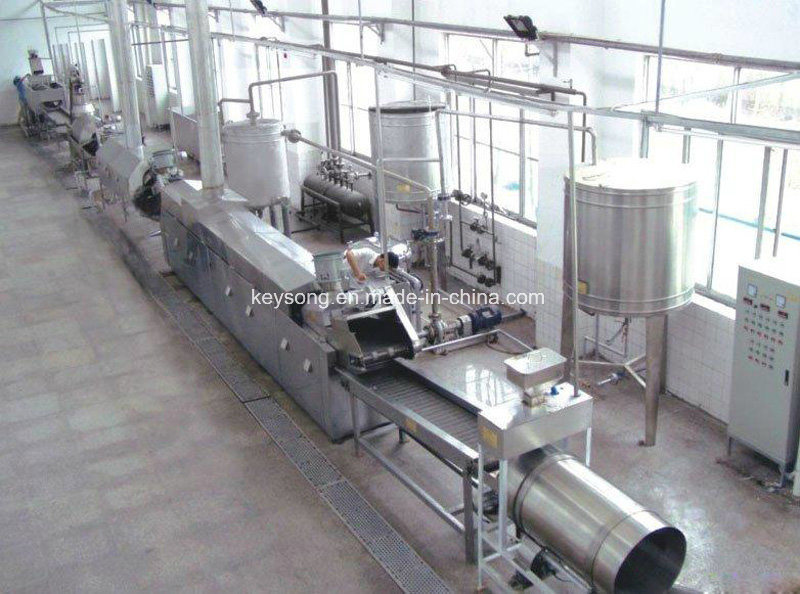

The layout of the potato chips product line
1. The potato chips machine is especially designed for processing potatoes into delicious potato chips,potato crips or frech fries and packing ot potato chips with excellent quality and less fat pickup.
2. Raw materials: fresh potatoes, also can be used for other root vegetables, such as sweet potatoes, purple sweet potato, taro, cassava, etc.
3. Final products: fried chips flat and wave shape),  frech fries, also cam be  adjusted to produce  frozen frech fries,  with packing machine to pack into bags.

Automatic Potato Chips Making Machine Potato Chips Plant Cost
Automatic Potato Chips Making Machine Potato Chips Plant Cost
Our Services:
1) Free samples engraving and cutting.
2) Two years warranty.
3) Free technical training.
4) Installation and commission support.
5) 24 hours on-line service.
6) Telephone service.
7) Prompt delivery.


Packingand shipping:
      Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottomWith this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.
Automatic Potato Chips Making Machine Potato Chips Plant Cost
FAQ:
1.Are you a factory or trading company?
We are the manufacturer and we have morethan10 years factory experience.As only the machine made by ourself,quality can be trusted,and most important thing is we can do better service after sales.we know how to fix the problem in each parts easliy.so welcome to visit to our factory
2. How long is the delivery time?
For standard machines, it would be 7-10 days; For non  standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3. How should I pay for my order?what is the procession of this purchase?
 You can do 30% prepayment at first, then we will start to make production.when the machine is ready , we will take pictures to you, and then you can do the balance.after we got your payment. We will send the machine to you.
4. How about your service after sales? Can your engineer speak fluent english?
We offer the service from you got the machine,including how to install the machine, how to use machine. how to let machine work.and so on. usually we will teach you how to do by emailor by skype.our engineer has many years of experience for cnc machine service.he can speak very goodenglish,so he can slove the problem in short time.
5. How about the documents after shipment?
Aftershipment,well send all original documents to you by DHL, including Packing List,Commercial Invoice, B/L, and other certificates as required by client.
