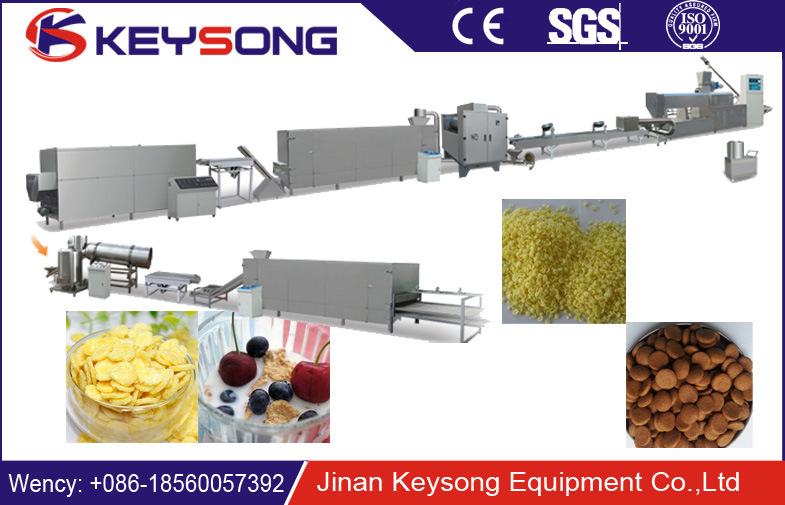

Corn Flakes Breakfast Cereals Making Machine Production line
1. Descriptiom:Corn flakes machine can produce breakfast cereal which is one kind of nutritional convenient food which is produced by this process line, using grist as basic material, with different shapes, such as, granule, flake, animal, etc. One outstanding characteristic of the breakfast cereal is that it contains abundant compound carbohydrates and dietary fiber, strengthens lots of microelements, such as vitamin and mineral, and also can be added with cocoa and sugar, like honey and maltose. It can be drunk directly after mixed into coffee, milk, yoghourt or functional drink. Children can eat breakfast cereal as sweet crispy snack.
breakfast cereal manufactured by twin-screw extruder or single screw extruder through the treatment of flakes of grain, served with milk and marshmallows, were a very popular food among the families.
Corn flakes (Breakfast Cereals) is the most popular breakfast cereals in the world. It is a perfect cereal because of the crispy taste. Our corn flakes production lines are based on extrusion technology which is so widely used in food industry.
a. Raw Materials:
This Production line adopts corn flour as the main raw material and some other raw material such as:rice, wheat, oat, barley etc as ingredients.
b. Products:
This line can be used to produce baby food,baby rice, sesame paste,FBF,CSB and samaposha , walnut paste-type products,etc
c. Capacity:
120-150kg/h,160-240kg/h, 300-500kg/h.

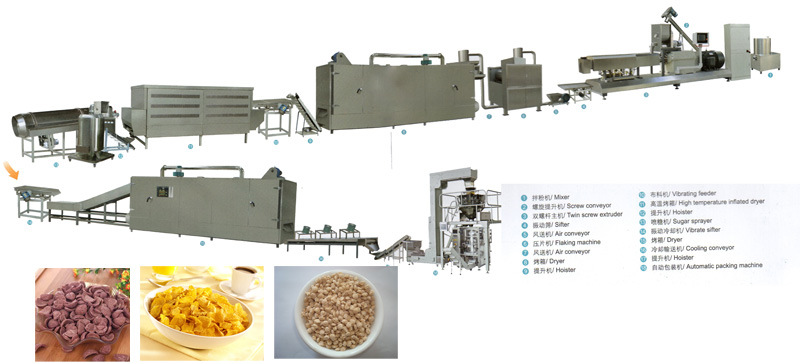

d. Flow chart:
e. Voltage:
In China: Three phases: 380V/50Hz, Single phase: 220V/50Hz. We can make it according to customers' Local voltage according to different countries.
f. Machines Materials
All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function
g. Technical Parameters
| Model | Installed Capacity | Actual Consumption | Main Power | Throughput | Dimension |
| KS65 | 34kw | 28kw | 22kw | 120-150kg/h | 2400*1200*1800 |
| KS70 | 42kw | 30kw | 30kw | 160-200kg/h | 2600*1200*1800 |
| KS85 | 92kw | 75kw | 75kw | 400-500kg/h | 4500*1600*2000 |
| KS90 | 135kw | 91kw | 75kw | 600-900kg/h | 4500*2000*2000 |
| KS100 | 55kw | 30kw | 38kw | 80-100kg/h | 3200*1500*2000 |
a. The screws are made by alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
b. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
c. The gearbox has automatic lubrication function, with extends gear life.
d. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
e. SIEMENS(CHINA) brands electronic parts used in the controller box, make sure the extrusion process perfect.
f. Main Motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.
Our Services:
#. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
#. Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
#. 18 months guarantee of the whole machine.
#. Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
#. Lifetime maintenance free of charge.
#. We will provide the consumable parts at an agency price when you need replacement.
#. Machine has been adjusted before delivery.
#. Our staff can be sent to your company to install or adjust if necessary
FAQ:
1. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL/TNT, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2. How long is the delivery time?
For standard machines, it would be20-30 days; For non-standard machines and customized machines according to client's specific requirements, it would be 30-45 days.
3. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4. How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel BeltSave space as much as possible for container loading
Packaging and shipping:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottomWith this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.
