China Good Quality Gypsum Board Manufacturing Plant

                                                SBM Beneficiation Equipments Our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry.   China Good Quality Gypsum Board

Technical Feature

  • Shanghai, China
  • 1--1000 T/H
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • CE, ISO
  • New
  • Gypsum Board Production Line
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.
2 Million
Product Type
Gypsum Board Production Line
The Machines Classification
Gypsum Board Manufacturing Plant
Color
Yellow Iron Grey
After Sales Service
The Whole Time
Spare Parts Supply
Will Supply Any Time
Other Application
Mining,Quarry,Chemical Industry and Construction
Other Certification
Ce
Test&Installation
Professional Engineer Assigned
Delivery Detail
30 Days
Type
General
Details
More Information and Price List Please Send Me
Trademark
SBM
Transport Package
Standard Packing
Specification
based on model
Origin
China
HS Code
73161506

DETAIL DESCRIPTION

                                                SBM Beneficiation Equipments
Our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry.





China Good Quality Gypsum Board Manufacturing Plant :

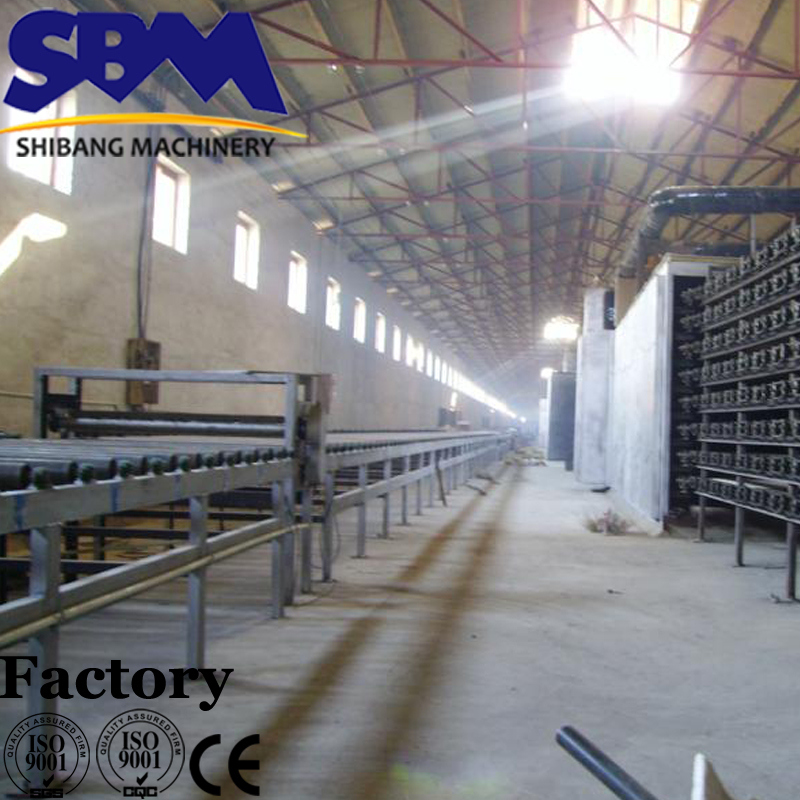

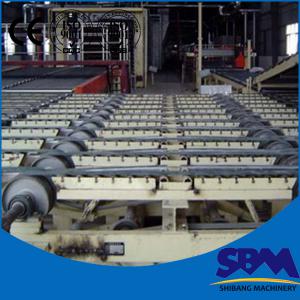

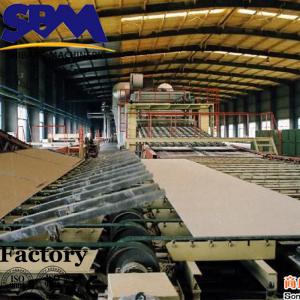

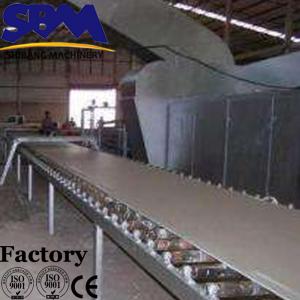

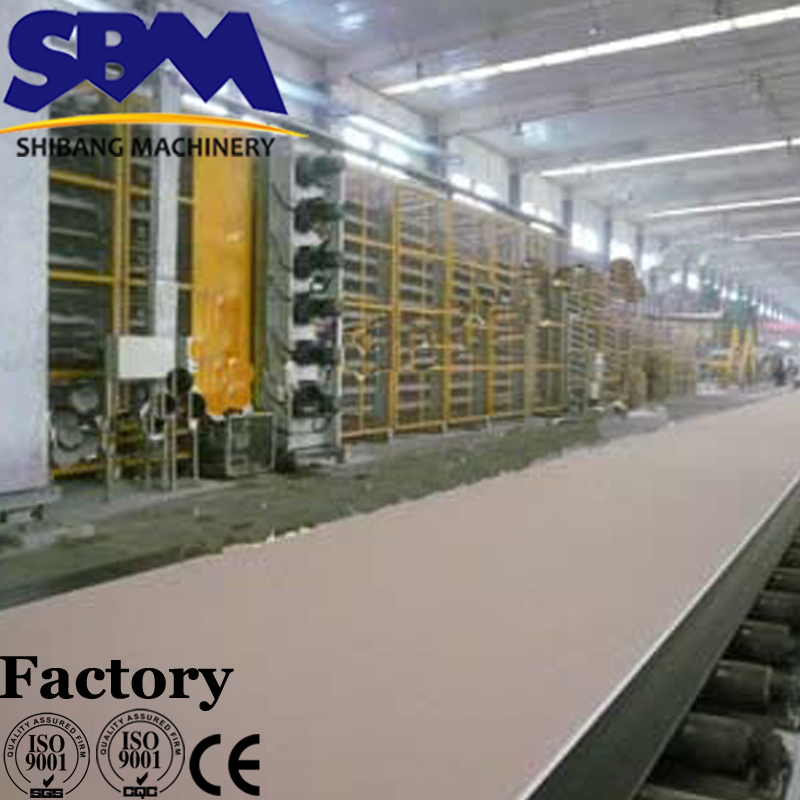

Gypsum Board Manufacturing Plant is composed of raw material supply system, the system board systems, conveyor systems, horizontal systems, drying systems, the panel system, cutting systems, and other components used in the production of gypsum board special equipment .


China Good Quality Gypsum Board Manufacturing Plant


China Good Quality Gypsum Board Manufacturing Plant Characteristic :

1, LB-4 hydraulic automatic Walking gypsum wallboard machine combines the advantages of similar equipment at home and abroad, to solve the traditional gypsum wallboard heavy weight, low strength, water moisture and poor performance shortcomings, the overall performance of the device to the leading domestic level ;

2, the device core components made of imported materials production, high-quality, small footprint, easy operation, high production efficiency;
3, good flatness products, small error, resistance to deformation, the length is adjustable, durable;
4, a device can produce 60mm, 90mm, 120mm, 150mm thickness and other specifications of the gypsum board;
5, the device forming two gypsum wallboard, raw measurement automation to ensure quality and accuracy of wallboard;
6, using a hydraulic opening and closing of the mold, core pipe line of new silicone materials, pressure expansion mode design, the pumping vascular resistance reduced to zero, forming sheet metal damage rate is reduced to zero. Wear tube butted synchronization is complete, the core tube without washing;
7, gypsum board machine key components, parts are used internationally renowned brand products, core components have been fatigue endurance test and reliability test equipment to ensure stable operation, the failure rate to a minimum.



China Good Quality Gypsum Board Manufacturing Plant Application:

Gypsum Board Manufacturing Plant--- Features a small investment in equipment, products, high-profit, can recover the costs in the short term, non-polluting, recyclable waste. Is a national advocate for environmental projects. The production process is easy to learn, extensive source of raw materials, is an ideal investment in construction projects selection.



China Good Quality Gypsum Board Manufacturing Plant Specifications:


Gypsum board production line specifications
Annual capacity(m2) Daycapacity(sheet)
 1200*2400*9mm
Drier layerControl
2 Million20004PLC
3-4Million3000-40006PLC
5-8Million5000-80008DCS computer

control
10-15Million10000-1500010DCS computer

control
20-50Million20000-5000012DCS computer



China Good Quality Gypsum Board Manufacturing Plant


China Good Quality Gypsum Board Manufacturing Plant Working Principle :

Gypsum Board Manufacturing Plant

Ingredients section:
Preparation:
Modified starch, retarding machine, pulp, water-reducing agent, into the water after the quantitative measurement hydrapulper stirred into a raw pulp slurry is then pumped into the reserve tank spare;
Foaming agent and water in proportion to stir into the foaming agent preparation tank, pumped into the foaming agent reserve tank (with a heating device, maintained above 35 °C) backup;
Coagulant and gypsum powder raw materials to enhance the delivery device into the hopper back;
Ingredients:
Reserve slurry tank slurry metering pump into the mixer using after using dynamic foaming device foam blowing agent into the mixer, coagulant and gypsum powder using automatic metering belt, said metered into the mixer, then all primary excipients in a blender mixed into qualified gypsum slurry.
Description: All the main materials are added encompasses automatic control system, with different line speed automatically adjust to accommodate large-scale, high-speed requirements

Production of raw materials :
Building, gypsum, phosphogypsum, citric acid plaster, gypsum and other fluorine.

Plasterboard knowledge:

Gypsum Board Manufacturing Plant--- Plasterboard is a building material made of gypsum as the main raw material. It is a light weight, high strength, thin, easy processing and noise insulation and fireproofing materials, such as better performance, is currently one of the new focus on the development of lightweight board. Plasterboard has been widely used in residential, office buildings, shops, hotels and industrial plants and other buildings within the wall, the wall cladding panel (instead of wall plaster layer), ceilings, acoustic panels, floor boards and various grassroots kinds of decorative panels.
Plasterboard (gypsum board is divided into ordinary (common), fiber gypsum board, gypsum board decorative "interpretation") which gypsum as the main material, adding fiber, adhesives, modifiers, after mixing pressing, drying a. With fire, noise insulation, lightweight, high strength, shrinkage characteristics and good stability, non-aging, anti-moth, available nails, sawing, planing, sticky methods such as construction.



Project Case:

Gypsum processing plant

In gypsum processing plant, crushing, grinding gypsum into powder is the important step.
Machine used for Gypsum mineral processing plant
In this gypsum powder making plant, the machinery used is crushing machine, hoist, electromagnetic feeder, grinding machine, fluidized bed furnace( gypsum calcining equipment ), bunker, belt conveyor and dust collector.
Crushing machine used in gypsum crushing process
The crushing machine used in gypsum powder making is hammer crusher, jaw crusher and cone crusher. They can crush gypsum rocks into particles.

Jaw crusher for gypsum: Jaw crusher is used as primary gypsum crusher in gypsum primary crushing process. It can crush gypsum into small particles less than 8 cm. SBM Jaw Crushers are crushing without rubbing Minimum dust Oil lubrication, devise having Oil/Grease lubrication system. Our jaw crushers are designed for long life service with minimum maintenance for hard, tough, abrasive material and overload high capacity.
Cone crusher and hammer crusher is the gypsum secondary crushing equipment in processing plant. These gypsum crushing machinery can crush gypsum into small pieces less than 2cm. Cone crusher is designed without rubbing Minimum dust Oil lubrication, Law wear parts Gap adjustment and overload protection High capacity, High operational eliability Long service and life time Easy replacement of wear and spare part Wide range of application.
Hammer crusher
Hammer crusher is usually used before grinding plant. It is mainly used to crush large stones or rocks into smaller particles for grinding powder production.
Gypsum mill used in grinding process
The grinding mill used in gypsum processing plant usually is the raymond mill. Raymond mill usually has three models: 3R2714, 4R3216, 5R4119. The finished size can be upto 0.044mm, and can be adjusted from 100 mesh to 325 mesh. Other grinding mill is also used such as ultrafine mill, trapezium mill.
Gypsum processing equipment manufacturer
SBM is a famous mining and construction equipment manufacturer in China, and can design and supply the complete gypsum mining and processing equipments for your gypsum powder production line such as gypsum crusher machine and grinding mill in USA, Iran, Canda, Spain, Mexico, Thailand, Japan, France, Australia, India, Egypt, Italy, Poland, Ethiopia.
The gypsum powder production line
The gypsum powder production line includes four process flow: crushing, grinding, calcine, storing and feeding.
By using loader to feed the gypsum rock to the raw material storage bin. And then it will be transferred to the crusher to be crushed. Gypsum rocks is crushed into particles less than 30 mm by gypsum crusher, Then gypsum particles is feeded into raymond mill for grinding into partical size by electromagnetic feeder. The gypsum powder that meet the requirement of size is transported into fluidized bed furnace for burning. When heating and calcining the dehydrate gypsum and chemical gypsum (ardealite, desulphurization plaster, fluorgypsum), the dehydrate gypsum was decomposed, we get the semi-hydrated gypsum, i. E., plaster of Paris.
Dry gypsum process flow: plaster stone go through primary crushing process using jaw crusher, the size is less than 8 cm, the go through secondary crushing process, in this process, cone crusher is used as fine crusher, then the sie is less than 2 cm. After calcination, the calcined gypsum is grinded into the powder with 200-325 mesh by gypsum mill.



Company Information

Shibang Industry & Technology Group Co., Ltd. is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.

The head office of SBM is in Shanghai- the international financial centre. Here we have modern production base of 2.3 million square meters, professional R&D institution and technology team, which make us world-class company. Here all SBM machines are designed produced, assembled and texted according to the ISO9001:2008.
