Description
Solids and Liquid Separator
This equipment can effectively reduce the suspended matter concentration in the wastewater, so as to reduce the treatment load in the subsequent procedure. Meanwhile, it also can recycle useful substances in the wastewater.
How it works

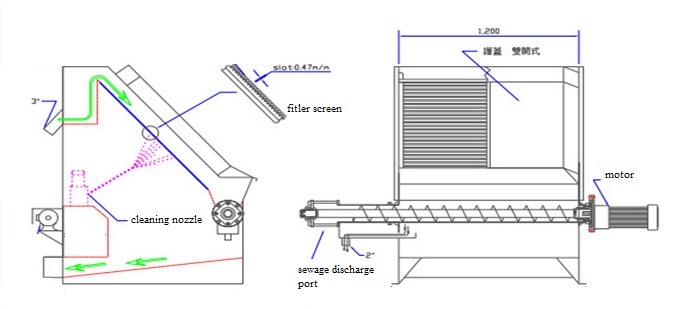

The main body of the solids and liquid separator(spiral type) is the wedge wire stainless steel sieve bend or flat screen. When the waste water is distributed evenly on the inclined screen, the solid will be intercepted and the filtered water will flow out thought the slot of the screen. At the same time, the solid will be pushed to the bottom of the screen and discharged out by the hydraulic power. The reason that the solid will be intercepted is that the surface of the screen has small and smooth slot and the back side has large slot.
After solid-liquid separation, the solid will be transferred to the spiral press which can dehydrate the solid. After dehydration, the water content can be lowered to 40%.
Specification
Packaging
1. All the products are packed in seaworthy wooden cases.
2. Any special requirement for package, please feel free to tell us.
Shipping
JX Filtration offer any delivery method for different quantity.
------Professional manufacture of filter and filter element since 2004!
------Superior quality products with reasonable price!
------Best pre-sale and after-sale service!
Description
Solids and Liquid Separator
How it works
The main body of the solids and liquid separator(spiral type) is the wedge wire stainless steel sieve bend or flat screen. When the waste water is distributed evenly on the inclined screen, the solid will be intercepted and the filtered water will flow out thought the slot of the screen. At the same time, the solid will be pushed to the bottom of the screen and discharged out by the hydraulic power. The reason that the solid will be intercepted is that the surface of the screen has small and smooth slot and the back side has large slot.
After solid-liquid separation, the solid will be transferred to the spiral press which can dehydrate the solid. After dehydration, the water content can be lowered to 40%.
Specification
| JXF-1Z(70) | JXF-1Z (120) | JXF-1Z (150) |
| Treatment capacity: 10-20ton Power: submersible pump:1.5kw, lift: 6m press: 2.2kw Screen cleaning machine: 25kw Motor:550w Agitator: 2.2kw | Treatment capacity: 20-40ton Power: submersible pump:2.2kw, lift: 8m press: 3.0kw Screen cleaning machine: 50kw Motor: 750w Agitator: 2.2kw | Treatment capacity: 30-50ton Power: submersible pump:3.0kw, lift: 8m press: 4.0kw Screen cleaning machine: 50kw Motor: 750w Agitator: 2.2kw |
| Remark: Some solids will precipitate at the bottom of the water tank and cause high concentration, so this machine must be equipped with agitator to even the concentration or the screen can't load that much. |
Advantage
- Using water gravity for operation, no energy consumption
- Using water filter net technology and with 0.3-0.5mm slot, this equipment has high treatment capacity and the most thoroughly filtration.
- Uneasy blocking and easy cleaning
- Made of stainless steel, this machine has high mechanical strength, long using life and no distortion features.
- Auto-detection, the machine will be started when reaching the water level. Full automatic of filtering, pressing and screen cleaning.
- Gear type reverse washing mechanism without any consumption.
- To remove the solid substance such as suspended matter, floater and precipitate in the waste water treatment of slaughter, leather, paper, sugar, wine-making, food processing, textile, printing and dyeing, petrochemical industry.
- To recycle useful material such as fiber in paper, alcohol, starch and food industry.
- Pretreatment of sludge and channel cleanout.
